Summary of Contents for Geiser One 1BS911
- Page 3 Right Installation Principles ON SITE 78-1/2" 78-1/2" 78-1/2" 60" 60" 52-1/2" tile 52-1/2" 60" tile 82-1/2" tile 30" 30" 22-1/2" 0" 63-7/16" 63-7/16" 52-1/2" 37-1/2" tile 48-7/16" 48-7/16" 45" tile 22-1/2" tile 30" tile 30" 30" 22-1/2" 22-1/2"...
- Page 4 Right Installation Principles ON SITE 71" 71" 71" 60" 60" 45" tile 52-1/2" 52-1/2" tile 75" tile 30" 30" 22-1/2" 0" 56" 56" 30" tile 37-1/2" tile 30" 22-1/2"...
- Page 5 Right Installation Principles ON SITE 63-9/16" 63-9/16" 63-9/16" 52-1/2" 37-1/2" tile 45" tile 67-1/2" tile 30" 30" 22-1/2" 0" 48-7/16" 48-7/16" 22-1/2" tile 30" tile 30" 22-1/2"...
- Page 6 Right Installation Principles ON SITE 56" 56" 56" 30" tile 37-1/2" tile 30" 30" 22-1/2" 60" tile 0" 48-7/16" 48-7/16" 48-7/16" 22-1/2" tile 30" tile 30" 30" 52-1/2" tile 22-1/2" 0" 41" 41" 41" 15" tile 22-1/2" tile 30" 30" 45"...
- Page 8 Geiger One Installation Principles Right ON SITE 1BS911 Note: Details apply, however the actual configuration of your product may vary from what is depicted here. 6. Connect Optional Task Light Connect the LED light cord that exits through shelf and wall panel and down wall to the power supply. Up to 6 light cords and a total of 16 feet of lighting can be powered by 1 power supply.
- Page 9 Geiger One Installation Principles Right ON SITE 1BC911 Note: Details apply, however the actual configuration of your product may vary from what is depicted here. Programming Remote Control (continued) To program multiple power supplies to work with a single remote, briefly press the button of all power supplies that you want to program.

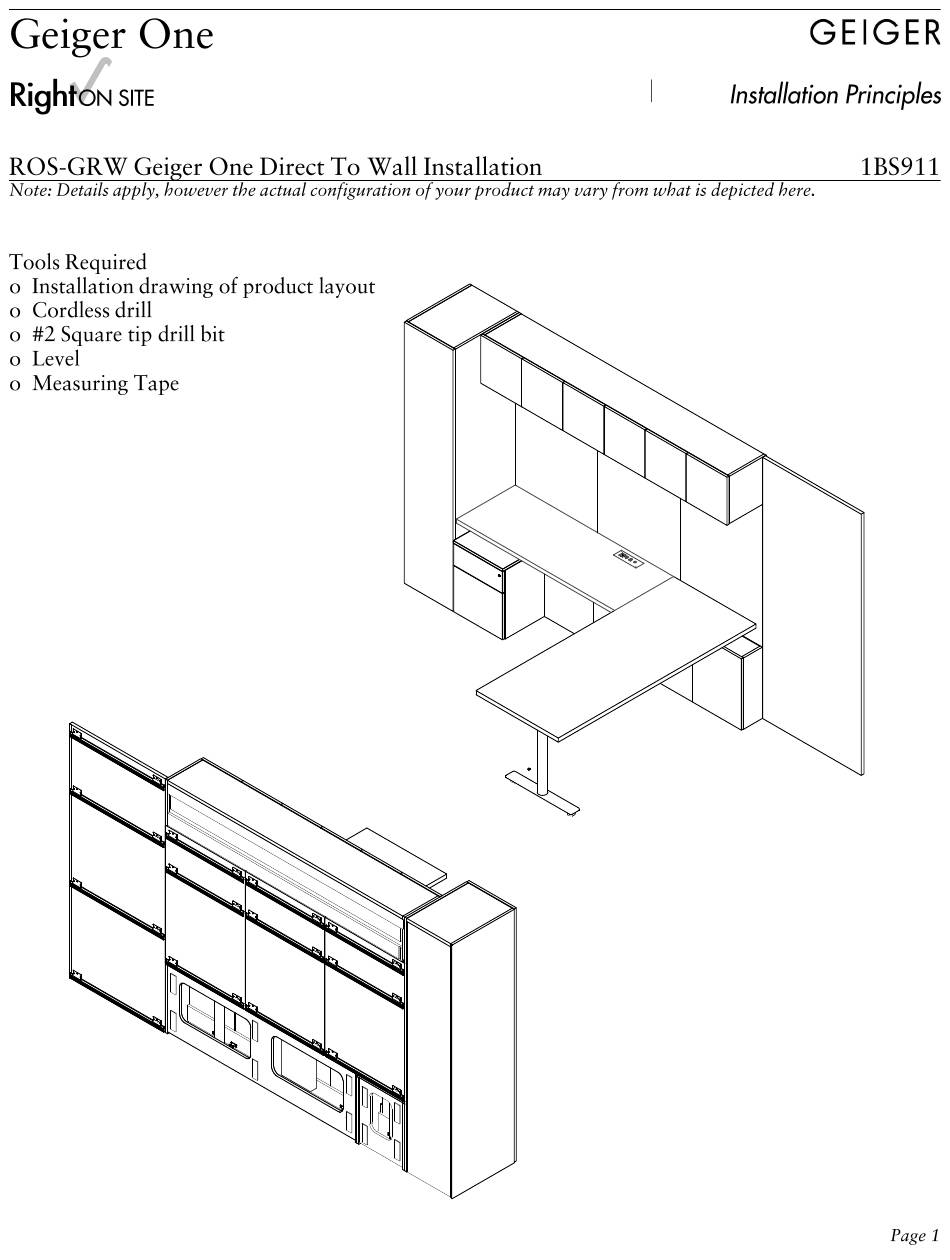

- Page 10 G ei ger O ne Ri ght I ns t al l at i on Pr i nci pl es O N SI TE R O S- G R W G ei ger O ne D i r ect To W al l I ns t al l at i on 1BS911 N ot e: D et ai l s appl y, how ever t he act ual conf i gur at i on of your pr oduct m ay var y f r om w hat i s depi ct ed her e.
- Page 11 Right Installation Principles ON SITE...
- Page 13 Right Installation Principles ON SITE...
- Page 14 Right Installation Principles ON SITE To connect power to the height adjustable legs: 1. Attach an extension cord to each leg. 2. Connect the other end of the extension cord to the control box. 3. Connect the hand set to the control box. 4.
- Page 15 Right Installation Principles ON SITE To connect power to the height adjustable legs: 1. Attach an extension cord to each leg. 2. Connect the other end of the extension cord to the control box. 3. Connect the hand set to the control box. 4.
- Page 16 Right Installation Principles ON SITE To connect power to the height adjustable legs: 1. Attach an extension cord to each leg. 2. Connect the other end of the extension cord to the control box. 3. Connect the hand set to the control box. 4.
