Summary of Contents for Easy Connect 67103

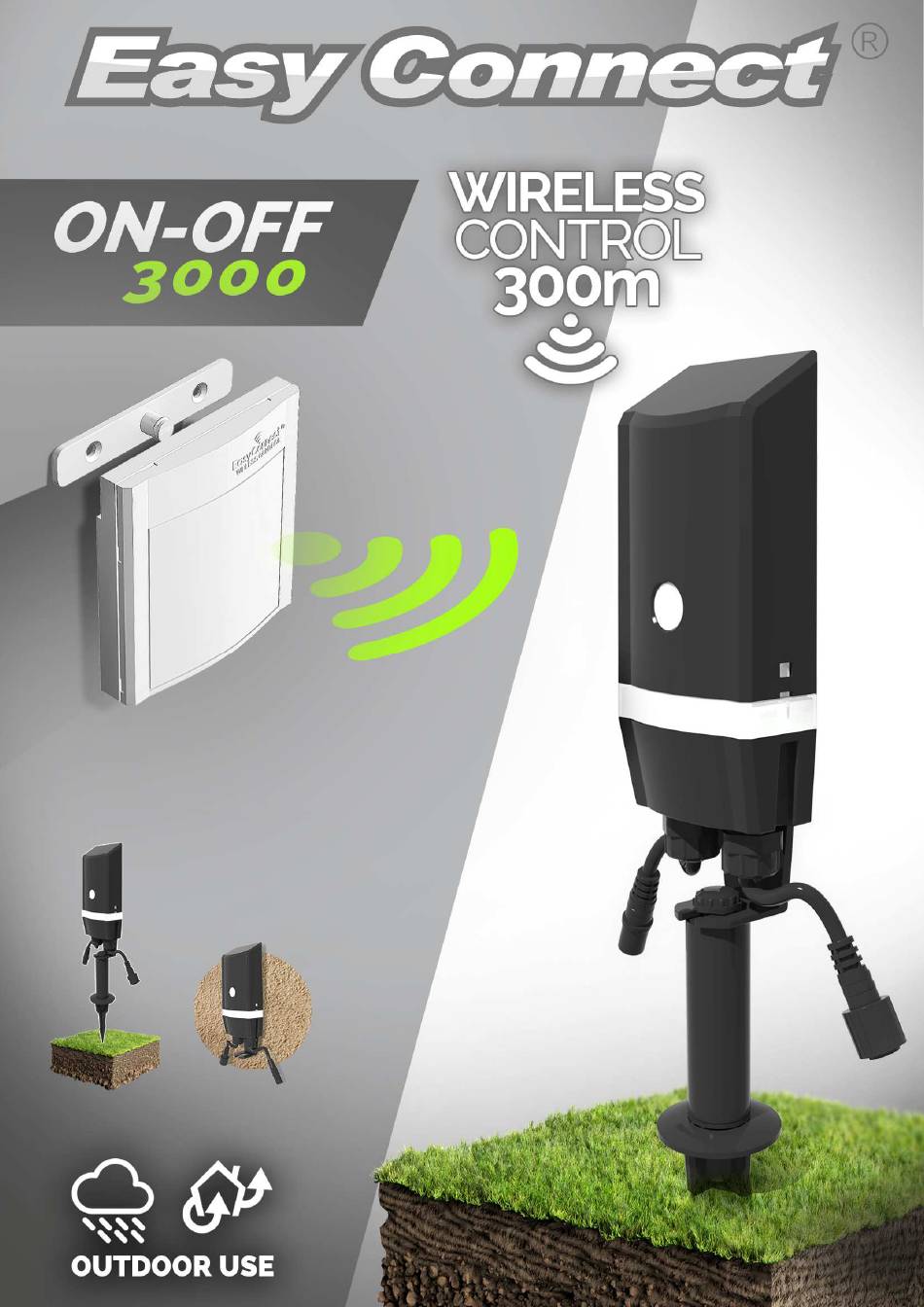

- Page 1 67103...
-
Page 2: Setup Instructions
SET UP INSTRUCTIONS Easy to install, several transmitters and receivers can be added to your outdoor lighting installation in just a few seconds so you can MULTI-ZONES CONTROL monitor all of your garden lights. Each transmitter/receiver combination is paired in a special way so there cannot be any possible confusion, nor any risk of interferences with other electronic devices. - Page 3 GARDEN & HOME AUTOMATION The controller must be located between the power source and the lighting fixtures to be monitored. The operating range is 300m without any obstacle (walls, windows, conditions of batteries can influence the quality of the signal). Ohjausyksikön täytyy sijaita...
-
Page 4: Conditions Of Use
CONDITIONS OF USE The controller is specifically designed to be operated with a large number of electronic devices functioning in 220-250Vac, P MAX = 2500 W . Do not connect after a transformer 12-24V, a dimmer nor any electronic regulator. Ohjausyksikkö... - Page 5 CLASS I & CLASS II CONTROLLER To set and connect the controller to an existing electrical network Class I, unscrew the cables at the bottom, disassemble the lower part, replace the wires with the new ones as indicated in the drawing. Put the lower plastic part back in position, check the seals and tighten securely.
- Page 6 ADD A NEW TRANSMITTER Press for 2s the button located at the back of the controller, when the blue light indicator flickers, press for 2s the switch button to be paired with the controller. If pairing unsuccessful, start again. Paina 2 sekuntia ohjaimen takana Tryck i 2 sekunder in knappen på...
-
Page 7: Led Signal
CANCEL ALL TRANSMITTERS Press for 10s the button located at the back of the controller, when the blue light indicator stays on for 2s, the pairing link with transmitters is now stopped. If unsuccessful, start again. Paina 10 sekuntia ohjaimen takana Tryck i 10 s in knappen på... - Page 8 TRANSMITTER = Control 1, 2 or 4 Zones 3 different transmitter front covers are included in this package. Each cover enables the user to control from 1 to 4 zones with the same transmitter. 3 Façades incluses pour gérer de 1 à 4 zones avec le même interrupteur, In diesem Paket sind 3 verschiedene Senderfronten integriert.
