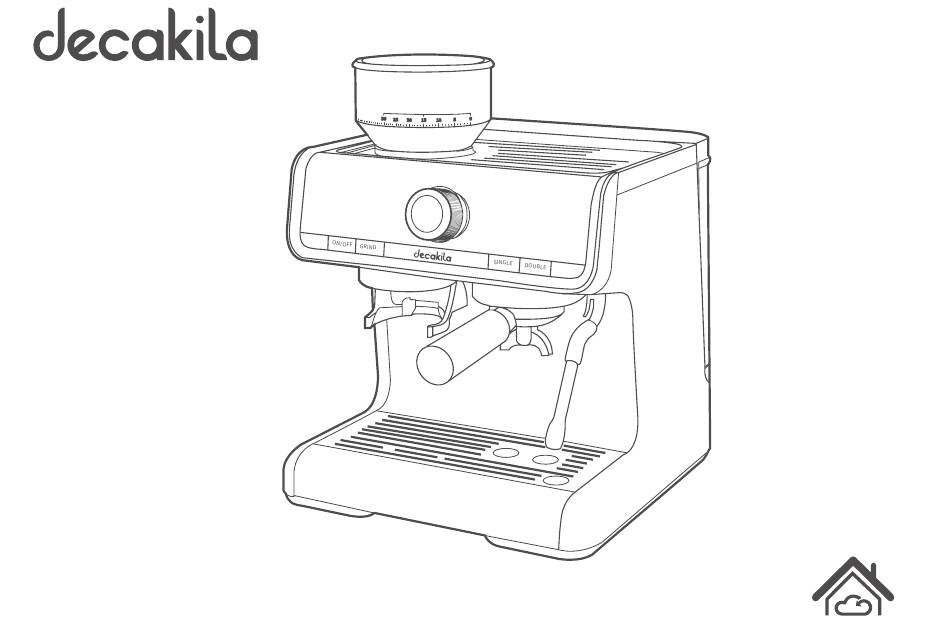

- Page 1 KUCF010M ESPRESSO COFFEE MACHINE WITH GRINDER...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS HIGH TEMPERATURE KNOW YOUR PRODUCT CONTROL PANEL BEFORE THE FIRST USE CHOOSE THE RIGHT COFFEE POWDER OPERATIONAL INSTRUCTION GROUND COFFEE BEANS CLEAN THE GRINDER... - Page 3 DESCALING DESCALING INSTRUCTIONS DESCALING CYCLE COMPLETED CUSTOMIZE COFFEE EXTRACTION TEMPERATURE WATER SHORTAGE REMINDER RESTORE TO FACTORY SETTINGS TOOL BOX AND CLEANING CLEANING BRUSH CLEANING AND MAINTENANCE TROUBLESHOOTING ENVIRONMENTAL PROTECTION...
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following: Read all instructions. Before using, check that the voltage of wall outlet corresponds to rated voltage marked on the rating plate. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed. To protect against fire, electric shock and injury to person, do not immerse main parts of the propipe, cord, plug, in water or other liquid. - Page 5 moving unit with hot liquids. Connect plug to wall outlet before using and turn any switch off before plug is removed from wall outlet. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
-
Page 6: High Temperature
HIGH TEMPERATURE When the machine is working, do not extend your hands and other body parts into the bottom of the funnel or steam tube to prevent burns; at any time, it is not allowed to touch the steam tube with your hands or other body parts. You can only turn the steam tube by touching silicone sleeve that wraps the steam tube. -
Page 7: Control Panel
CONTROL PANEL Steam Hot water indicator indicator Clean /preheat Knob Bean box indicator indicator indicator Double-cup indicator Single-cup button ON/OFF indicator GRIND button ON/OFF button Double-cup Indicator Single-cup indicator GRIND button... -
Page 8: Before The First Use
BEFORE THE FIRST USE in the cup. 8. Thoroughly clean the detachable parts of the whole machine Before the first use or the machine has not been used for a with warm water. long time, you should follow below steps to rinse and warm up Not: There may be noise when pumping water for the first the internal pipes of the machine. -
Page 9: Operational Instruction
OPERATIONAL INSTRUCTION The correct powder should look like salt. If the powder is too finely ground, it may cause the coffee to flow intermittently or fail to brew coffee. Brewing coffee, function of hot water and steam. If the powder is too coarse, the water will flow through the Fill the water tank with drinking water, the water level coffee too quickly, which will affect aroma and taste of the should not exceed the "max"... - Page 10 the single-cup filter into the funnel, load about 13 grams of Recommendation: We recommend that you preheat the coffee powder, use a powder tamper and press the coffee appliance, including the funnel, filter and cup before brewing powder with a force of about 12.5Kg, then align the funnel to coffee, so that the coffee quality will not be affected by the the funnel brackt, turn the funnel counterclockwise to lock cold appliance.
- Page 11 settings; When extracting coffee, make sure that the funnel is turned counterclockwise into the correct position as shown in the figure below. Boil hot water: in standby mode, turn the knob to hot water indicator , the machine enter into hot water mode, at this time, hot water indicator light will flash, ON/OFF indicator light and grind indicator light...
-
Page 12: Ground Coffee Beans
GROUND COFFEE BEANS will flash like breathing. Hot water indicator light , single- cup indicator light and double-cup indicator light will extinguish. When steam indicator light stays alight This product has a coffee bean grinding function, before using steadily, the steam function is warming up. Wait until clean/ this function, please make sure that all devices are installed in accordance with the requirements. - Page 13 1.Maker sure the bean box is installed in place, and the bean box indicator (on the left side of control panel) turns from red light to extinguish, grinder is ready for use. 2.Add appropriate amount of coffee beans in the bean box. To prevent coffee beans from getting wet, affecting the grinding and the final coffee taste and effect, please do not put too many coffee beans in the bean box;...
-
Page 14: Clean The Grinder
the amount of grinded beans or reset the grinding amount intermediate rest time is less than 6 minutes, the machine to ensure that the amount of powder is about 13g (about 10 will limite the use of grinding function. After grinding rest time seconds) reaches 6 minutes, the machine will automatically release the Note: Baking degree and freshness of coffee beans will affect... -
Page 15: Descaling
weeks; Do not install the grinder wheel at this time, re-install the When there’s reduction in powder amount, please clean the empty bean box, press GRIND button, let the grinder run to powder passage and grinder wheel; sweep out the powder residue in the grinder chamber. (If When the coffee grinder is used to grind fine coffee powder, powder inside is not removed completely, please repeat step please clean the powder channel in time;... -
Page 16: Descaling Instructions
will exit the descaling cycle and return to standby mode. thoroughly; Add 1.5 scoops of white vinegar into the water tank, then add DESCALING INSTRUCTIONS 1 liter warm water to allow the solution to mix thoroughly; Insert the water tank into place . It is recommended to descale every 4-6 months Descaling can be selected: Coffee machine descaling tablets... -
Page 17: Descaling Cycle Completed
After completing the above steps, you can start the cleaning steps before exiting the descaling cycle. process as following: The steam tube and brewing head need to be cleaned with When the system detects that the flow amount of the whole fresh water to remove the descaling solution machine reaches 15 liter, the descaling function will start and Clean the water tank... -
Page 18: Customize Coffee Extraction Temperature
ENTER THE CUSTOMIZED Steam indicator light stops illuminating and the knob indicator light starts to flash to remind to turn the EXTRACTION TEMPERATURE MODE knobback to twelve o’clock position. Turn the knob back to the vertical position The machine returns to standby mode. Keep pressing the ON/OFF button &... -
Page 19: Water Shortage Reminder
TOOL BOX AND CLEANING button is pressed within 1 minute, the machine will exit this mode and return to standby mode. ACCESORIES WATER SHORTAGE REMINDER The machine is equiped with tool box which is used for storing When the water tank is short of water, the machine will cleaning pin and cleaning brush. -
Page 20: Cleaning Brush
Clean the steam C l ea n t h e f i l te rs tube with thicker with thinner pin pin. Figure 9 Clean the grinder chamber and the powder channel with attached cleaning brush as Figure 10. Figure 8 Figure 7 CLEANING BRUSH Figure 10... -
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE Warning: Please unplug before cleaning to allow the coffee machine to cool down sufficiently to prevent scalding. Do not immerse the coffee machine or the power cord plug in water or other liquids to avoid danger. After each use, put all detachable parts into water for cleaning, add cleaning liquid if necessary, and then rinse with clean water. Often use a moisture-proof sponge to scrub the external surface of the coffee machine to remove dirt. -
Page 22: Troubleshooting
TROUBLESHOOTING malfunction the reason solution No display Check that the plug is in place and ON/OFF Insert the power plug, make sure you press the button is pressed ON/OFF button The indicator on the front panel of The bean box is not installed Install bean box the machine is red There are water marks on the... -
Page 23: Environmental Protection
No steam The steam function is not preheated; the The machine can only produce steam after steam nozzle is blocked machine is preheated in steam mode; the machine needs to be descaled and use a cleaning needle to clean the steam nozzle Can't make coffee or hot water After steaming is completed, the pressure It takes 20-30s to release the pressure and cool... - Page 24 User guide decakila decakila Made in China Jiangsu China. 2021.D01 www.decakila.com Global Links Technology Co. Pte. Ltd.
