Pioneer 12.301088-02 Installation Manual
Pioneer 12.301088-02 Installation Manual

Pioneer 12.301088-02 Installation Manual

Enclosure for daihatsu terios 2007

Advertisement

Installation manual for:
Daihatsu Terios 2007 -->
Use this hole
Use this hole
2-DIN

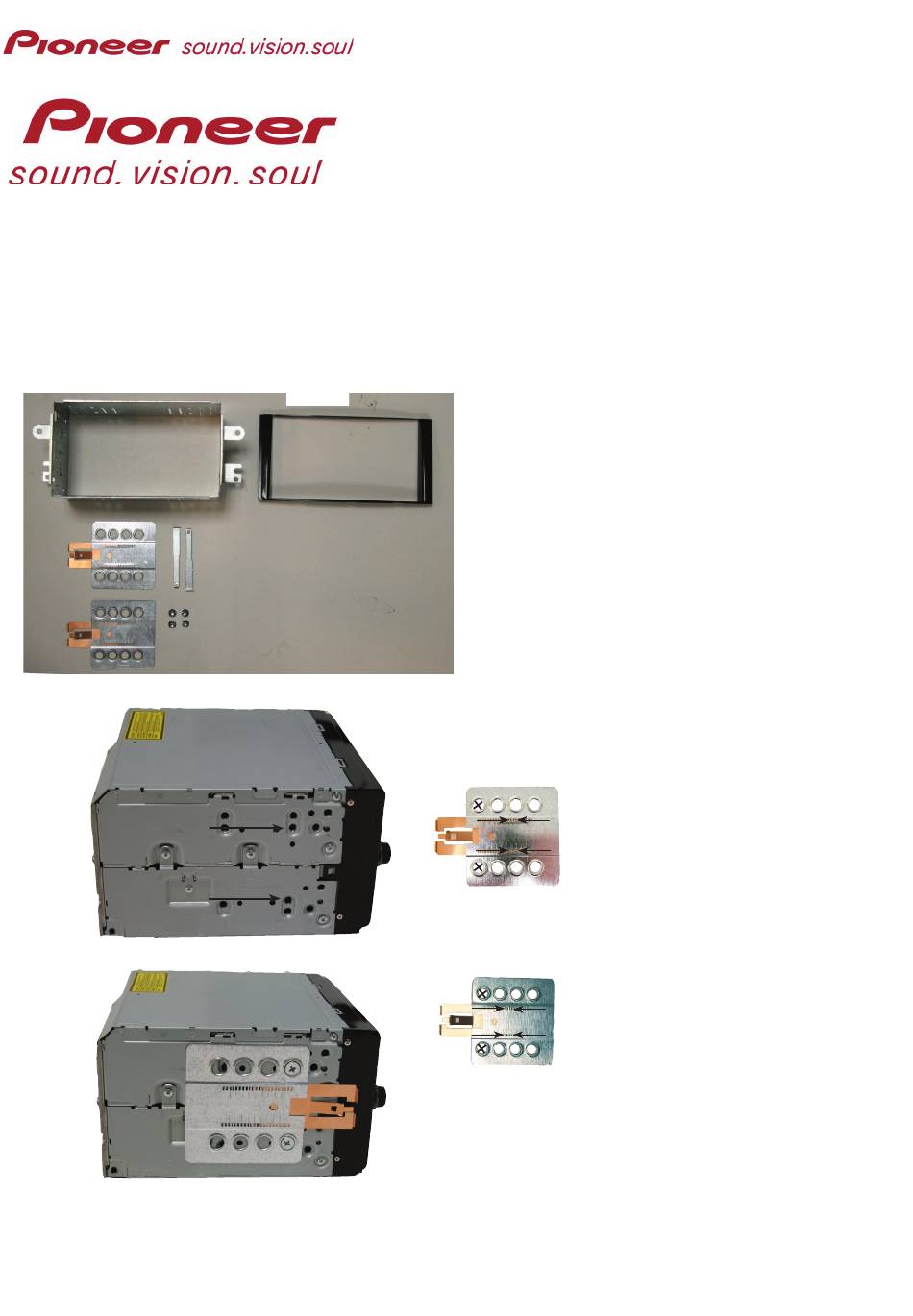

Installation kit includes the following items:

* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws

* Mount the plates.

12.301088-02
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 12 & 14 marked with an arrow
Measured from left to right.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12.301088-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pioneer 12.301088-02

  • Page 1 Use position 1 marked with a cross. Use this hole Use position 14 & 16 marked with an arrow. Measured from left to right. Pioneer Avic D3 We advice to use the following positions. Other positions are also possible. Use position 1 marked with a cross.
  • Page 2 2-DIN 12.301088-02 Mount the 2-Din metal bracket. Remove the dashboard panel starting at the location of the arrows. Remove the original radio. Place the radio trim behind the Replace the orginal dashboard panel and dashboardpanel. the head unit. Connect all of the needed wiring harnesses and check the connections carefully.
