Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
C6-HF
QUICK START BLUETOOTH INSTALLATION GUIDE FOR C6 CORVETTE WITH XM MODULE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C6-HF and is the answer not in the manual?

Questions and answers

Summary of Contents for Corvette C6-HF

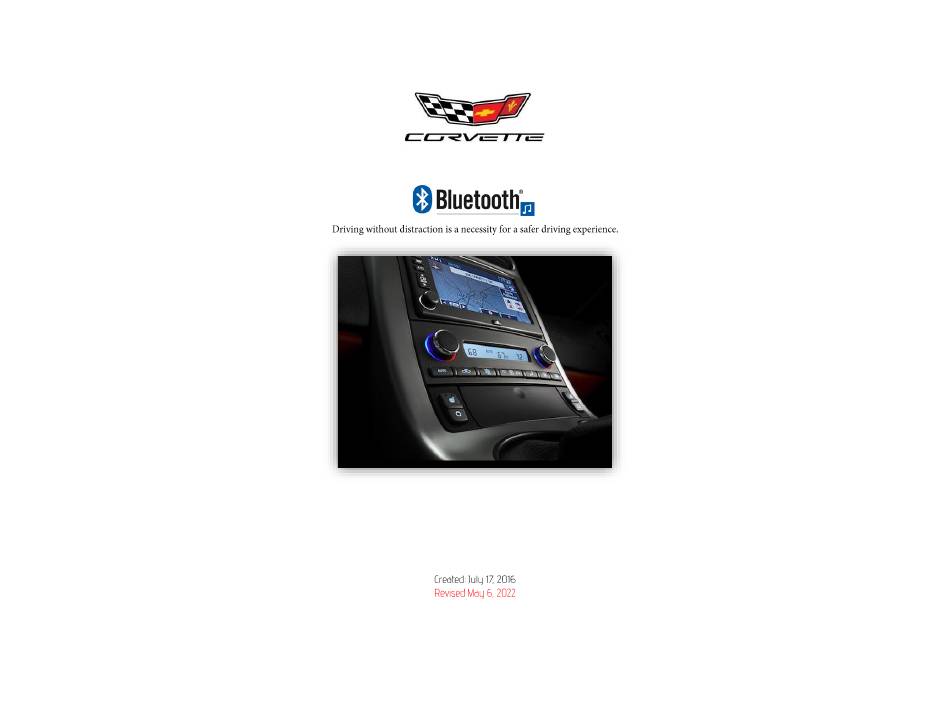

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 C6-HF QUICK START BLUETOOTH INSTALLATION GUIDE FOR C6 CORVETTE WITH XM MODULE...
  • Page 2 3. Disconnect factory 16-pin plug (See Fig. 2) from XM module (See Fig. 3) the C6-HF. Safety comes first when you’re on the road, so having an intuitive and To release plug, pull back blue locking tab, press and hold black release easy to use Bluetooth kit is essential to reducing driver distraction.
  • Page 3 (Mp3 player, iPod etc.) on the car system. (Required XM module remains connected) Noteworthy: With the C6-HF, C6 owners may retain XM subscription opt for an Aux input (one or the other; not both) 7. Connect included 3.5mm male-male cable (See Fig. 5 to module input jack labeled “AUX”...

  • Page 4: Installation

    10. Connect push-to-talk button with built-in microphone (See Fig. 8) to module input jack labeled “MIC” (See Fig. 6) Fig. 8 push-to-talk button/Microphone C6 fuse panel in passenger footwell 11. Consider where to install control/mic button. Keep in mind the control button must be within reach of the driver and facing driver for voice commands and phone dialog (cable is 6ft.

  • Page 5: Usb Charging Port

    USB charging port Module includes a 1.8Amp charging port. Should you decide to use it, we suggest one of 3 connecting options: Fig. 12 A. Flush to dash/panel requires drilling a ¾” hole in the dash Module USB port B. Flush with Support bracket (use this option to mount USB terminal wherever your installation demands without drilling) Push USB (See Fig.

  • Page 6: Bluetooth Pairing And Connection

    Bluetooth Pairing and connection This process is required the very first time you use the C6-HF. After initial pairing, the C6-HF will automatically reconnect with the paired phone upon Fig. 15 entering vehicle. USB mounting bracket Turn vehicle ignition to “ON”.

  • Page 7: Operation

    XM controls as customary or AUX device buttons for music Use radio volume button to set playback level selection and controls. Music Commands This concludes the installation of the C6-HF. Enjoy!!! Proceed this way Pause a Song Press and release button...
  • Page 8 NO; XM ready means radio is capable of controlling optional XM module but tuner is not currently installed. Early C6 were pre-wired for the U2K option, but for the C6-HF to work, vehicle must have an XM module (with or without subscription).
