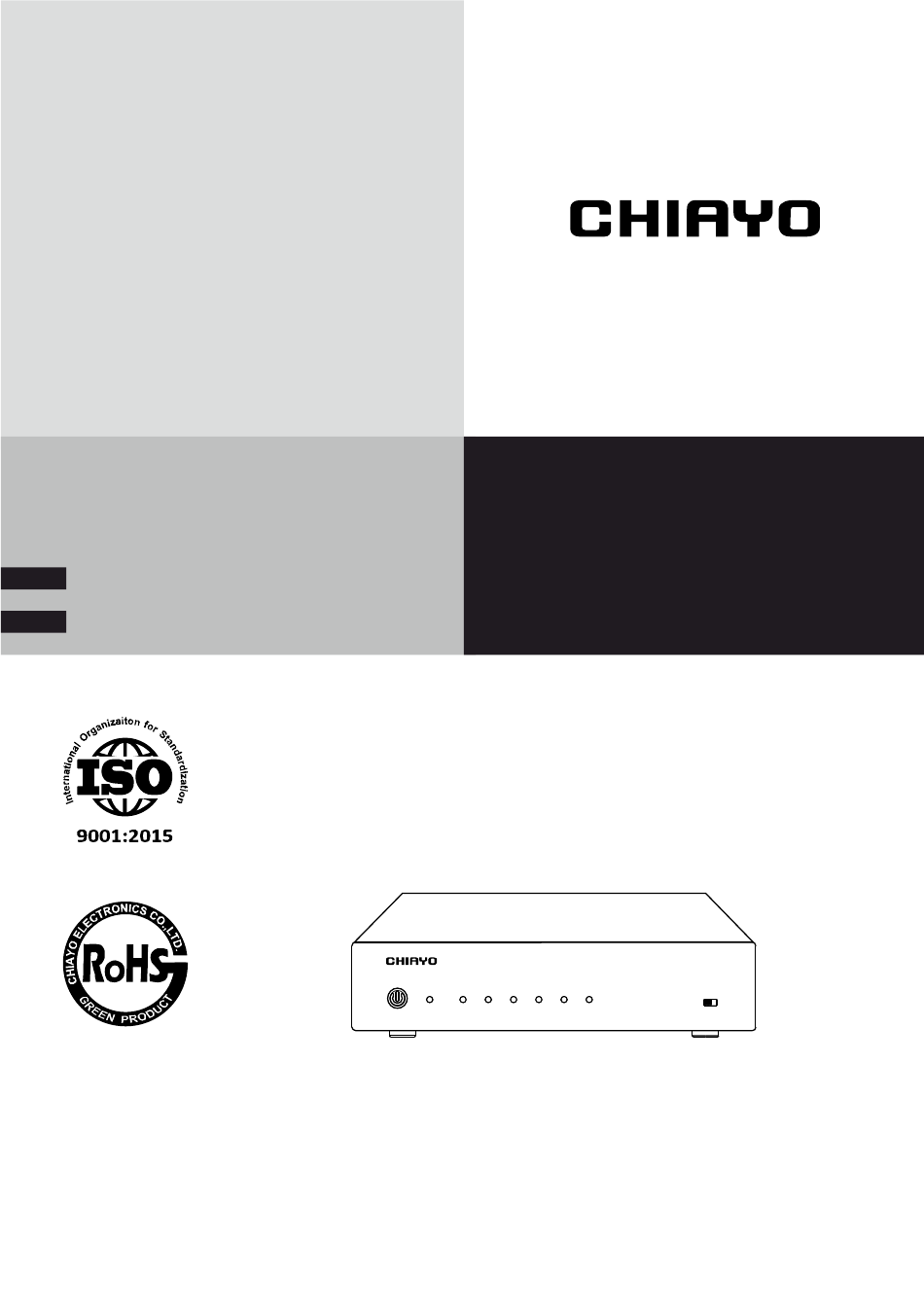

- Page 1 P O R T 1 P O R T 2 P O R T 3 P O R T 4 P O R T 5 P O R T 6 S Y S T E M CHIAYO ELECTRONICS CO., LTD.
-
Page 2: Parts And Functions
) connection, please refer to P.6. Advisory 1. DO NOT TURN ON the power of the GMC-60 convertor before all network cables are all connected and installation is completed. 2. The network cable Cat.5e / Cat.6 UTP has to meet TIA/EIA-568-B.2 standards with copper wires of 24AWG-1/0.49A*4P (CM/UL). -
Page 3: System Integration
PORT1 PORT2 PORT3 PORT4 PORT5 PORT6 System integration 1. When more than 60 units are required or the ports aren’t enough, GMC-60 can link to another convertor via its rear port to support more GM-243 units. IMPORTANT! Each system expansion max includes two GMC-60 convertors and 120 GM- 243 units. - Page 4 GMC-60 Gooseneck Microphone Audio Convertor Installation of GM-243 ≦ 60 units ▌ SCENARIO A ▌ SCENARIO B If system includes one or two GM-243C If the system includes no GM-243C chairman chairman unit, slide the SYSTEM SWITCH of unit, slide the SYSTEM SWITCH of the the convertor to ‘...
- Page 5 ▌ SCENARIO B If the system includes no GM-243C chairman unit, slide the SYSTEM SWITCH of both convertors to ‘ S ’ position. LINK GMC-60 GMC-60 G ooseneck M icrophone C onverter G ooseneck M icrophone C onverter P O W E R...
-
Page 6: Audio Output
“LINE IN” or to the “MIC IN” jack of the mixer / amplifier. “AUX IN” jack of the mixer / amplifier. Single GMC-60 convertor Single GMC-60 convertor 15V 4.3A 15V 4.3A... - Page 7 Instructions Insert the plug Lock bar Use finger to push the lock bar Done! to the bottom Pull out the plug Prepare to unlock Lock bar Push lock bar Locked!
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
