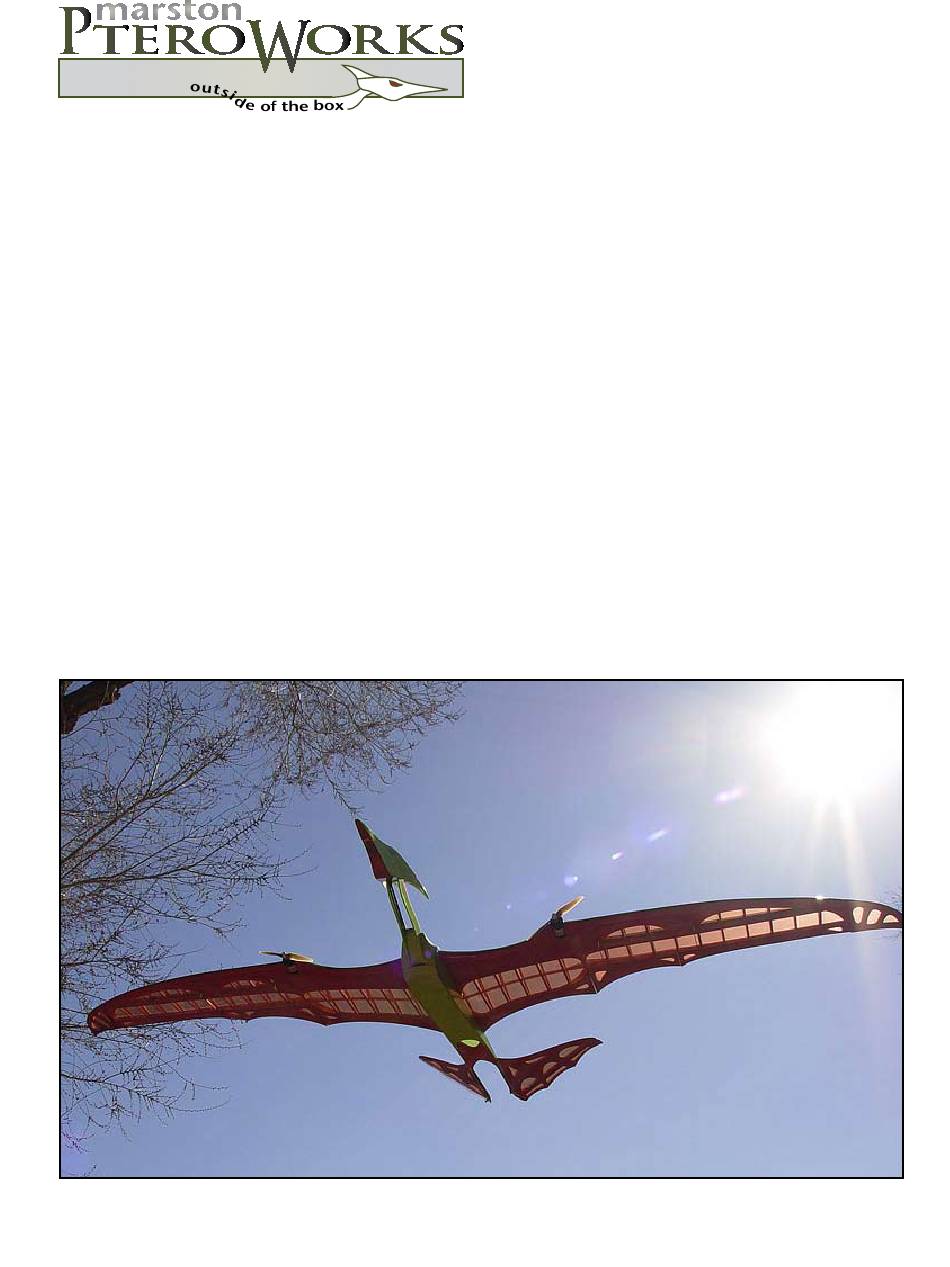

marston PteroWorks Pterodactyl Building Instruction

80”

Hide thumbs Also See for Pterodactyl:

ﬂy

Thank You!

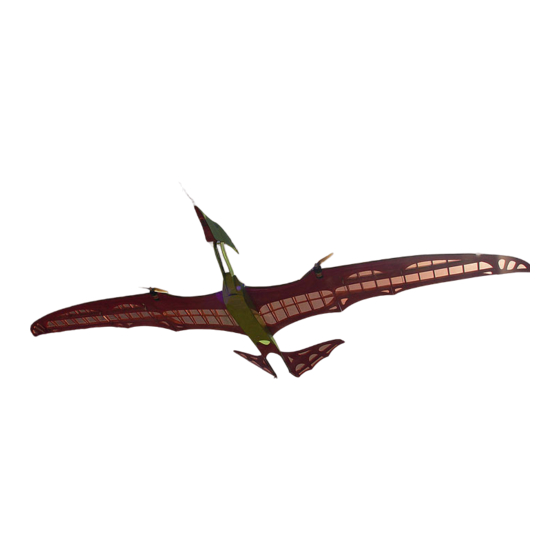

Thank you for purchasing this 80" Marston Pterodactyl short kit. It is highly unlikely that anyone else at your

flying field has anything like this. It is truly a distinctive design, and yours will no doubt be different from mine,

making it a one of a kind model.

Obligatory Disclaimer:

This is not a beginner's kit. It is not a simple build, because it is not a simple airframe. It is what I call a

"builders kit", meaning you should already have some building experience under your belt. The instructions are

as clear as I could make them, and if you use them in conjunction with the build pictures on the website (http://

www.pteroworks.com/web_gallery/index.htm#1), you should have enough information to build a beautiful and

airworthy Pterodactyl.

This airframe also requires some experience to fly. It is not a beginner's plane. If you have been flying for

awhile, you should have no trouble at all launching, flying and landing this big bird. The wing loading is very

reasonable, and the airfoil is fast but not unruly, and there should be no surprises.

Thanks,

Ron Marston

Marston PteroWorks

http://www.pteroworks.com

ron@pteroworks.com

rev 10/09/07

Table of Contents

Need help?

Do you have a question about the Pterodactyl and is the answer not in the manual?

Page 1 Thank You! Thank you for purchasing this 80” Marston Pterodactyl short kit. It is highly unlikely that anyone else at your flying field has anything like this. It is truly a distinctive design, and yours will no doubt be different from mine, making it a one of a kind model.
Page 2 ﬂy Marston 80” Pterodactyl Additional parts list 1/8” x 3/8” x 36” spruce sticks (spars) 1/8” x 1/4” x 36” spruce sticks (misc. wing) 1/8” x 1/4” x 36” balsa sticks (misc. wing and body) 1/16” x 3/16” x 36” balsa sticks (rib caps) 1/16”...
Page 3 Building Instructions for the 80” Marston Pterodactyl Wing 1. Prepare spars - 3/8 x 1/8 x 36” spruce Cut to length per plans. Glue .007 carbon strips to one side of inner pieces for added strength using CA or epoxy (highly recommended) 2.
Page 4 The Pterodactyl will fly pretty fast, especially if you are using brushless motors. I recommend keeping the speed and acrobatics to a minimum for the first few flights. Landings should be uneventful, as long as you have grass to land on.
