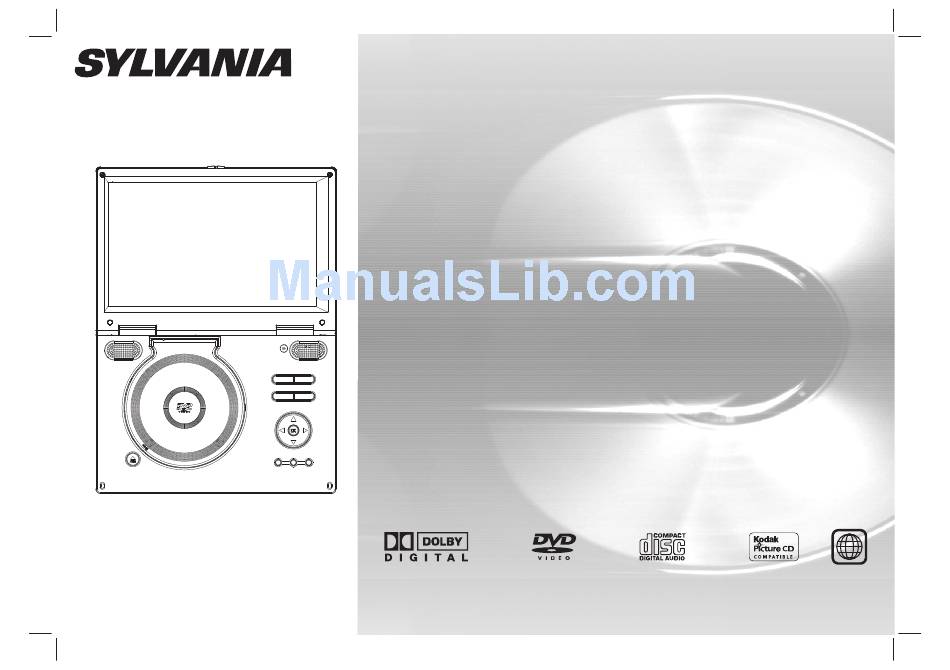

Page 1
PORTABLE DVD USER'S MANUAL SDVD1023-BLACK Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
Table of Contents Contents Table of Contents Safety Precautions Identification of Controls Main Unit Remote control unit SETUP Menu Setting General Setup Page Audio Setup Page Video Setup Page Preference Page P3-P5 Password Setup Page Battery Parameters P4-P5 Parameters and specifications P6-P8 P6-P7 P7-P8...
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN Warning:To reduce the risk of electric shock,do not remove the cover or back of this product.There are no user-serviceable parts inside. Refer servicing to qualified service personnel. Warning: To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water,rain, or moisture.
Identification of Controls Main Unit 1.TFT screen 2.Speakers 3.MENU(DVD),PBC(VCD) 4.SOURCE Select input source, DVD CARD,USB and AV IN 5. VOL+ 6. VOL- Adjust volume 7.OK Confirms menu selection. (Left/right/up/down) Select an item in the menu.Enter confirms menu selection. When playing CD,VCD,DVD,if available: Up:Fast forward Down:Fast reverst Left:Previens track...
Identification of Controls Remote control unit MUTE SOURCE DISPLAY MENU /PBC MODE VOL- VOL+ SLOW ZOOM 1.PLAY/PAUSE Press PLAY/PAUSE once to pause playback, pressing PLAY/ PAUSE second time will resume the playback. 2.STOP When this buttom is pressed once, the unit records the stopped point,from where playback will resume if ENTER is pressed after wards.
Page 6
Identification of Controls Remote control unit 14.REPEAT Press REPEAT during playback to select a desired repeat mode. : you can play a chapter/title/all on a disc. : you can play a track/all on a disc. : you can select shuffle/ random/ single/ Repeat one/ Repeat folder/ folder play mode on a disc.
SETUP Menu Setting General Setup Page Press SETUP button to get the setup menu. Use direction buttons to select the preferred item, press “ENTER”to confirm. After finishing settings, press SETUP again to normal display. The following menu items can be changed: GENERAL: selects the GENERAL PAGE menu.
SETUP Menu Setting Audio Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. Stereo :Select this option when output delivers sound from only the two front speakers.
SETUP Menu Setting Preference Page PAL - Select this if the connected TV is PAL system.It video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will the video signal of a PAL disc and output in NTSC format. Auto:Chang the video signal output automatic according to the playing disk format.
Parameters and specifications Electronical parameters Standard requirement Item Power requirements : AC 100-240 V , 50/60 Hz Dimensions (Approx.) : 260(L)X182(W)X37.5MM Power consumption : <12W Weight (Approx.) : 0.9 kg Operating humidity : 5 % to 90 % VIDEO OUT :1.4 Vrms (1 KHz, 0 dB) AUDIO OUT Audio...
Page 11
SOMMAIRE Instructions de sécurité importantes... 2 Description de l’appareil... 3 Description de la télécommande... 4 Description de la télécommande... 4 CONFIGURATION DU SYSTEME... 5 Page Réglages Généraux... 5 Page Réglages Audio... 6 Page Réglages Vidéo... 6 Page Préférences... 7 Page Réglages Mot de Passe... 8 Caractéristiques techniques...
INSTRUCTIONS DE SECURITE IMPORTANTES ATTENTION : VEUILLEZ LIRE ET RESPECTER TOUS LES AVERTISSEMENTS ET INSTRUCTIONS DE SECURITE DONNES DANS CE MANUEL ET INDIQUES SUR LE LECTEUR AVANT D’UTILISER L’APPAREIL. CONSERVEZ CES INSTRUCTIONS POUR POUVOIR VOUS Y REPORTER ULTERIEUREMENT. AVERTISSEMENT : AFIN D’EVITER TOUT RISQUE D’INCENDIE OU D’ELECTROCUTION, N’EXPOSEZ PAS CET APPAREIL A LA PLUIE OU A L'HUMIDITE.
DESCRIPTION DE LA TELECOMMANDE ] LECTURE/PAUSE 1. [ Permet de lancer la lecture ou faire une pause durant la lecture. 2. [STOP] ARRET Permet d’arrêter la lecture. ] PISTE PRECEDENTE 3. [ Permet d’aller à la piste/au chapitre précédent(e). ] PISTE SUIVANTE 4.
CONFIGURATION DU SYSTEME Appuyez sur la touche SETUP pour afficher le menu de configuration. Appuyez sur la touche SETUP une nouvelle fois pour quitter le menu. Pour naviguer dans les menus : - Utilisez les touches ► et ◄ pour sélectionner les paramètres que vous souhaitez modifier.
CONFIGURATION DU SYSTEME Page Réglages Audio 1. « DOWNMIX » Cette option vous permet de régler la sortie analogique de votre lecteur DVD. - « LT/RT » / « G/D » (gauche/droite) : sélectionnez cette option si votre lecteur DVD est branché...
ONFIGURATION DU SYSTEME Page Préférences Note : vous ne pouvez pas accéder à ce menu lors de la l cture d’un disque. En outre, certaines préférences peuvent uniquement être sélectionnées e arrêt » (sans disque et lorsque la lecture est arrêtée). .
ONFIGURATION DU SYSTEME Page Réglages Mot de Passe ette fonction est utilisée pour le contrôle parental. - Activez ou désactivez le mode mot de passe. our modifier le mot de passe par défaut : 1) Sélectionnez l’option « changer » pour changer le mot de passe. Appuyez sur la touche ENTER.
Page 19
Attention : Ce logo apposé sur le produit signifie qu’il s’agit d’un appareil dont le traitement en tant que déchet rentre dans le cadre de la directive 2002/96/CE du 27 janvier 2003, relative aux déchets d’équipements électriques et électroniques (DEEE). La présence de substances dangereuses dans les équipements électriques et électroniques peut avoir des effets potentiels sur l’environnement et la santé...
