Summary of Contents for Whadda Arduino WPSH202

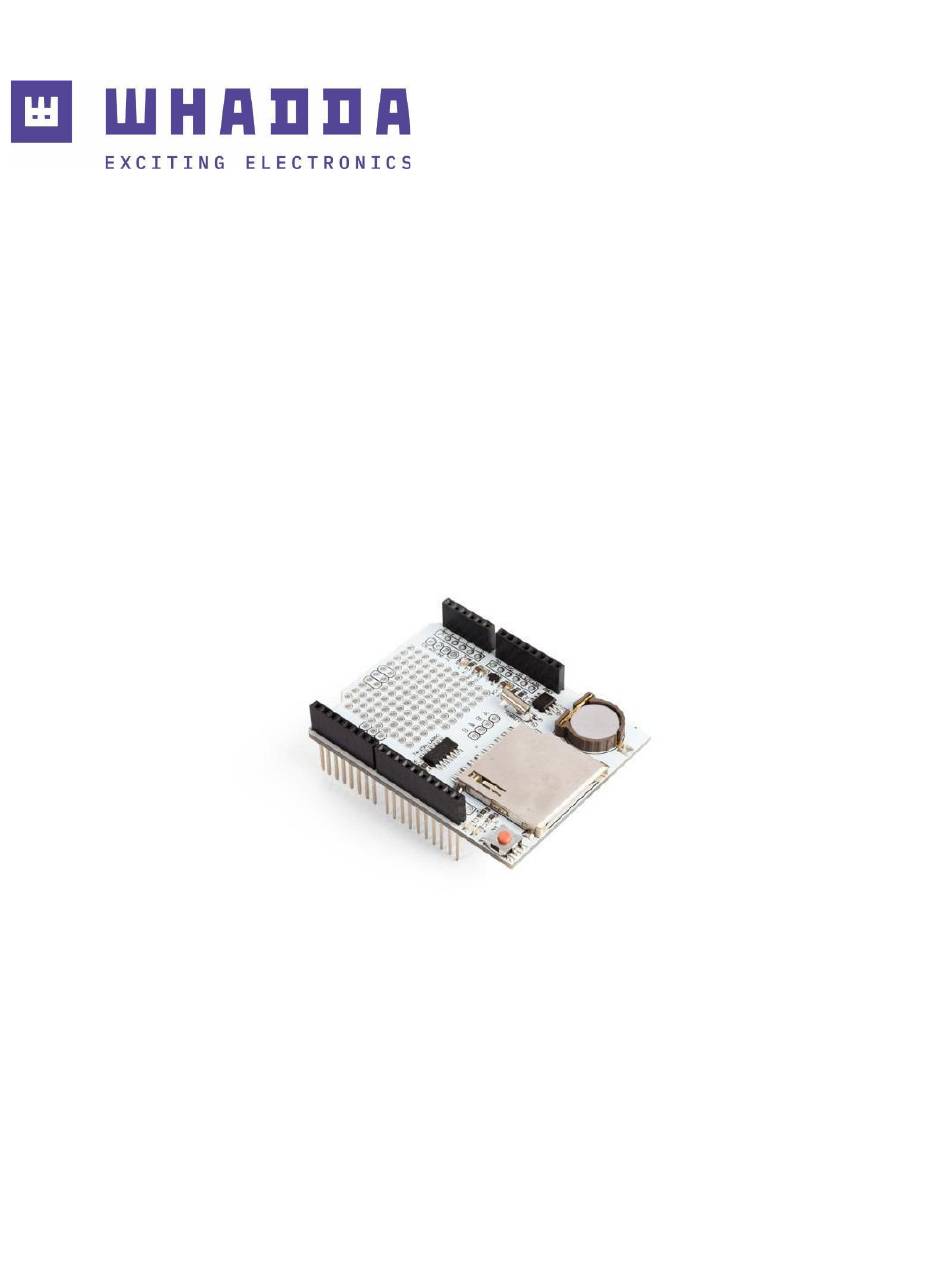

- Page 1 MANUAL Arduino® Compatible Data Logging Shield WPSH202 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 What is Arduino® ® Arduino is an open-source prototyping platform based on easy-to-use hardware and boards are able to read inputs – light-on sensor, a finger on a button or a ® software. Arduino Twitter message – and turn it into an output – activating of a motor, turning on an LED, publishing something online.
- Page 4 2. Your data logging shield uses chipSelect 10 instead of chipSelect 4. Change line 36 in the sketch to: const int chipSelect = 10; IMPORTANT The ATmega2560-based MEGA compatible (e.g. WPB101) and ATmega32u4-based Leonardo compatible (e.g. WPB103) development boards do not use the same hardware SPI pin-out. If you are using one of these boards, please specify the pins used for SPI communication with the SD card.
- Page 5 Also, an updated SD library is needed to avoid error messages. How to replace the SD library: Download the updated SD library from the products page on www.velleman.eu. Make ® sure the Arduino IDE is not running. 2. Go to C:\Program Files\Arduino and create a new map, e.g. SD Backup. 3.
- Page 6 Modifications and typographical errors reserved - © Velleman Group nv. WPSH202_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
