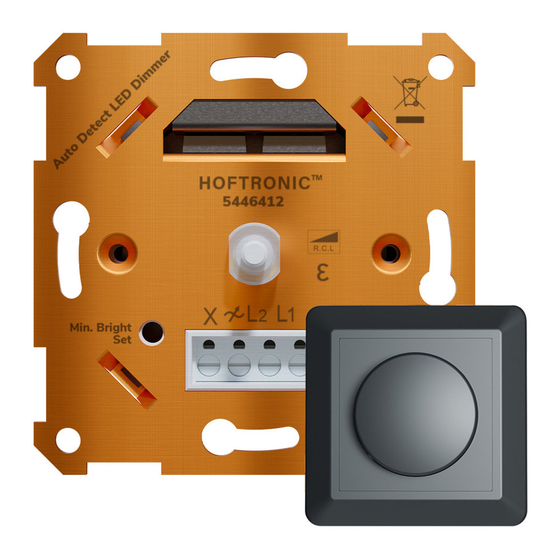

Hoftronic 5446412 User Manual

Auto detect dimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2
YEAR
WARR ANTY *
USER MANUAL
AUTO DETECT
DIMMER
SKU
5446412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5446412 and is the answer not in the manual?

Questions and answers

Related Manuals for Hoftronic 5446412

Summary of Contents for Hoftronic 5446412

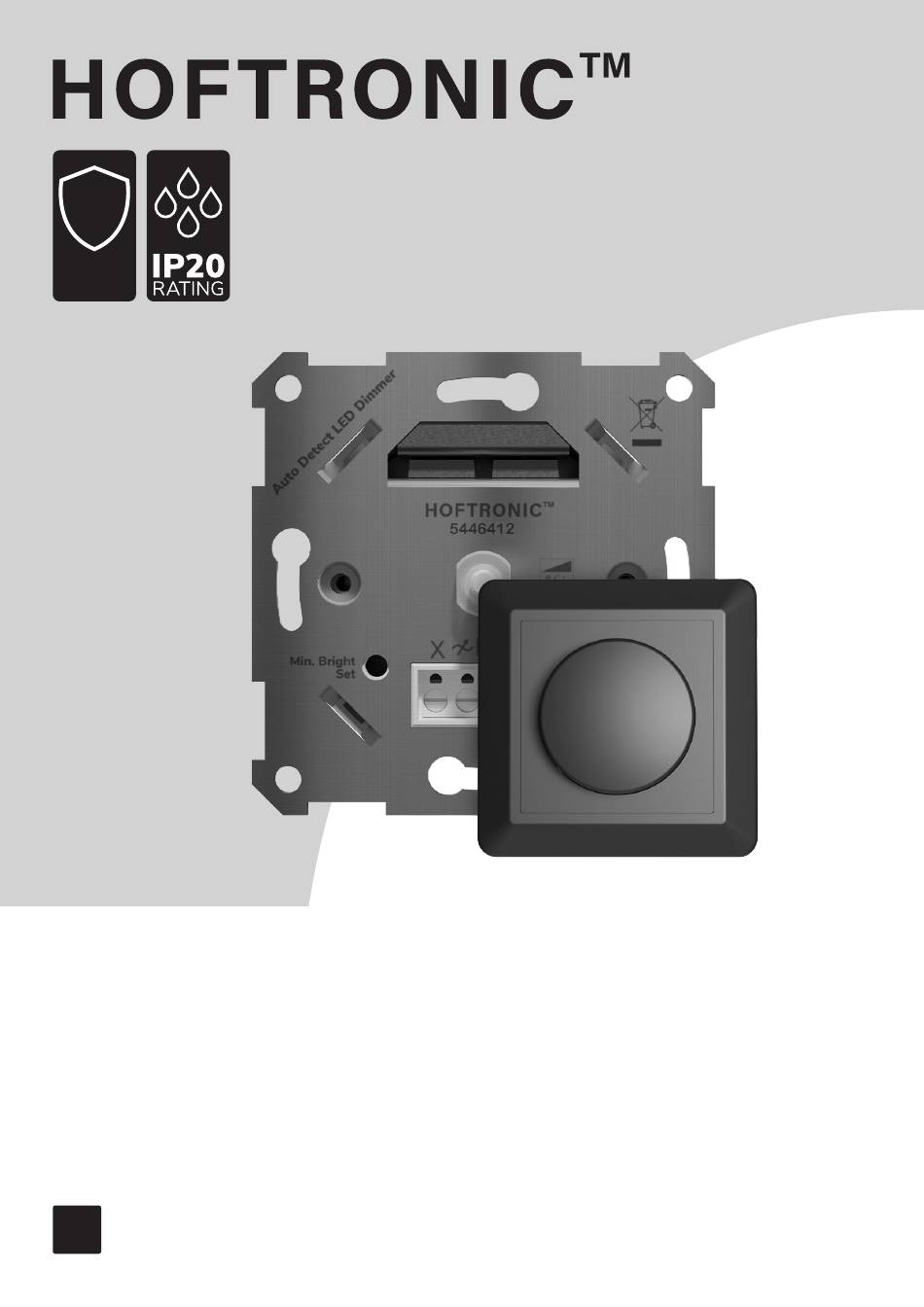

  • Page 1 YEAR WARR ANTY * USER MANUAL AUTO DETECT DIMMER 5446412...
  • Page 2 IMPORTANT SAFETY DETAILS Hazardous voltage may be present at the output of the dimmer despite setting the dimmer to zero brightness level. Look out and tag the input circuit before accessing the wiring connections. Failure to follow this warning result in death or serious injury. Ensure the AC/Mains power is NOT connected and cannot be unexpectedly reconnected during installation.
  • Page 3 WIRING DIAGRAMS FOR ONE RETRACTIVE SWITCH CONTROL MULTI-DIMMER NOTE: One retractive switch or push switch can control up to 20 units of dimmers for UP/DOWN dim and ON/OFF at the same time.
  • Page 4 ELECTRICAL SPECIFICATIONS PARAMETER VALUE Supply voltage & Frequency 220-240V ~ 50Hz Auto Detect Trailing/Leading edge driven control. Leading edge Dimming technology dimming mode can be set by user manually. 10-100W: incandescent lamps, high voltage halogen lamps and electronic step-down converter Rating for extra low-voltage incandescent lamps.
  • Page 5 FEATURES • Suitable for 1-way of multi-way full dimming and switching. • Minimum load down to 3W of capacitive or restistive load, such as dimmable LED Lighting, Incandescent Lighting, MV Halogen/LV Halogen Lighting with electronic transformers. • Lamps soft start operation, to extend longer lifetime for the lamp. •...
  • Page 6 Hoftronic products visit www.hoftronic.com. Hoftronic shall not be responsible NEDERLANDS for any damage resulting from the failure to follow these instructions. Hoftronic reserves the right to make changes in the manual - the current version can be downloaded at www.hoftronic.com.
  • Page 7 Meer informatie over Hoftronic producten vindt u op www. Hou je omgeving schoon. Segregatie van post-verpakkingsafval wordt aanbevolen. hoftronic.com. Hoftronic is niet verantwoordelijk voor schade als gevolg van het niet Wanneer u het product wilt afvoeren dient u dit op een verantwoorde manier opvolgen van deze instructies.

This manual is also suitable for:

8720365446412
