INSTRUCTION MANUAL

Original instructions for

IMMERSION BLENDER

(HAND MIXER)

STHMMA16 / STHMMLA16 / STMA45 /

STMLA45 / STMA65 / STMLA65 /

STMA85 / STMLA85

Keep these instructions with the appliance.

You should read this user manual carefully before using the appliance.

Table of Contents

Need help?

Do you have a question about the STHMMA16 and is the answer not in the manual?

Questions and answers

Summary of Contents for horeca STHMMA16

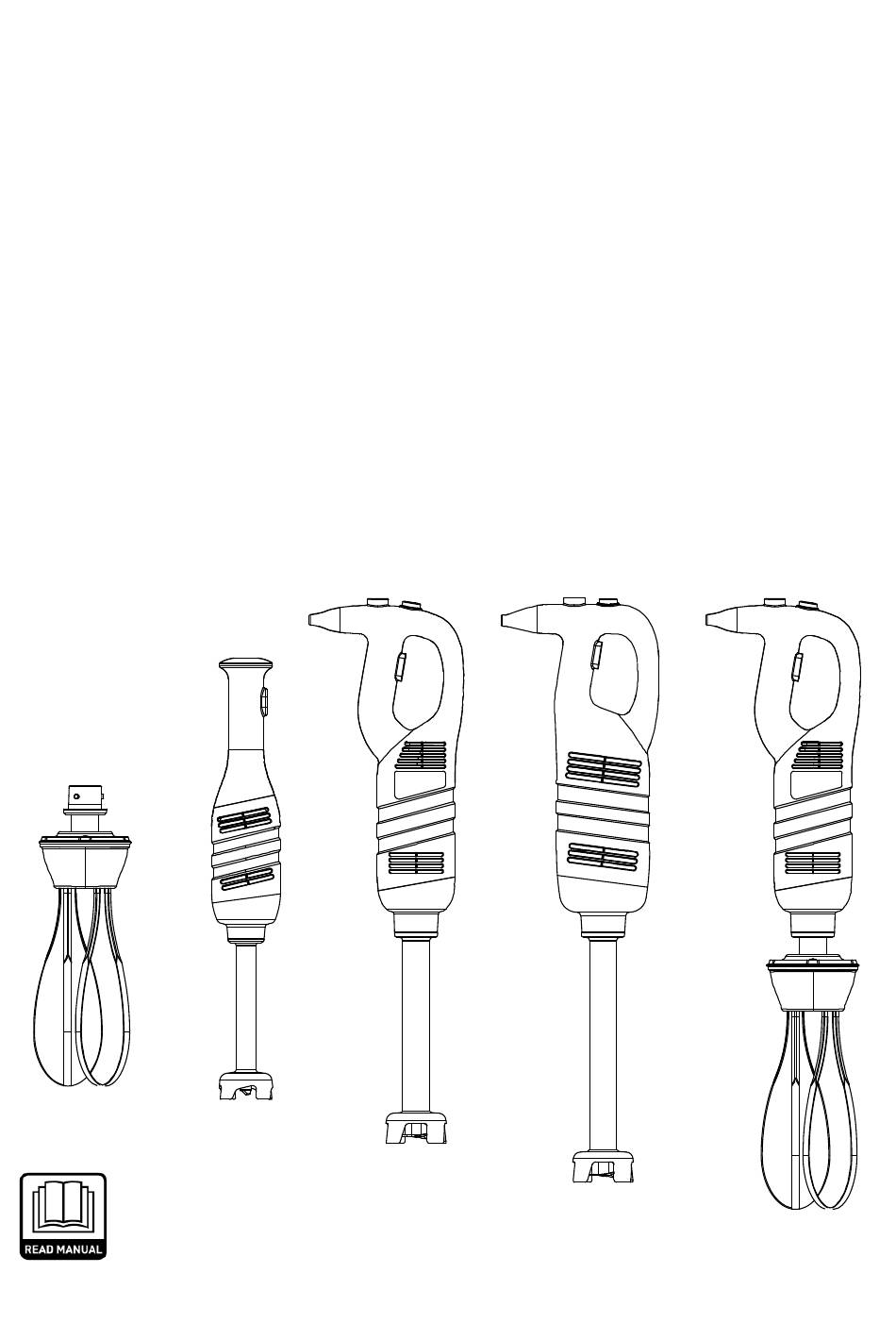

Page 1 INSTRUCTION MANUAL Original instructions for IMMERSION BLENDER (HAND MIXER) STHMMA16 / STHMMLA16 / STMA45 / STMLA45 / STMA65 / STMLA65 / STMA85 / STMLA85 Keep these instructions with the appliance. You should read this user manual carefully before using the appliance.
Page 2: Intended Use
1.3 The machine is intended for commercial and indoor use by trained and skilled personnel familiar with these instructions. The assortment is made up of 4 different sizes: STHMMA16/STHMMLA16/STMA45/STMLA45/STMA65/STMLA65/STMA85/ STMLA85. The machine body is built in PA66+GF30% and stainless steel for easy cleaning and maintenance.
Page 3 on the cord. 2.1.12 Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard. 2.1.13 Always keep an eye on the appliance when in use. 2.1.14 As long as the plug is in the socket the appliance is connected to the power source.
Page 4: Product Description
3 PRODUCT DESCRIPTION Parts of description STHMMA16/STHMMLA16/STMA45/STMLA45/STMA65/ STMLA65/STMA85/STMLA85...
Page 5: Main Technical Parameters
3.2 MAIN TECHNICAL PARAMETERS Voltage Model Power Speed Supply Weight (Length) (Diameter) STHMMA16 280W 20000RPM 1.50KGS 304mm Ø 75 mm STHMMLA16 280W 6000~20000RPM 1.50KGS 304 mm Ø75 mm STMA45 450W 16000RPM 2.60KGS 359 mm Ø 91 mm 100-120V~ STMLA45 450W 4000~16000RPM 2.60KGS...
Page 6 Model Remark Weight Length Diameter RBEA185 USE FOR STHMMLA16 ONLY 0.83KGS USE FOR STHMMA16/STHMMLA16 STHMMA16 0.52KGS Ø 25 RBEA25 USE FOR STMLA45/STMLA65/STMLA85 0.88KGS MSTA20 0.69KGS Ø 35 mm MSTA25 0.82KGS Ø 35 mm MSTA30 1.00KGS Ø 35 mm USE FOR...
Page 7: Installation
4.1.9 Warning! When the whisk is used, make sure to start appliance with low speed. 4.1.10 Warning! It is forbidden the use of the whisk in the machines with fixed speed. 4.1.11 Disconnect the machine’s socket from the electric before carrying out any cleaning or maintenance operations.
Page 8: Continuous Operation
4.4.2 STARTING AND STOPPING THE BLENDER 4.4.2.1 Check that the on-off button (No.3) is in the released position. 4.4.2.2 Connect the appliance to the power supply. 4.4.2.3 Insert the tube or whisk into the appliance. 4.4.2.4 Press and hold down the safety button (No.1) if the appliance has. 4.4.2.5 Press the on-off button (No.3), and the blender will start up.
Page 9 4.5 ASSEMBLING / DISMANTLING: The assembly / disassembly operations of every device of the appliance are performed with the appliance stop and with the plug disconnected from the socket. Assembly 1. Align and insert the pins (5) of the tube (3) or whisk (6) into the lock sleeve (2) of the machine body (1).
Page 10 Warning 1: The blender tubes and whisks are not suitable for the dishwasher! Warning 2: Blender tubes and whisk cannot be immersed thoroughly in water! 4.7 Storage 4.7.1 Before reassembling, make sure that all parts are dry. Before storing, remove all residues from the appliance and attachments, disconnect it from the supply and clean the appliance and its accessories thoroughly.
Page 11: Circuit Diagram
Circuit diagram STHMMA16 STHMMLA16 STMA45, STMA65, STMA85 STMLA45, STMLA65, STMLA85...
Page 12: Exploded View And Spare Parts Lists
Exploded view and spare parts lists STHMMA16/STHMMLA16 STHMMA16/STHMMLA16 spare parts list Part Name Part Name Part Name Part Name Power Cord Upper Housing 2 Torsion Spring Spline Sleeve Screw Pressing Board Bottom Housing 1 Aluminium Head Screw Plungers Strain Relief...
Page 13: Spare Parts List
STMA45, IB 450A V Spare parts list Part No. Part Name Part No. Part Name Part No. Part Name Power Cord On-off Switch PCB Panel Strain Relief Switch Osculant Shaft Bottom Housing Screw Rubber Interlocking Protector Motor Screw Pressing Board Motor Spacer Screw plunger Safety Button...
Page 14 STMA65, STMLA65, STMA85, STMLA85 Spare parts list Part No. Part Name Part No. Part Name Part No. Part Name Power Cord Safety Button Air Inlet Spacer Screw Waterproof Cap 1 Rubber Ring Upper Housing Pressing Board Spline Sleeve Waterproof Cap 2 Variable Button Aluminium Head Screw...
Page 15 MSTA20/MSTA25/MSTA30/BLD350-U/ MSTA40/BLD450-U/MSTA50/BLD550-U Spare parts list Part Name Part Name Part Name Spline sleeve Output axis Graphite ring Spline sleeve seal ring 304 S/S tube Graphite ring spring Oil Seal Bearing sleeve Convex ring Connect sleeve Knife protector Smooth blade Bearing Ceramic ring sleeve Rubber Mat Connect sleeve seal ring...
Page 16 RBEA185 RBEA25 RBEA185 / RBEA25 spare parts list Part Name Part Name Part Name Silicone rubber ring Upper cover Spline Needle bearing Down seal ring Φ8 Snap ring Screw Shaft sleeve Bearing washer Screw Lower cover Bearing Baffle plate Oil sealing Φ16 Snap ring Connect sleeve set screw...
