Assembly & Installation Instructions:
Bluetooth Switch for Sentinel
ST-BTSMAP-SW

Parts Included

A

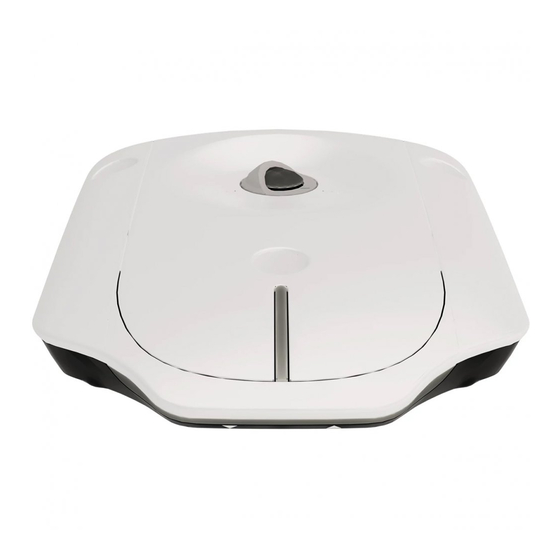

Bluetooth Switch
Qty: 1
1

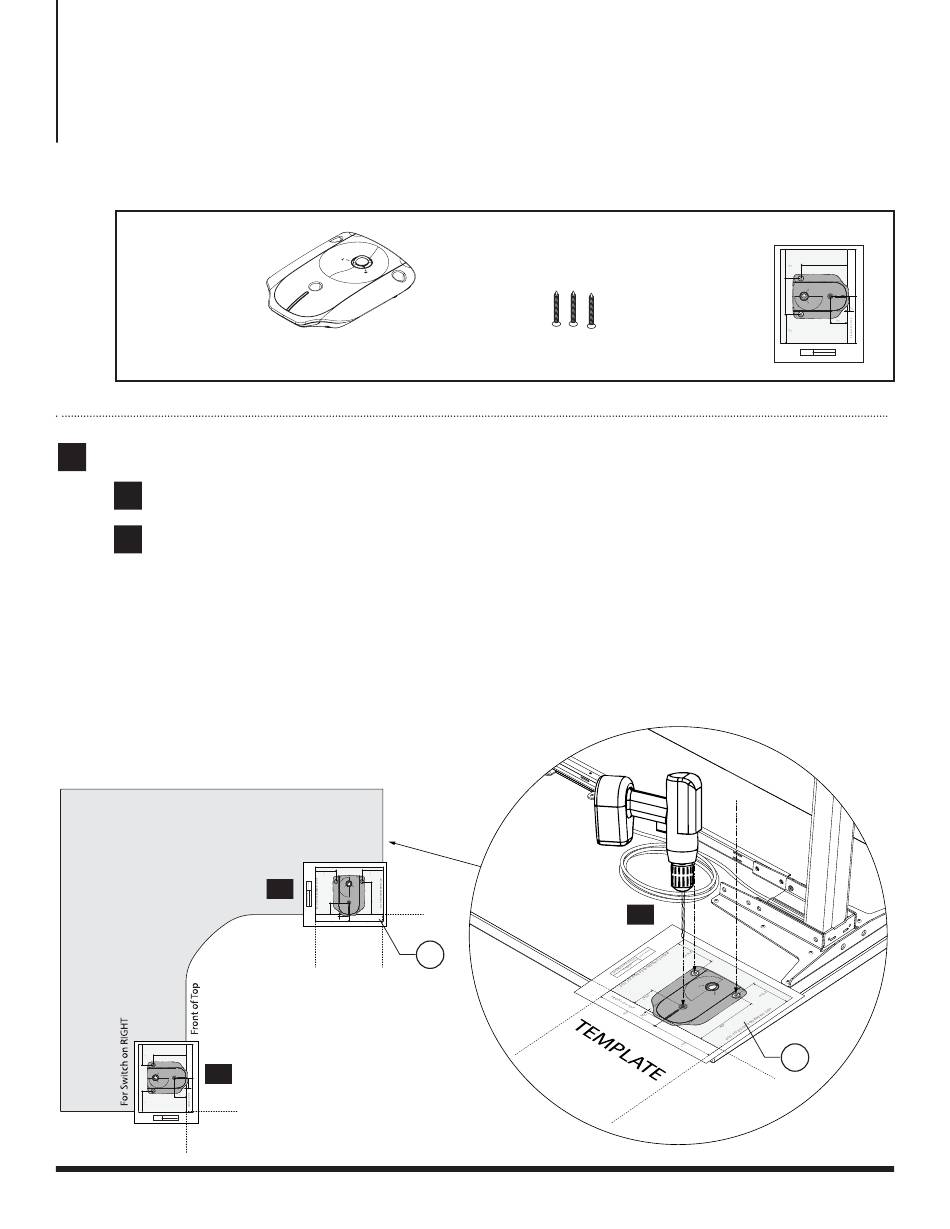

Position Switch to Worksurface

Position the Switch Housing using our template, be sure to print it on scale 1:1; mark the pilot holes.
a
Use a ³/ ³² " drill bit to drill pilot holes for the Switch. You may wish to mark your drill bit so you do not
b
drill any more than ¾" deep and damage tour worksurface top.
Do not drill all the way through worksurface!
NOTE:
Be sure:
Front of Top on both Template and Worksurface are lined up
Left underside edge on both Template and Worksurface are
lined up (for Switch on Left)
Right underside edge on both Template and Worksurface are
lined up (for Switch on Left)
Worksurface
LEFT UNDERSIDE EDGE OF TOP
4⅜"
2
"
4½"
1a
"
4½"
1
"
2
"
RIGHT UNDERSIDE EDGE OF TOP
SCALE 1:1
DO NOT SCALE DRAWING
Lined up
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
For Switch on LEFT
1a
Lined up
FRONT OF TOP
Front of Top
Lined up
Lined up
B
#8 × 1" Phillips Pan
Head Screw
Qty: 3
C
C
Template
Qty: 1
LEFT UNDERSIDE EDGE OF TOP
2
"
3½"
2
"
RIGHT UNDERSIDE EDGE OF TOP
TEMPLATE
1b
C
4⅜"
4½"
"
4½"
1
"
SCALE 1:1
DO NOT SCALE DRAWING
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-BTSMAP-SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Workrite Ergonomics ST-BTSMAP-SW

  • Page 1 Front of Top Lined up LEFT UNDERSIDE EDGE OF TOP 4⅜" " 4½" " 4½" " Lined up " RIGHT UNDERSIDE EDGE OF TOP SCALE 1:1 TEMPLATE DO NOT SCALE DRAWING Lined up Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 4...
  • Page 2 Apps reminder system RIGHT SETTING: Turn the Occupancy Sensor LEFT SETTING: Turn the Occupancy Sensor to face the “R” Right setting to face the “L” Left setting Workrite Ergonomics | 800.959.9675 www.workriteergo.com 2 of 4...
  • Page 3 Note: if you do not release the ▲UP and ▼DOWN buttons before the LEDs stop flashing, The Factory Reset will time-out and you must restart the reset from Step 1 For complete User Guide, GO TO www.workriteergo.com/sentinel-blue tooth-switch 1500498 Rev A Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 4...
  • Page 4 LEFT UNDERSIDE EDGE OF TOP 4⅜" " 4½" 3½" " 4½" " " RIGHT UNDERSIDE EDGE OF TOP SCALE 1:1 TEMPLATE DO NOT SCALE DRAWING Workrite Ergonomics | 800.959.9675 www.workriteergo.com 4 of 4...
