Summary of Contents for Wholesale TOLEDO

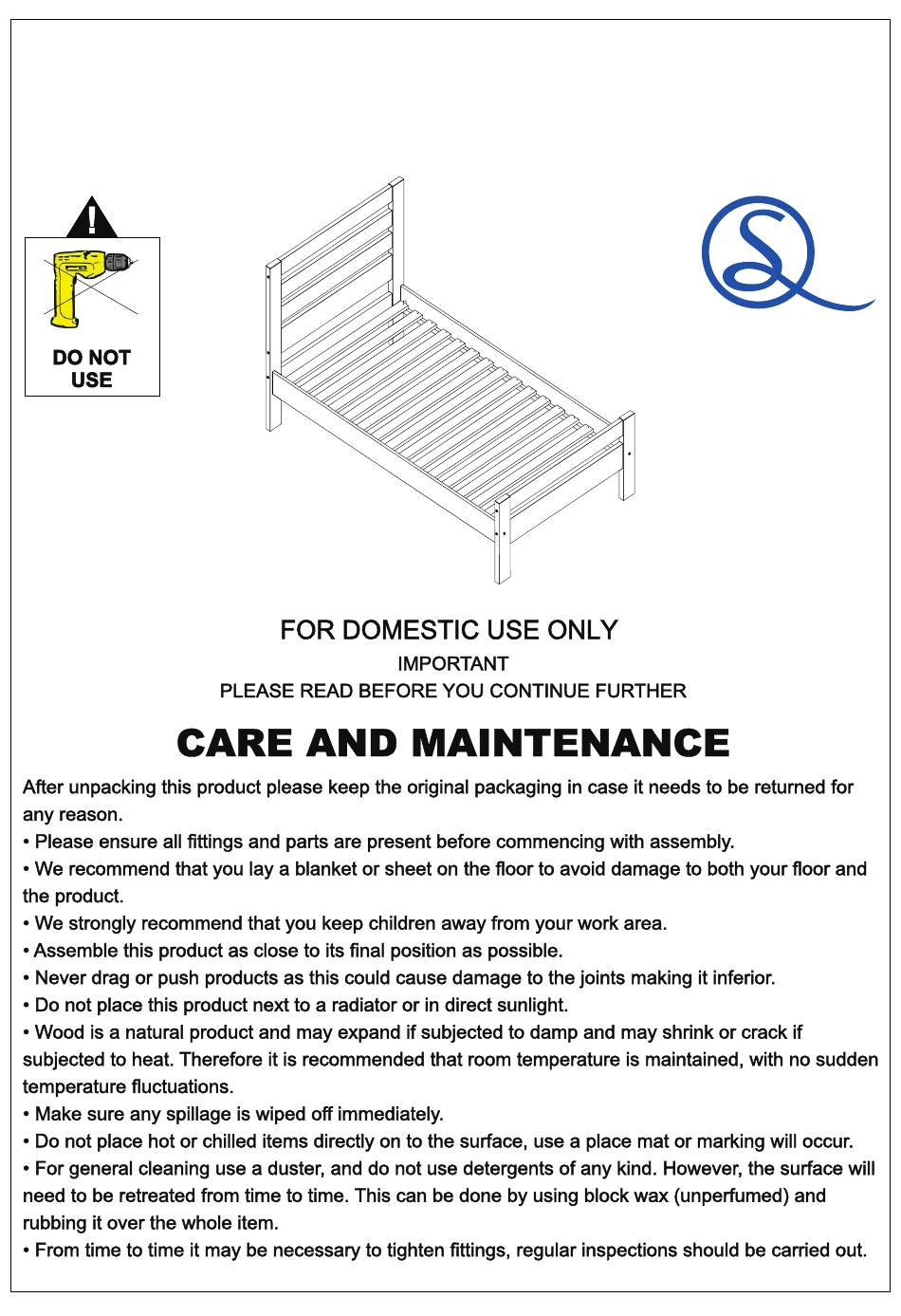

- Page 1 SEC/SH/12/21/DC1 GREY TOLEDO 3' BED ASSEMBLY INSTRUCTIONS Page 01...
-
Page 2: Parts List
SEC/SH/12/21/DC1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage. -
Page 3: Tools Required
SEC/SH/12/21/DC1 FITTINGS Ø8 x 50mm 1/4 x 80mm 17mm 17mm Ø7 x 130mm Ø4,0 x 30mm SPACER 84mm TOOLS REQUIRED Page 03... -
Page 4: Parts Required
SEC/SH/12/21/DC1 STEP 1 PARTS REQUIRED SIDERAIL HEADBOARD CROSSBEAM HARDWARE REQUIRED Ø8 x 50mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 2 PARTS REQUIRED HEADBOARD PANEL FOOTBOARD PANEL 10 - HEAD & FOOTBOARD TOP PANEL 11 - CENTRE HEADBOARD PANEL HARDWARE REQUIRED... - Page 5 SEC/SH/12/21/DC1 STEP 3 Ø7 x 130mm PARTS REQUIRED HEADBOARD PANEL Ø1/4 x 80mm HEADBOARD RIGHT POST HEADBOARD LEFT POST HEADBOARD CROSSBEAM HEAD & FOOTBOARD TOP PANEL CENTRE HEADBOARD PANEL HARDWARE REQUIRED Ø7 x 130mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
- Page 6 SEC/SH/12/21/DC1 STEP 5 Ø7 x 130mm PARTS REQUIRED SIDERAIL Ø1/4 x 80mm X X X X X X HARDWARE REQUIRED Ø1/4 x 80mm TOOLS REQUIRED STEP 6 PARTS REQUIRED SLATS HARDWARE REQUIRED Ø4,0 x 30mm SPACER 84mm TOOLS REQUIRED Page 06...
