Polycom®
The Polycom® OBi312 is a single port FXO and single port FXS Analog Telephone Adapter (ATA) device packaged in
a compact chassis. This device can be used for the following purposes:
● Analog Backup line for incoming and outgoing calls on FXO port
● Fax machine on FXS port
● Local or remote phone on FXS port
The FXO and FXS ports operate independently of each other. For example, the OBi312 can provide phone or fax
service on the FXS port while simultaneously providing an analog back up connection on the FXO port.
Overview of the Installation Process
The OBi312 is normally pre-configured for use with our StarCloud+ telephone system. In most cases, the installer
can connect the OBi312 to the customer's network along with the appropriate analog telephone connections.
Connecting the OBi312
The rear panel of the OBi312 has a power connection, USB connection, two RJ11 telephone connectors, and two
RJ45 network connectors, as shown in the following picture:
Copyright © 2019, Star2Star Communications
Communications, LLC. All logos and company names are trademarks or service marks of their respective companies.
A TA Device Installation Guide
OBi312 Rear View
August 2019
®
, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star
OBi312
Advertisement
Table of Contents
Summary of Contents for Star2Star Polycom OBi312
- Page 1 RJ45 network connectors, as shown in the following picture: OBi312 Rear View August 2019 ® Copyright © 2019, Star2Star Communications , LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications, LLC. All logos and company names are trademarks or service marks of their respective companies.
- Page 2 Connection for an FXO (Office) device, usually an analog phone line for backup operation. Phone Connection for an FXS (station) device, such as an analog telephone or a fax machine. Not supported in Star2Star configuration. Connection for a laptop computer. Use this connection for off-site configuration. Internet Connection to the local network (if used as a local device) or to a WAN connection (if used as a remote device).

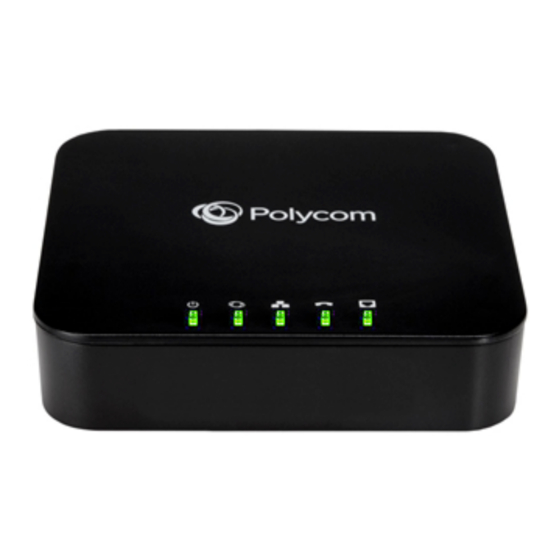

- Page 3 Configure as a Remote Device The OBi312 can operate as a remote device, but it requires installation-specific configuration information to operate. For assistance, contact Star2Star Technical Support. OBi312 Status Lights The following status lights are available on the OBi312 front panel:...
