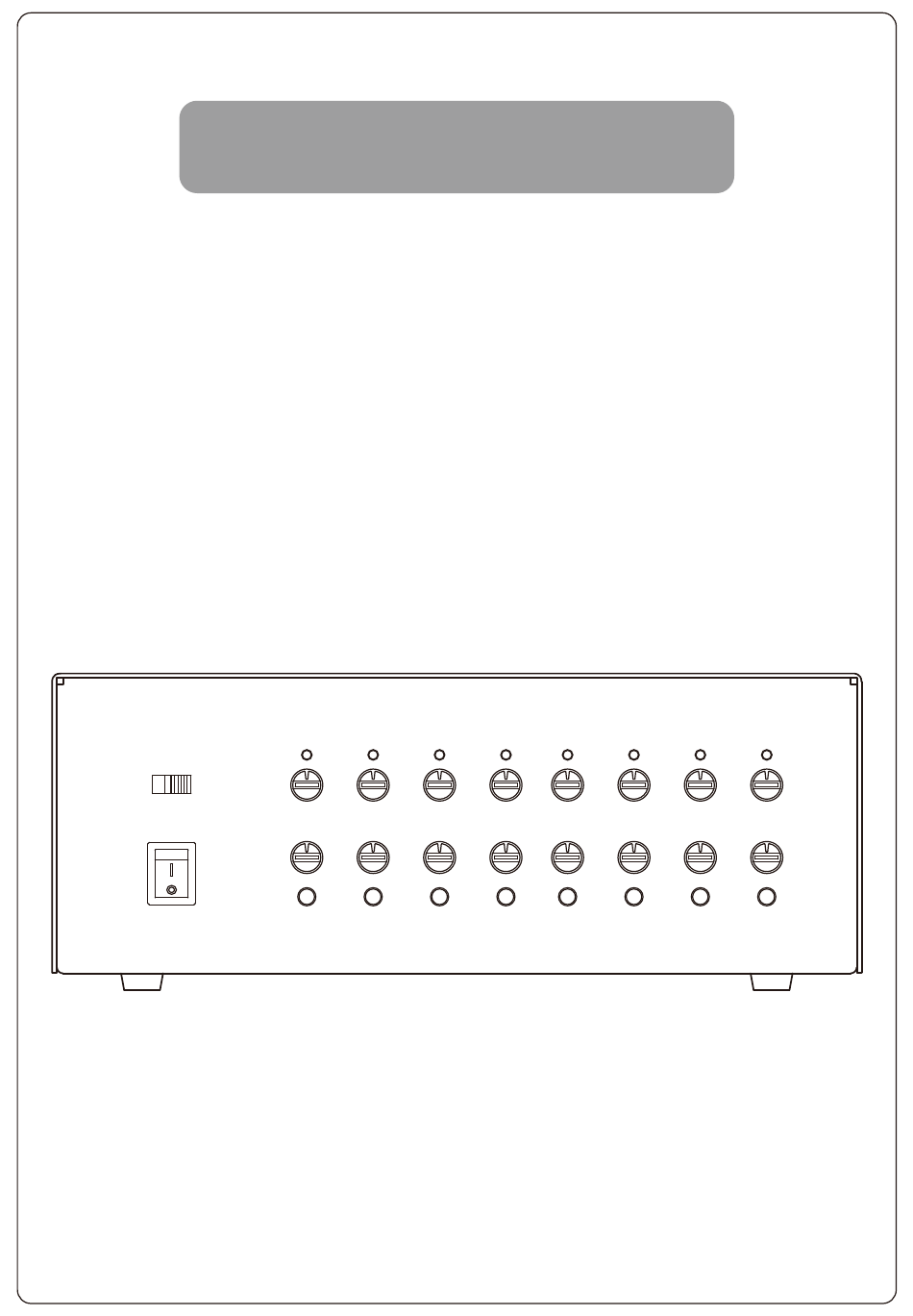

OPERATING MANUAL
8CH LED CONTROLLER
ML-08XX_CONSTANT VOLTAGE(PWM制御)
8CH LED CONTROLLER
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
MANUAL/REMOTE
COARSE
POWER
FINE
TEST
Light is Vision
Please read the instruction manual before using the product.
Please keep the manual properly.
Advertisement
Summary of Contents for MASTERLED ML- 0812 C Series
- Page 1 OPERATING MANUAL 8CH LED CONTROLLER ML-08XX_CONSTANT VOLTAGE(PWM制御) 8CH LED CONTROLLER MANUAL/REMOTE COARSE POWER FINE TEST Light is Vision Please read the instruction manual before using the product. Please keep the manual properly.
-
Page 2: Specification
Things to know before using the product First, be sure to read the warnings and cautions for safety and use the product properly. The image on the manual may differ from the actual product. When purchasing and using other products that are not supplied by us, it could cause shortening the life of the product and defects. - Page 3 Name and functions of ML-08XX_CONSTANT VOLTAGE(PWM制御) Front View 1.Mode Switch 3.Channel Indicator 8CH LED CONTROLLER MANUAL/REMOTE COARSE POWER FINE TEST Light is Vision 4.Level Control 2.Power Switch 5.Test Button 1.Mode Switch : MANUAL(Internal operation) / REMOTE(Remote settings : RS232, RS485) 2.Power Switch : MAIN POWER ON/OFF Switch 3.Channel Indicator : RED LED is ON when a relevant channel operates 4.Level Control : COARSE(16 stage), FINE(1 stage)
- Page 4 Name and functions of ML-08XX_CONSTANT VOLTAGE(PWM制御) Rear View RS232 RS485 100-240V 50-60Hz MADE IN KOREA LED Output Function LED + LED - RS232 1 3 5 2 4 Function RS232 RXD RS232 TXD 7 9 6 8 RS485 1 3 5 Function 2 4 RS485 D+ RS485 D - 7 9 6 8 Function...
- Page 5 Functions of ML-08XX_CONSTANT VOLTAGE(PWM制御) Remote Control 1) Level Control a) Brightness control of individual channels Prefix OP Code Channel 100's 10's Suffix Prefix : ‘ [ ’ OP Code : ‘ L’ Channel : ‘ 1 ’(CH-1) ~ ‘ 8 ’(CH-8) Level (100’s / 10’s / 1’s) : 000 ~ 255 (ASCII Code) Suffix : ‘...
- Page 6 Outside view Front View 8CH LED CONTROLLER MANUAL/REMOTE COARSE POWER FINE TEST Light is Vision Side View Rear View RS232 RS485 100-240V 50-60Hz MADE IN KOREA - 6 -...
- Page 7 - 7 -...
-
Page 8: Product Warranty Terms
Product Warranty The warranty period is one year from the date of purchase, and warranty period for A/S parts is three years. Parts for A/S mean parts of circuits and mechanisms except exterior.(according to our regulations) Model name Product name Year Month SERIAL NO.
