Summary of Contents for Prysmian PRY-CAM HOME MASTER

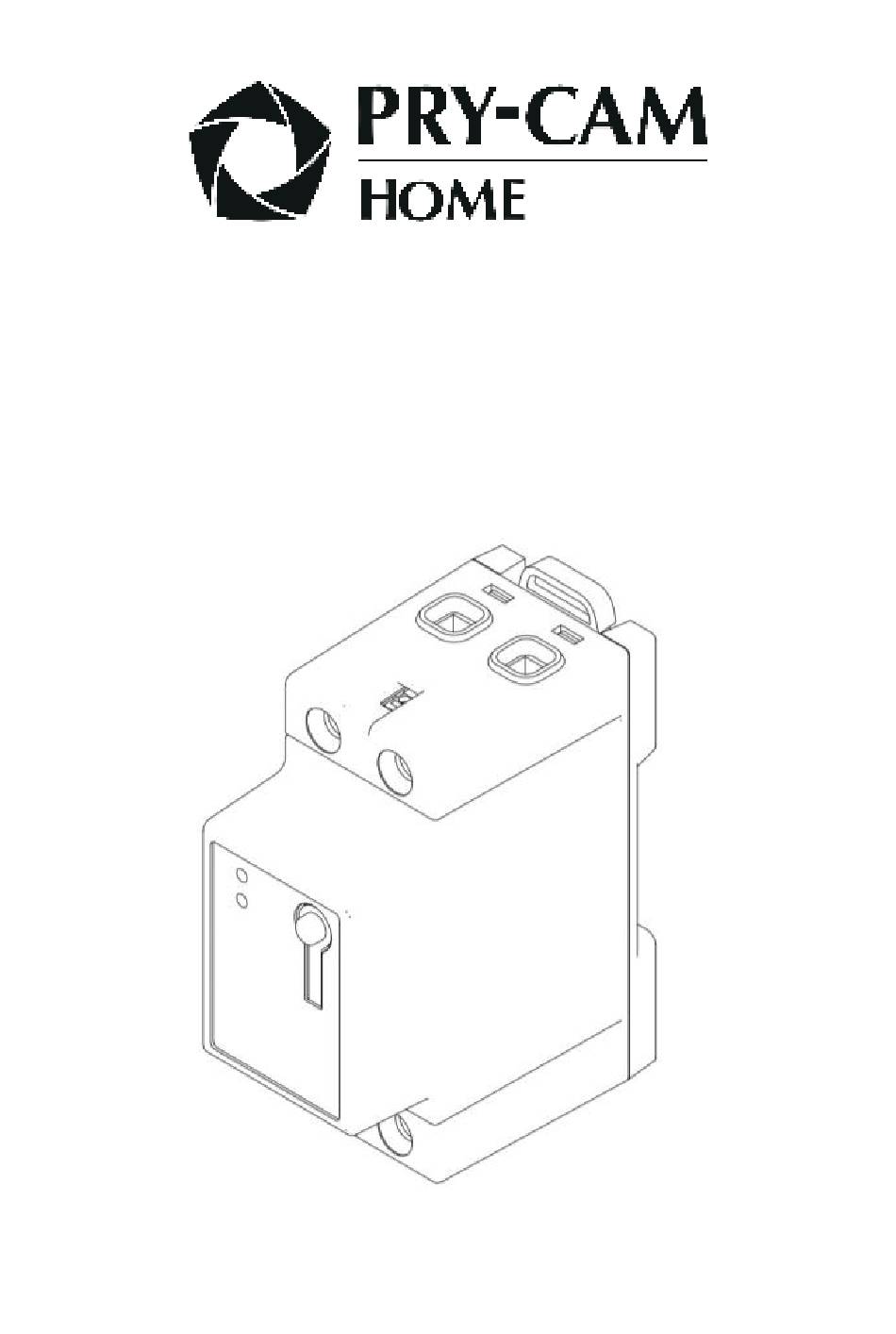

Page 1 User Manual MASTER - PCH-0001...
Page 2: Table Of Contents
Summary General instruction ..............4 1.1. Safety Information ............5 1.2. During the operation ............. 6 1.3. Passive protection ............7 1.4. Symbol table ..............8 Product drawing ............... 9 Technical features ..............10 3.1. General features ............10 Operating Instruction ............. 11 4.1.
Page 4: General Instruction
1. General instruction The installation and use of PRY-CAM Home devices requires compliance with the warnings contained in this chapter. To avoid damage to things and people, carefully read the following instructions and follow them at all times together with the standards and directives on electrical safety.
Page 5: Safety Information
WARNING Danger of fire due to dirty or oxidized contacts on undercurrent aluminium conductors The connection of aluminium conductors with dirty or oxidized contacts reduces the current carrying capacity of the undercurrent terminals, increasing the contact resistances. Components can overheat and catch fire as a result. •...
Page 6: During The Operation
PRY-CAM HOME is not an active electricity meter within the meaning of the European directive 2004/22/CE (MID). It cannot be used as a meter. The data detected by PRY-CAM HOME MASTER may differ from the data reported by the energy meter used for official counts.
Page 7: Passive Protection
Use particular care when working with live conductors or BUSBARs; Do not use the device near explosive gases, vapours or highly dusty areas; Use only accessory tools appropriate to the type of test to be performed. When the instrument is connected to the circuit, do not touch the unused and / or exposed terminals.
Page 8: Symbol Table
1.4. Symbol table Causes serious DANGER injury or death It can cause serious WARNING injury or death It can cause minor ATTENTION or moderate injuries It can cause damage NOTICE to property Information Note...
Page 9: Product Drawing
2. Product drawing Live in Neutral in Live out Neutral out STATUS LED COM LED Button Ground...
Page 10: Technical Features
STATUS LED • Green: Good electrical connection • Blinking red: Improperly connected (earth disconnected or phase-neutral reversed) Communication LED • Green: Wi-Fi Communication ready • Blinking orange: NB-IoT communication ready • Blinking red: Device not connected • Blinking violet: Professional mode activated 3.
Page 11: Operating Instruction
4.1. Mechanical assembly Mount the device on the DIN rail. Hook the device anchoring teeth on the underside of the DIN rail and pull the upper tab of the device until the PRY-CAM Home Master is in place. 4.2. Electrical connection DANGER Danger of death from electrocution Potentially lethal voltages are present in live components.
Page 12 DANGER Danger of fire Use only cable with operating temperature higher than 60°C, insulation voltage higher than 750V, maximum section of 6mm² e current capacity higer than maximum current available on the system. Assembly sequence: • Connect the live conductor L and the neutral conductor N to the device.
Page 13 Example of connection in which the main switch represents the main protection of the system.
Page 14: Device Configuration Via App
4.3. Device configuration via APP To correctly configure the PRY-CAM Home Master it is necessary to have a smartphone with internet connection and able to download the "PRY-CAM Home" APP from the market. To take advantage of all the features of the PRY-CAM Home Master, the device must be installed in an area with stable Wi-Fi internet coverage.
Page 15 In the dashboard, tap on “Add PRY-CAM Home”. Enter the data of the device, the contractual power of your system, the country in which the device was installed and set, if present, the Wi-Fi:...
Page 16 Enter the device data. Enter the contractual power and the average cost per kilowatt hour (you can found this information in your latest electricity bill).
Page 17 Tap on “Configure” and wait for the device to be configured. Make sure that your smartphone, during the registration phase, switches from the PRY-CAM Home Access Point connection to your Wi-Fi connection or to the cellular network connection. If the configuration is not successful, make sure you have entered the Wi-Fi data correctly and that you have not omitted any data required in the two screens.
Page 18: Dashboard
4.3.1. Dashboard By clicking on the device icon you can view in the dashboard. In the center is diplayed the graph of the power adsorbed by the grid. In the bottom of the screen is shown the instant energy consumption, the power quality, the appliances and wiring earth safety.
Page 19: Insights
4.3.2. Insights In this screen is shown the detail of every insight. For each of them it’s possible to see the live, daily, weekly or monthly trend of the graph.
Page 21: Notifications
In the screens are showed the following bulk: • Active power [kW] • Reactive power [kW] • Phase/neutral Voltage [V] • Current [A] • Estimate consumption [kWh] the estimate is calculated as the integral of the data shown over time. •...
Page 22 Sigla Type of alert Description Connection to Your system is powered by the electrical the electricity grid. grid AC 1 Disconnection Your system has been disconnected from from the the electrical grid. electricity grid Powered A load connected downstream of the system system is correctly absorbing power.
Page 23 Wi-Fi data Your device is connected to the internet connection ok WIFI 3 No Wi-Fi data The internet connection was lost. connection Your system is close to the limit of the contractual power available. Do not P80 4 Excess power connect other loads to the system to avoid disruptions Alert over.
Page 24: Switching To Professional Mode, Reset And Restart
• After turning off the system, disconnect all cables connected to the device. • Remove the device from the DIN rail by lifting the upper tab. 5. Accessories 2 x Cable Prysmian section 6�� , length 300mm (red, blue) 1 x Cavo di section 0,5��...
Page 25: Disposal And Maintenance
6. Disposal and maintenance For private households: Information on Disposal for Users of WEEE This symbol on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.
Page 26: Support
8. Declaration of conformity Prysmian Electronics S.R.L. declare that the name of the radio model PCH-0001 with the PRY-CAM HOME brand is in compliance to the Directive 2014/53 UE. The declaration of conformity complete text is available at the following web address: https://prycamhome.com/more/doc/DoC_PCH-0001.pdf...
Page 27 Prysmian Electronics S.r.l Via Chiese, 6 / 20126 Milano Tel +39 02 6449.1 www.prysmiangroup.com www.pry-cam.com...
