Summary of Contents for MRC UT-1001

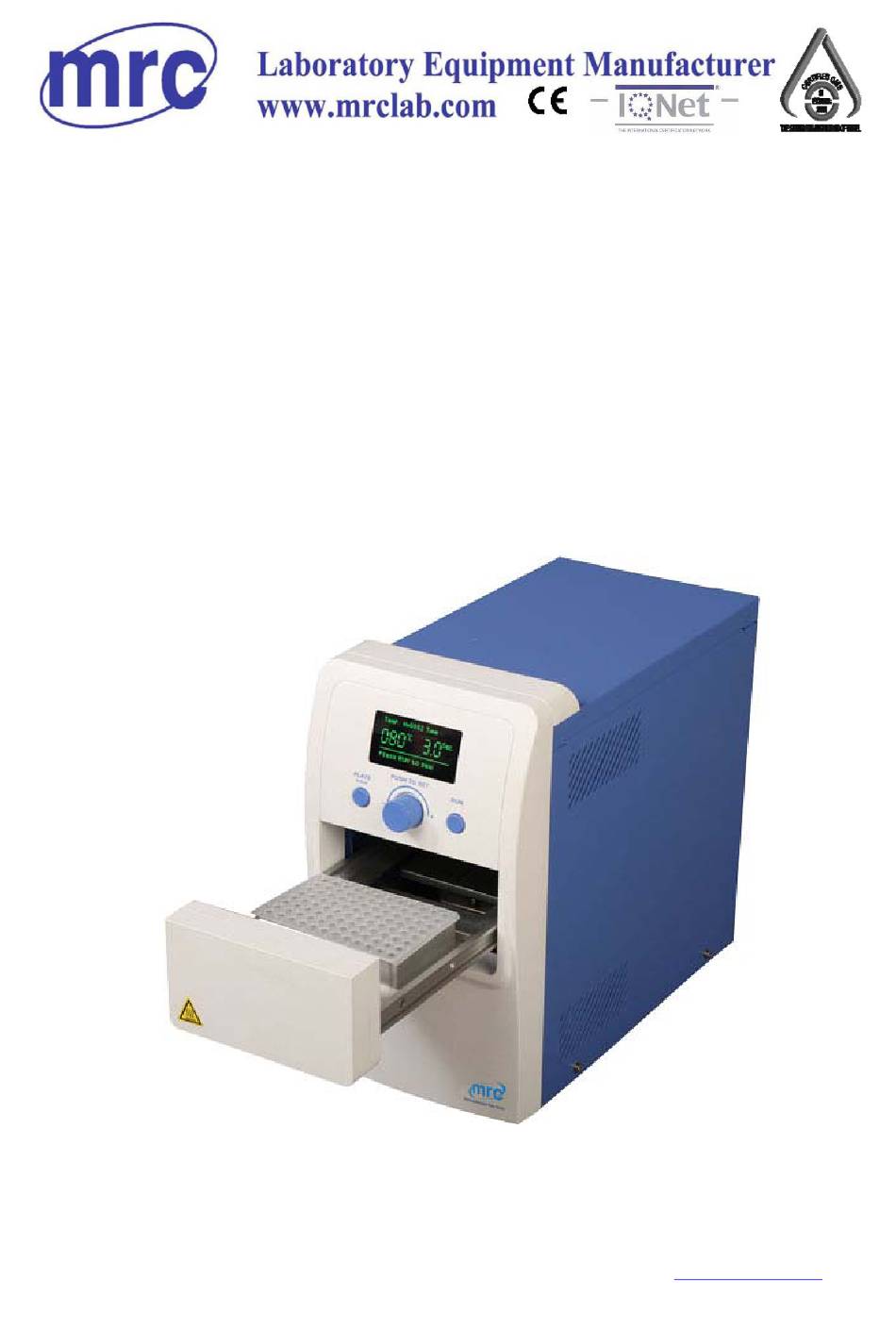

- Page 1 Operation Manual UT-1001 Semi Automated Plate Sealer PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.1.22...
- Page 2 Foreword Thank you for purchasing our products: Semi Automated Plate Sealer. This manual for users contains function and operation of the instrument. In order to use the instrument properly, please read this manual carefully before using the instrument. Opening Check Please check the instrument and appendix with the packing list when you first open the instrument packing case.
- Page 3 Safety Warnings and Guidelines 1. Important operation information of the security: Before the users’ operation, they should have a perfect conception of how to use the instrument. Therefore, read this manual carefully before using it. Operation before reading the manual is forbidden. Or may cause serious burn by heat even caused electric shock hazard during the runtime of instrument.
- Page 4 The instrument should be put in the place of low temperature, little dust, no water and no sun or strong lamp. What’s more, the place should be good aeration, no corrosively gas or strong disturbing magnetic field, far away from central heating, camp stove and other hot resource. Don't put the instrument in wet and dusty place.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 INTRODUCTION------------------------------------------------------------------------------ 1 CHAPTER 2 SPECIFICATIONS-------------------------------------------------------------------------------- 2 NORMAL OPERATION CONDITIONS:---------------------------------------------------------------- 2 THE BASIC PARAMETERS AND CHARACTERISTICS------------------------------------------ 2 CHAPTER 3 BASIC INSTRUCTIONS------------------------------------------------------------------------- 3 STRUCTURE OVERVIEW---------------------------------------------------------------------------------- 3 OPERATION PANEL---------------------------------------------------------------------------------------- 4 DISPLAY-------------------------------------------------------------------------------------------------------- 4 CHAPTER 4 OPERATION GUIDE----------------------------------------------------------------------------- 5 SEAL CONDITION SETTING------------------------------------------------------------------------------5 SEAL OPERATION-------------------------------------------------------------------------------------------6 HEATING PLATE CLEANING-----------------------------------------------------------------------------7 OTHER FUNCTION------------------------------------------------------------------------------------------ 8... -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction The UT-1001 Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer , the UT-1001 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimised to guarantee consistent result, eliminating sample loss. -
Page 7: Chapter 2 Specifications
Semi Automated Plate Sealer Operation Manual Chapter 2 Specifications Chapter 2 Specifications 1. Normal operation conditions: Ambient temperature: 10C 35C Relative humidity：≤70% Power：AC 100～120V，50Hz/60Hz 2. The basic parameters and characteristics Display OLED 80℃～200℃ Temperature setting Temperature accurate 1℃ 0.5s～10s，increased by 0.1 seconds Seal time Cooling time... -
Page 8: Chapter 3 Basic Instructions
Semi Automated Plate Sealer Operation Manual Chapter 3 Basic Instructions Chapter 3 Basic Instructions This chapter mainly introduces the structure, operation keys, and displays of the instrument, as well as preparatory work before starting. Please read this chapter before starting when uses this instrument for the first time. -
Page 9: Operation Panel
Semi Automated Plate Sealer Operation Manual Chapter 3 Basic Instructions 2. Operation panel Seal Key Setting Key Drawer Key 3. Display ─ ─... -
Page 10: Chapter 4 Operation Guide
Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Chapter 4 Operation Guide Seal condition setting Temperature Counter Time Status display 1.1 Setting the seal temperature Switch on the instrument. Then press the “PUSH TO SET” key for 3 seconds. When the display of temperature is beginning to glitter, and turn the “PUSH TO SET”... -
Page 11: Seal Operation
Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Appendix: Normal seal temperature and time Seal condition Seal condition Item Item setting setting Clear-Seal 170℃，2.5S Pierce-Seal 180℃，4S 175℃，3S 180℃，4S Peel-Seal Alfoil-Seal Above parameter just for reference, Sealing efficiency varies depending on the plate type used. So users can adjust according to practical situation Seal operation After setting up the seal condition, seal operation as follows:... -
Page 12: Heating Plate Cleaning
Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Note: If the display temperature isn’t reach the setting temperature. The instruments cannot seal after press the “RUN” key. 2.3 After finish the seal work, press the “PLATE In/Out” key, make the drawer shut up, then power off the switch on the back of the unit. -
Page 13: Other Function
Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Heater plate 3.5 Pushing the drawer which aim the slide on the both side into the deepest position slowly after clean up. Other function 4.1 No plate alarming When the unit is running, if no plate in the unit, it will display “No plate” and alarming. 4.2 Stand-by mode The unit will into “stand-by”... -
Page 14: Chapter 5 Troubleshooting Guide
Semi Automated Plate Sealer Operation Manual Chapter 5 Troubleshooting Guide Chapter 5 Troubleshooting Guide Problems and actions Common problem Possible cause Action(s) Check power supply No power plugged properly On/Off switch broken Change switch No display after power on The fuse is broken Change fuse（5X20 250V 3 A）... -
Page 15: Annex:wiring Diagram
Semi Automated Plate Sealer Operation Manual Annex Annex：Wiring Diagram （ for reference only, users won’t be informed if there is modification for this diagram ） Input Power AC 100～120V，50Hz/60Hz Fuse 250V 3A Φ5X20 Display Board Power Switch Heater Control Board Position Sensor Temperature Sensor X Motor...
