OLG Studio50 Panels Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Studio50 Panels
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Studio50 Panels and is the answer not in the manual?

Questions and answers

Summary of Contents for OLG Studio50 Panels

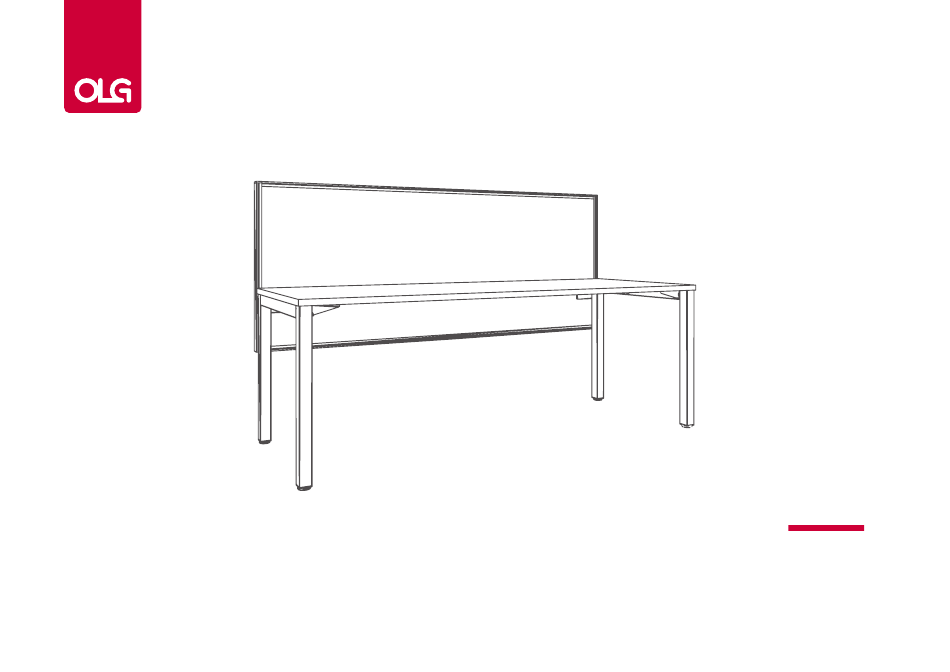

  • Page 1 Studio50 Panels Assembly Instructions...
  • Page 2 Fixing Studio50 Panel to Wall Assembly Instructions STEP 1: STEP 2: Fix wall start extrusion (STU50SID…./…) vertically to wall. Pack Wall Start Extrusion Each end of a Studio50 panel has 3 fixing holes at the bottom, but only 2 fixing to desired distance from wall.
  • Page 3 Fixing Studio50 Panel to Post Assembly Instructions STEP 1: STEP 2: Locking tabs should point left when facing you. Each end of a Studio50 panel has 3 fixing holes at the bottom, but only 2 fixing screws. The fixing screws at each end are in different positions. Use the end shown in fig.
  • Page 4 Fixing Studio50 Panel End Assembly Instructions STEP 1: STEP 2: Each end of a Studio50 Panel has 3 fixing holes at the bottom but only 2 fixing Raise the top of panel finish extrusion 50mm above top of panel, move Panel screws.
  • Page 5 Joining Two Studio50 Panels Assembly Instructions STEP 1: STEP 2: Each end of a Studio50 Panel has 3 fixing holes at the bottom but only 2 fixing Raise the panel with fixing screws located in top and middle fixing holes about screws.
  • Page 6 Joining Wing Screen Panels Assembly Instructions STEP 1: STEP 2: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel. Align panel slightly to the left of the post, move panel to your right to lock in position and level the panel.
  • Page 7 Cable Management Ducting Assembly Instructions STEP 1: STEP 2: Fit join lock (A) (STU50SLCK) then end cap (B) (STU50ECP/…) to top of panel. Align panel slightly to the left of the post, move panel to your right to lock in position and level the panel.
  • Page 8 Cable Management Ducting Assembly Instructions STEP 5: STEP 6: Clip the ducting cover and plastics in to the bottom of Studio50 panel. Option for wall power outlet. STEP 7: STEP 8: Typical wiring setup for double sided desking. Typical wiring setup for workstation pods. Studio50 Assembly Instructions...
  • Page 9 Fixing Cubit Desk Brackets STU50CBSB Assembly Instructions STEP 1: STEP 2: Attach one bracket to each end of screen using screws provided with bracket. Attach Studio50 panel to desk frame. Tip: Fix bracket point ‘A’ 75mm lower than desired screen projection above worktop. STEP 3: Fully tighten desk screws.
  • Page 10 Fixing Desk Clamp Brackets STU50CBSB Assembly Instructions STEP 1: STEP 2: Slide each bracket up the panel ends. Locate the top of each bracket 500mm from the top of the Studio50 screen. Note: Clamp can accommodate 25mm and 75mm thicknesses by rotating Fully tighten screws to lock bracket in place.
  • Page 11 Fixing Electric Highrise Brackets CBEASB Assembly Instructions STEP 1: STEP 2: Remove Studio50 End Caps, firstly slide brackets down screen, then slide Screen Lift and slide screen so the brackets clamp over the desk modesty. Stabiliser brackets down screen. Lightly tighten brackets 490mm from floor. STEP 3: STEP 4: Slide the Screen Stabiliser Bracket up.
  • Page 12 Fixing Desk Mounted Brackets STUSWB60 Assembly Instructions STEP 1: STEP 2: Place brackets in the position shown below. Tighten the screws so that the With brackets in place, lift screen above the desk, and slide Studio50 panel onto bracket can still move a little. brackets.
  • Page 13 Fixing Shelf & Brackets STUSWB150 Assembly Instructions STEP 1: STEP 2: Fix top hook (STU50ACS/Z) to shelf extrusion. Slide 150mm brackets into shelf extrusion, and tighten screws with both brackets in the same location. STEP 3: STEP 4: Fully tighten screws through 150mm brackets into shelf. Clip top hooks into screen.
  • Page 14 Studio50 for Straightline Desking Assembly Instructions STEP 1: STEP 2: Assemble frames & rails together, loosely (1 turn from tight). Fix desk top to frame with 5mm overhang over metal frame. Where desktops butt together, make sure these are fitted tight together. STEP 3: STEP 4: Assemble screen brackets firmly to frames (inside of end leg frame).
  • Page 15 Studio50 for Straightline Desking Assembly Instructions STEP 5: STEP 6: Place the first screen on desk frame/screen brackets, with the end of the screen Firmly screw large bolts through brackets into the base of screen. overhanging the work top by 5mm. STEP 7: STEP 8: Slide the second screen down onto first using the auto lock system to fix the...
  • Page 16 Studio50 for Straightline Desking Assembly Instructions STEP 9: STEP 10: Slide this wing screen end panels down the join between the centre screens. Slide the wing screens onto the end panels. Line the bottom of this panel with the top of the work surface, and firmly tighten in place.
  • Page 17 Fixing Freestanding Feet STU50FSF40 Assembly Instructions STEP 1: STEP 2: Lift screen and slide freestanding foot fig 1 up on to screen from the bottom, as Fully tighten bracket screws. shown in fig 2. Studio50 Assembly Instructions...
  • Page 18 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
