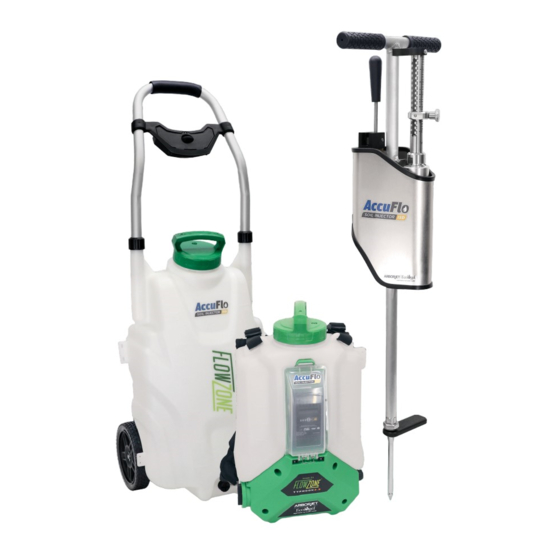

ARBORJET AccuFlo 070-3100 User Manual

Soil injector isd

Hide thumbs

Table Of Contents

Quick Links

Download this manual

USER MANUAL

Table of Contents

Need help?

Do you have a question about the AccuFlo 070-3100 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARBORJET AccuFlo 070-3100

Page 1 ® USER MANUAL...
Page 2: Table Of Contents
Table of Contents What’s Included in your AccuFlo Soil Injector ISD Kit…………………………. 3 Modified Backpack Sprayer Overview.……………………………………….. 4 Unboxing: Initial Assembly Steps……………………………………………. 5 How to Operate the System………………………………………………… 8 How to Flush/ Clean/ Store the System…………………………………..12 Determining Volume and Number of Injection Sites…………………………. 13 Calculating Dosage of Injection Sites……………………………………..
Page 3: What's Included In Your Accuflo Soil Injector Isd Kit
What’s Included in your AccuFlo Soil Injector ISD Kit AccuFlo Soil Injector ISD Kit (4 Gallon Backpack) – (070-3100) AccuFlo Soil Injector ISD Kit (9 Gallon Roller Tank) – (070-3200) Soil Injector ISD Device (Box 1) • Modified 5 Speed FlowZone Backpack •...
Page 4 Modified Backpack and Roller Tank Sprayer Overview Bulkhead Drain Line Quick Disconnect FlowZone Typhoon 2.5V 5-Position Variable 4-Gallon Sprayer Supply Line FlowZone Monsoon 2.5V 5-Position Variable 9-Gallon Rolling Sprayer Variable Speed Adjustment Knob...
Page 5 Unboxing the Soil Injector: Initial Assembly Steps 1. Slide the footplate over the base of the lance 2. Twist extender and nozzle tip onto threaded lance adapter using provided Footplate Wrench 3. Position footplate facing depending on preference and tighten footplate nut to secure in place AccuFlo Soil Injector ISD Training Manual...
Page 6: Unboxing: Initial Assembly Steps
Unboxing: Initial Assembly Steps 4. Assemble Backpack/ Roller Tank and Insert Battery. Ø Battery may require charge before operation 5. Connect Tubing coming from backpack to the female hose adapter on the supply line 6. Connect tubing coming from the lance to the quick- connect bulkhead fitting on the backpack AccuFlo Soil Injector ISD Training Manual...
Page 7 Before Your First Application… Arborjet strongly recommends testing your equipment with water or CLEAN-jet™ before attempting to inject any of our approved Formulations. If the box your kit came packaged in does not have security tape, or appears to have been opened or tampered with, do not use the equipment, and contact your Arborjet Distributor for replacement instructions.
Page 8 How to Operate the System – Setting the Dose 1. Set the injection dose by loosening the dose collar knob and aligning with the desired volume in mL per injection site. When setting dosage, make sure the top of the collar lines up with the desired dosing size This is set for 130mL Dose Collar Knob...
Page 9 How to Operate the System – Activating the Backpack 3. Position Toggle Valve in the neutral location (center) before turning on the backpack. Valve toggle in neutral position 4. Activate Backpack pump by turning the Variable Speed dial clockwise to the highest setting. Fluid level must be above the supply and drain line ports in order for the backpack to run.
Page 10 How to Operate the System – Prime the System 5. Now that the dose has been set, and lines primed, you can begin to fill dosing chamber by moving the toggle valve to the left into the “fill” position. Valve toggle in fill position When system is in the “fill”...
Page 11: How To Operate The System
How to Operate the System 7. Move toggle valve to the right into the “inject” position to recycle product back into the backpack. valve toggle in inject position When system is in the “inject” position, the cylinder fluid piston and backpack will activate simultaneously, injecting product out of the nozzle and priming the supply line.
Page 12 Cleaning the AccuFlo Soil Injector ISD System CLEAN-jet Solution is an all-purpose cleaner and lubricant suitable for all Arborjet injection devices. Recommended Flushing Process 1. Dispose of any remaining product in the FlowZone backpack according to product label or SDS sheet instructions 2.
Page 13: Determining Volume And Number Of Injection Sites
OR measure circumference and divide by Pi (3.1415). Arborjet DBH” Measuring Tape 2. Carefully read label of Product to be Injected Use Tree DBH”, canopy size, or cubic volume of Shrub to determine total injection volume for treatment application.
Page 14: Calculating Dosage Of Injection Sites
For this example, I would suggest 16 sites @ a dose of 120mL = 1920mL For further clarification, or assistance in determining injection site volume, contact your local distributor or Arborjet Regional Technical Manager. Arborjet.com/rtm AccuFlo Soil Injector ISD Training Manual...
Page 15: How To Convert To Spray And Drench Applications
How to Convert to Spray and Drench Applications The modified FlowZone variable speed backpack can be easily converted for spray and drench applications. Make sure backpack is turned off before initiating the steps below 1. Have a bucket nearby in case there is any remaining fluid in the drain line and disconnect supply line junction and the Quick Disconnect fitting from the Bulkhead port.
Page 16: Troubleshooting Guide
In addition to the tips below, our YouTube channel is filled with informational videos that can help with issues that may arise while using your AccuFlo Soil Injector ISD. YouTube.com/arborjet Difficulty Injecting into compact or clay soil Lift the device up about an inch so there is space under the nozzle and §...
Page 17: Exploded Views And Part Numbers
Exploded Views & Part Numbers...
Page 18 Contacting Arborjet Arborjet, Inc. 99 Blueberry Hill Rd. Woburn, MA 01801 Phone: 781-935-9070 Fax: 781-935-9080 info@arborjet.com @arborjet...
