User manual
Smartphone photo adapter
TSSMH-Del
With this adapter, current smartphones can be mounted to the eyepieces of binoculars, spotting
scopes, microscopes and telescopes. Mounting the phone directly to a tripod is also possible. This
allows magnified photos or (mounted to a tripod) smooth panorama exposures or photos in low light
conditions.
1. Fitting the adapter to the smartphone

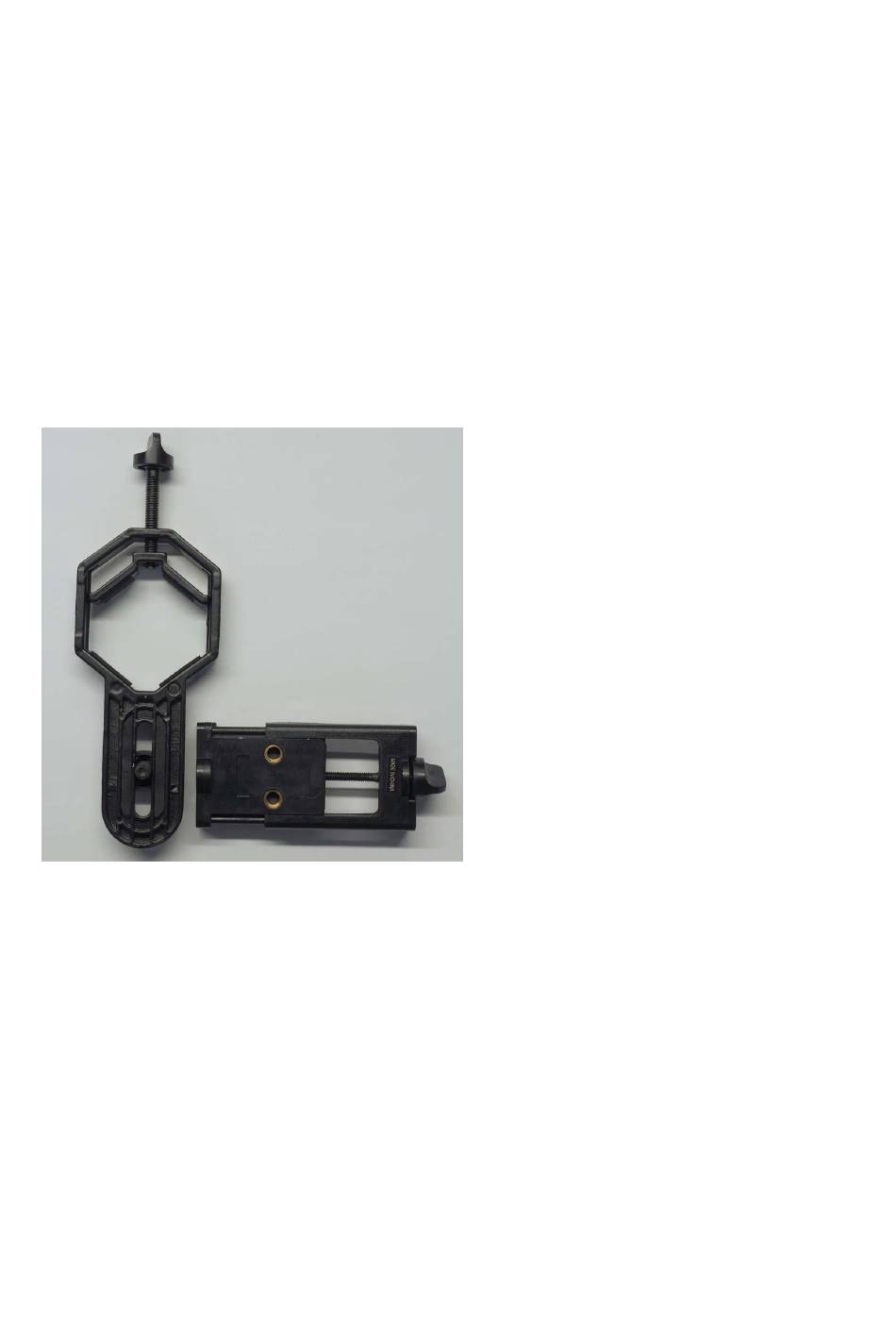

The adapter consists oft wo parts: the eyepiece part (left in the picture) and the smartphone holder
(right in the picture). The smartphone holder can be mounted in two heights using the brass thread
bores, according to the length of the phone. Additionally, it can be mounted with the locking screw
to the left or to the right, depending on the position of the lens on the phone.
While fixing the phone inside the jaws, please take care that no sideward buttons are pressed
unintentionally.
Advertisement
Table of Contents
Summary of Contents for Teleskop-Service TSSMH-Del
- Page 1 User manual Smartphone photo adapter TSSMH-Del With this adapter, current smartphones can be mounted to the eyepieces of binoculars, spotting scopes, microscopes and telescopes. Mounting the phone directly to a tripod is also possible. This allows magnified photos or (mounted to a tripod) smooth panorama exposures or photos in low light conditions.
- Page 2 Here an example with an iPhone XR 2. Mounting the adapter to an eyepiece Align the adapter with the smartphone so that its lens sits directly in line behind the eyepiece. For a good framing, it may be useful to place the lens not too close to the eyepiece. See the following pictures: 3.
- Page 3 We hope you enjoy this article! If you have any questions or comments, please feel free to get in touch with us: Teleskop-Service GmbH Von-Myra-Strasse 8 85599 Parsdorf Germany Phone: +49 89 99228750 info@teleskop-service.de www.teleskop-express.de...
