Montageanleitung
®
colorPAD
Stellwand
Sie fördern mit unseren Akustikpaneelen ein konzentriertes und effektives Arbeiten sowie eine gesunde
Arbeitsatmosphäre im Raum. Die biegsame colorPAD Stellwand können Sie mühelos schnell und flexibel
positionieren.
®

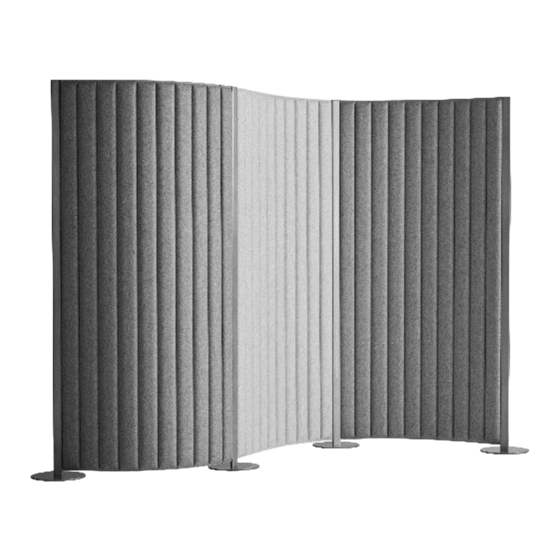

colorPAD
divider
With our acoustic panels, you promote concentrated and effective work as well as a healthy working
atmosphere in the room You can easily move the flexible colorPAD divider into any, position quick and
flexible.
LIEFERUMFANG

DELIVERY SCOPE

 1x colorPAD
®
Stellwand
 1 x Befestigungs-Set
Mounting set
-
1 x Aluminiumprofil mit Innensechskantschrauben
Aluminum profile with hexagon socket screws
-
1 x Bodenplatte mit Einsteckern
-
Kunststoff Abdeckkappe
Base plate with plugs
plastic cover cap
MONTAGEWERKZEUG
 Inbusschlüssel
allen key

MOUNTING TOOLS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILENTEC 3D prism wall panel and is the answer not in the manual?

Questions and answers

Summary of Contents for BWF Group SILENTEC 3D prism wall panel

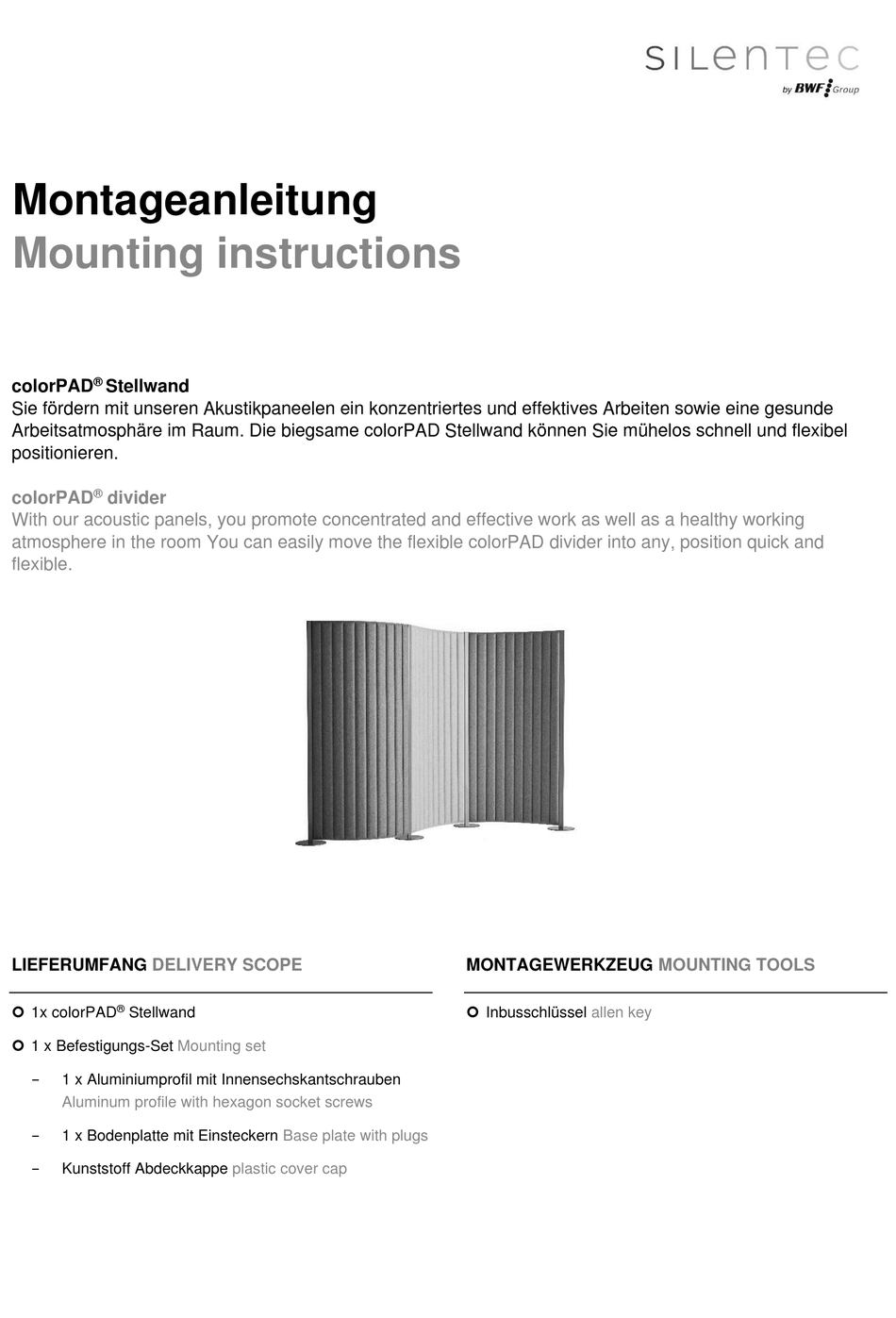

  • Page 1 Montageanleitung Mounting instructions ® colorPAD Stellwand Sie fördern mit unseren Akustikpaneelen ein konzentriertes und effektives Arbeiten sowie eine gesunde Arbeitsatmosphäre im Raum. Die biegsame colorPAD Stellwand können Sie mühelos schnell und flexibel positionieren. ® colorPAD divider With our acoustic panels, you promote concentrated and effective work as well as a healthy working atmosphere in the room You can easily move the flexible colorPAD divider into any, position quick and flexible.
  • Page 2 MONTAGEANLEITUNG MOUNTING INSTRUCTIONS Packen Sie die Stellwand aus und legen Sie sie auf den Boden. Unpack the divider wall and lay it on the floor. Fädeln Sie die Kante der Trennwand mindestens bis zur Hälfte in die Nut des Profils. Thread the edge of the partition at least halfway into the groove of the profile Stecken Sie das Profil auf die vorgesehenen Einstecker und schrauben sie diese mit den beiliegenden Schrauben fest.
