Columbus P-7 Pro Quick Start

7
Professional HD GNSS Receiver
Quick Start
CAUTION
Thank you for choosing our product.
This manual is intended to guide you through the safe and
correct use of the product and its accessories, avoiding improper
operations that may result in injury of yourself or any other
person or cause device damage.
As a precision electronics, the product contains no component
that can be repaired by your own. Any attempt to disassemble
the product will void the original manufacturer's warranty.
The protection class of the external active antenna is IP66,
which can work normally in all-weather environments such as
rain, snow and high dust, but do not immerse the antenna
completely in water. The main unit of the P-7 Pro is not
waterproof.
GB

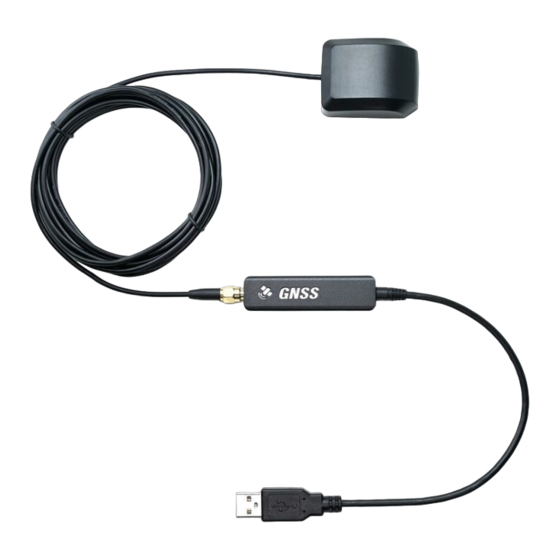

Parts Description

Power Lamp
SMA Connector (Female)
USB Type-A Connector
External Active Antenna
(Magnetic Mount)
SMA Connector (Male)
Power Lamp
• Power on: Always on
The positioning status of the satellite needs to be
viewed on the terminal device.

Steps to Use

Bluetooth Lamp
Bluetooth Lamp
• Connected: always on
• Disconnected: off
1
Connect the P-7 Pro to the external active antenna, and
tighten the antenna connector clockwise.
Place the external active antenna in a position with a good
view of the sky, such as the roof of the car, the top of the
surveying pole.
The main unit of the P-7 Pro is not waterproof.
The placement of the antenna significantly affects the
accuracy of the tracks. For more placement
suggestions, please visit:
cbgps.com/p7/q
2
