Summary of Contents for iB COLUMBO
- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Welcome Connecting Cleaning Resources Support/Software SDK Download Link Scanning Finger Conditions Hand Orientation Correct Placement – Top View Finger Contact Correct Placement – Side View Flat Scanning Finger Placement Warranty Compliance © 2021 Integrated Biometrics, Inc. All rights reserved. -
Page 3: Welcome

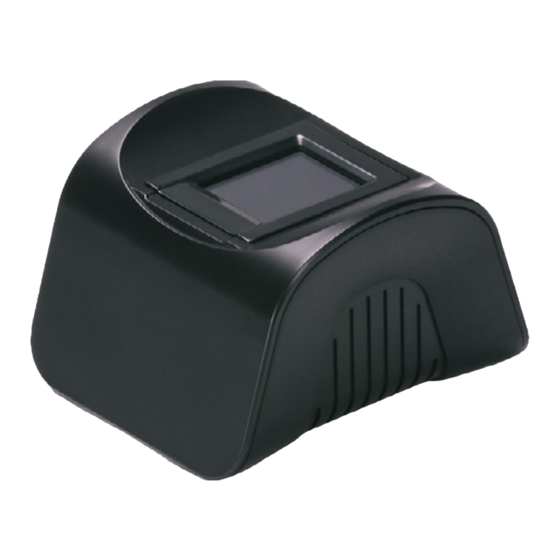

Thank you for purchasing Columbo, Integrated Biometrics’ patented Light Emitting Sensor (LES) fingerprint scanning solution. Columbo is the most durable, highest performance FAP 60 FBI Appendix F-certified single-print live scanning solution. Please read this manual thoroughly before using your Columbo to review proper steps for unit operation and capture processes. -
Page 4: Connecting
1. Download and install the latest IBScanUltimate SDK 2. Integrated Biometrics provides a variety of test applications for demonstration. IBScanUltimate SDK includes demonstration applications for supported platforms and source code for ease of deployment. CLEANING AND DISINFECTION For proper cleaning and disinfection of IB products, visit: https://integratedbiometrics.com/cleaning... -
Page 5: Resources
If you have any questions, please contact your Integrated Biometrics reseller or the IB team. We’ll be glad to provide assistance during solution development. DOWNLOAD SDK www.integratedbiometrics.com/sdk-downloads... -
Page 6: Scanning
SCANNING FINGER CONDITIONS VERY MOIST FINGERS • Result: Images too dark, poorly defined. Indicates too much moisture on the fingers. • Solution: Dry the fingers with a towel or cloth before fingerprint capture. • The resultant images will be lighter and the NFIQ quality scores will improve. -
Page 7: Hand Orientation
HAND ORIENTATION CORRECT PLACEMENT – TOP VIEW Platen Bezel Your finger should be facing the cable. It should be firmly placed on the platen and bezel. -
Page 8: Finger Contact
FINGER CONTACT CORRECT PLACEMENT – SIDE VIEW Your finger should be Bezel facing the cable. It should be firmly placed on the platen and bezel. Platen... -
Page 9: Flat Scanning
FLAT SCANNING FINGER POSITION Platen Bezel Ready to scan Scan finished. Put your finger firmly on the bezel for proper contact. -
Page 10: Warranty
WARRANTY All products are guaranteed for 12 months from the date of delivery. Additional year warranties available. Check with your dealer. See the warranty here: https://integratedbiometrics.com/warranty COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 11 WORLD-CLASS TECHNOLOGY LES technology empowers energy-efficient, compact, and durable biometric scanning solutions unique to the market. Ready to deploy in any environment under any conditions, Integrated Biometrics’ scanners are the choice for high performance applications. Integrated Biometrics, Inc. +1 (888) 840-8034 · technical@integratedbiometrics.com www.integratedbiometrics.com...
