BUCK AND BOOST VOLTAGE TRANSFORMER
SBC-BuckBoost01
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
Advertisement
Table of Contents
Related Manuals for Joy-it SBC-BuckBoost01
Summary of Contents for Joy-it SBC-BuckBoost01
- Page 1 BUCK AND BOOST VOLTAGE TRANSFORMER SBC-BuckBoost01 1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do...

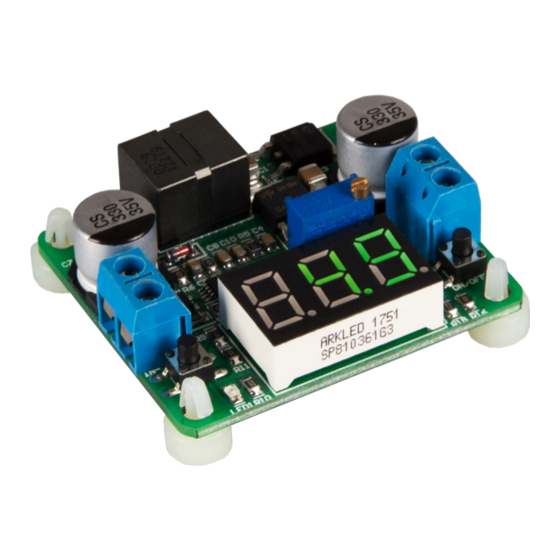

- Page 2 2. DEVICE OVERVIEW The freely configurable voltage transformer module is equipped with a "Step UP" and a "Step DOWN" function. The voltage can be set individu- ally by means of a trimmer and is shown on the integrated segment dis- play.
- Page 3 3. USE AND FUNCTIONS Connect the cables of your power source to the input (Input + / Input -) of the voltage converter. Next, connect the cables of the device to be supplied to the output (Output + / Output -). The voltage converter is now ready for use.
- Page 4 The desired voltage can be set with the adjustment screw. The display shows the current output voltage. With the S1 button you can switch through a total of three display modes. The factory setting automatically shows the input mode after starting the device.
- Page 5 With the ON/OFF key, the voltage output can additionally be switched on or off. The voltage transformer can also be configured to automatically activate the output as soon as the device is switched on. To activate this setting you must follow the steps below: Turn on the device and switch on the output.
- Page 6 SIMAC Electronics GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germa- Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by email at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
