CommFront USB30-HUB-2 Quick Start Manual

Industrial 7-Port USB 3.0 Hub
(Part Number: USB30-HUB-2 (3.0/7-Port))
Http://www.CommFront.com
Revision: 1.0 www.CommFront.com
Part Number: USB30-HUB-2 (3.0/7-Port) (DIN-Rail/Wall Mount)

■ INTRODUCTION

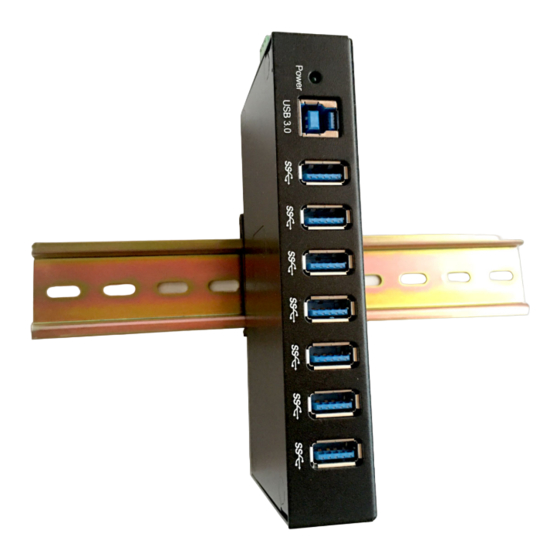

The USB30-HUB-2 (3.0/7-Port) is a rugged, industrial-grade 7-Port USB 3.0 hub (backward
compatible with USB 2.0/1.x) that can be used to expand one USB 3.0 port into seven.
This product supports data rates up to 5Gbps and it comes with 1 upstream USB 3.0 port
(type B) and 7 downstream USB 3.0 ports (type A). The unit delivers up to 900mA
downstream power on each port and it features 15kV ESD protection, 600W surge
protection, and plug-and-play (hot-pluggable). This industrial USB 3.0 hub comes with
redundant DC power input and thanks to the professional casing design and mounting
brackets (included), the product can be mounted on a DIN rail, a wall, or a panel, making
it an ideal solution for all types of industrial USB expansion applications.

■ FEATURES

 Industrial grade enclosed in a rugged steel housing
 USB 3.0 hub, backward compatible with USB 2.0/1.x
 Expands one USB 3.0 port into seven: 7 downstream USB 3.0 ports (type A);
1 upstream USB 3.0 port (type B)
 Supports data rates up to 5Gbps
 900mA downstream power on each port
 Plug and play (hot-pluggable)
 Redundant 9 to 24VDC input via terminal block or DC jack
 DIN-Rail or wall/panel mounting (kit included)
 Operating temperature: 32ºF to 104ºF (0ºC to 40ºC).
 Built-in 15kV ESD protection (USB interface)
 Built-in 600W surge protection (power input on each port)
 Surface Mount Technology manufactured to RoHS and ISO-9001 standards
 Compliance: CE, FCC
 5-year manufacturer's warranty

■ SPECIFICATIONS

Compatibility:
Power Source:
Data Rates:
Connectors:
Distances:
Accessories:
ESD Protection:
Surge Protection:
Dimensions (H x W x D):
Dimensions (DC Barrel Plug):
Weight:
Mounting:
Operating Temperature:
Storage Temperature:
Operating Humidity:
Page 1 of 4 Revision: 1.0
Industrial 7-Port USB 3.0 Hub
USB 3.0 (backward compatible with USB 2.0/1.x)
Redundant 9 to 24VDC (sold separately)
Up to 5Gbps
Upstream: 1x type B; Downstream: 7x type A
USB: 16ft (5m)
1x 6.6ft (2m) USB 3.0 type A to B cable
15kV, USB interface
600W, power input, each port
6.0 x 2.7 x 1.0 in (152 x 69 x 25 mm) (without
brackets)
Ø5.5mm / Ø2.1mm
22 oz (620 g)
DIN rail or wall/panel mount (kit included)
32ºF to 104ºF (0ºC to 40ºC)
-4ºF to 122ºF (-20ºC to 50ºC)
0~85% RH (non-condensing)
www.CommFront.com Page 2 of 4
