Summary of Contents for Gearlab Thunderbolt 4

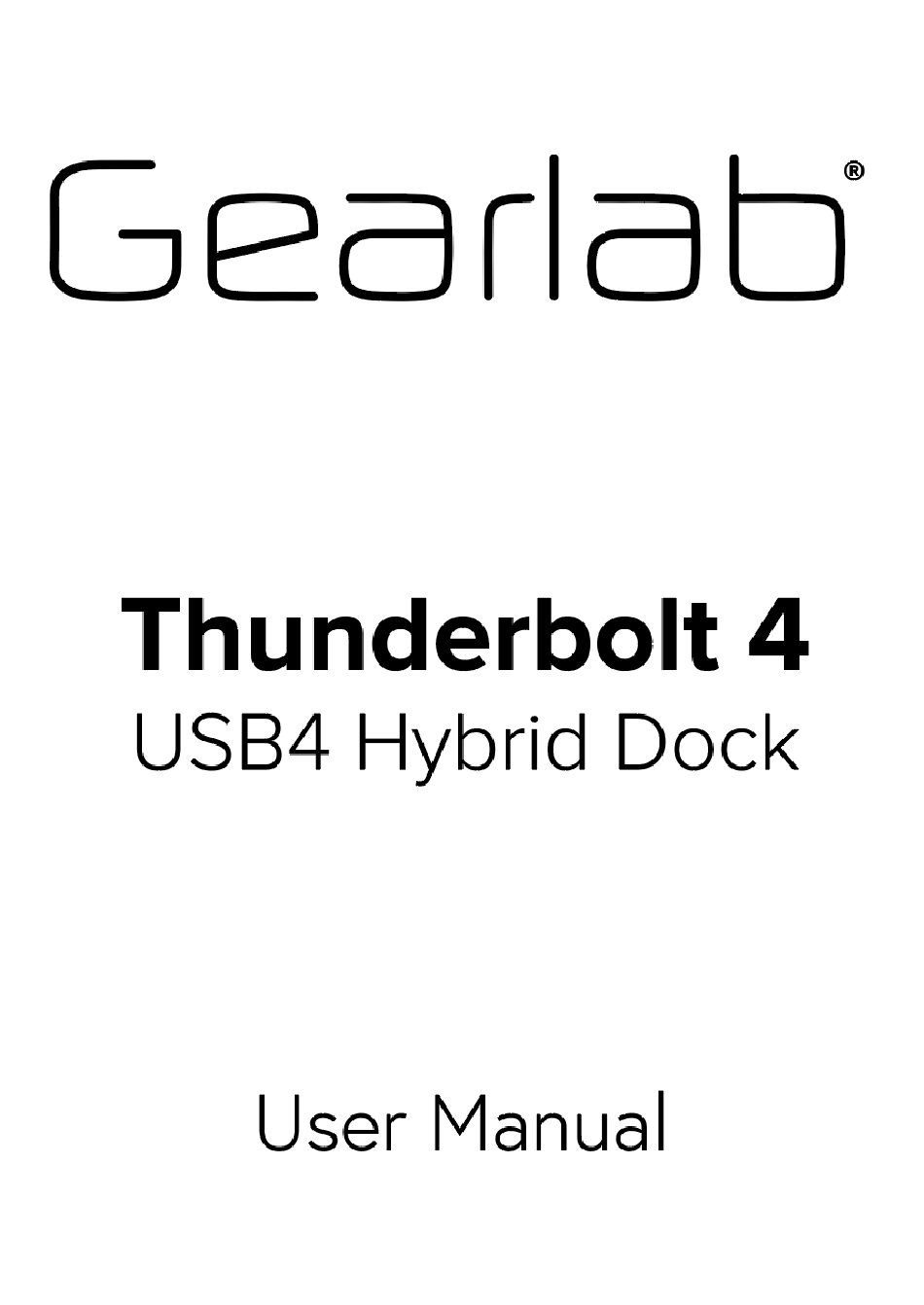

Page 1 Thunderbolt 4 USB4 Dock Pro...
Page 2: Table Of Contents
Table of Contents ..........1 AFETY NSTRUCTIONS ..............1 ARRANTY ............... 1 RADEMARKS REGULATORY COMPLIANCE ........2 FCC C ............2 ONDITIONS CE ................2 WEEE I ..........2 NFORMATION INTRODUCTION ............3 ..............4 EATURES ..........4 ACKAGE ONTENTS ..........
Page 3: Safety Instructions
Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety Instructions Always read the safety instructions carefully: Keep this User’s Manual for future reference ...
Page 4: Regulatory Compliance
Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received and include interference that may cause undesired operation.
Page 5: Introduction
Intel Thunderbolt 4 Goshen Ridge controller. It is not only for Thunderbolt 4 users, this versatile dock is backwards compatible with Thunderbolt 3, USB4 - USB 2.0 and VESA Alternate mode (MFDP), and works with both Windows and Mac systems.
Page 6: Features
Features Thunderbolt 4 technology  Downstream port  Thunderbolt 4 / USB4 x 2 HDMI 2.1 x 1 up to 8K30 USB-A 3.1 10G x 4 with BC 1.2 (5V/1.5A) and Apple Charge 2.1A x 1 Upstream PD charging: ...
Page 7: Product Overview
Connect to a headset Combo Audio Jack Thunderbolt 4 with PD 3.0 charging to laptop Thunderbolt 4 Indicator shows green when power on Power indicator Indicator shows blue when Thunderbolt embedded Thunderbolt 4 link indicator device is connected Power on /off Power button...
Page 8 Rear Item Description Connect to power adapter Power jack Connect to HDMI cable HDMI 2.1 Thunderbolt 4/USB Connect to Thunderbolt /USB device 4 port Connect to Ethernet RJ45 port USB-A Gen2 Connect to USB devices...
Page 9: Connection
Connection Follow the illustrations below to connect the corresponding connectors.
Page 10: Display Configuration
Display Configuration Multi-monitor configuration Once the extra monitors are connected, they can be configured to either Mirror mode, Extended mode or set the primary display. Windows ® Position the mouse anywhere on the Windows Desktop, Right-click and select Display Settings.
Page 11: Extend Mode
Extended mode Refer to the Multi-monitor configuration section to bring up the configuration window. Select the preferred monitor at top of the page. Select Multiple Displays > Extend these displays. Click Apply to confirm and exit.
Page 12: Mirror Mode
Once the setting is completed, simply drag and drop the application icons or the opened windows to the add-on monitor. However, some applications may not support to display on the extended desktop. Troubleshooting Cursor disappeared If the status remains in the extended mode but the docking station is disconnected, the desktop will still be panned to the add-on monitor.
Page 13: Set The Primary Monitor
Set the primary monitor Refer to the Multi-monitor configuration section to bring up the configuration window. Select the preferred monitor at top of the page. Check the box of Make this my main display. NOTE: For some computers, you may need to disable the main display by unchecking the box of Extend the desktop onto this monitor or Extend my Windows desktop onto this monitor.
Page 14 Mac OS ® Click on the Apple sign at the top left corner of the screen and select System Preferences…/ Displays. To rearrange the displays, drag them to the desired position. To relocate the menu bar, drag it to a different display. To switch to Mirror Mode, tick the box in front of Mirror Displays.
Page 15: Audio Configuration
Audio Configuration By default, when the docking station is connected to a computer, the audio configuration may be changed to USB (Multimedia) Audio Device automatically (this setting depends on models). If it does not work, follow the steps below to setup.
Page 16: Specification
Specification Upstream Thunderbolt/USB-C port User supports up to PD 96W Interface Thunderbolt 4/USB 4 x2 Downstream USB-A 3.1 Gen 2 x3 USB-A 3.1 Gen 2 x1, with BC1.2 (5V/1.5A) and Apple Charge 2.1A Type HDMI 2.1 x1 Video Output Up to 8K@30Hz...
