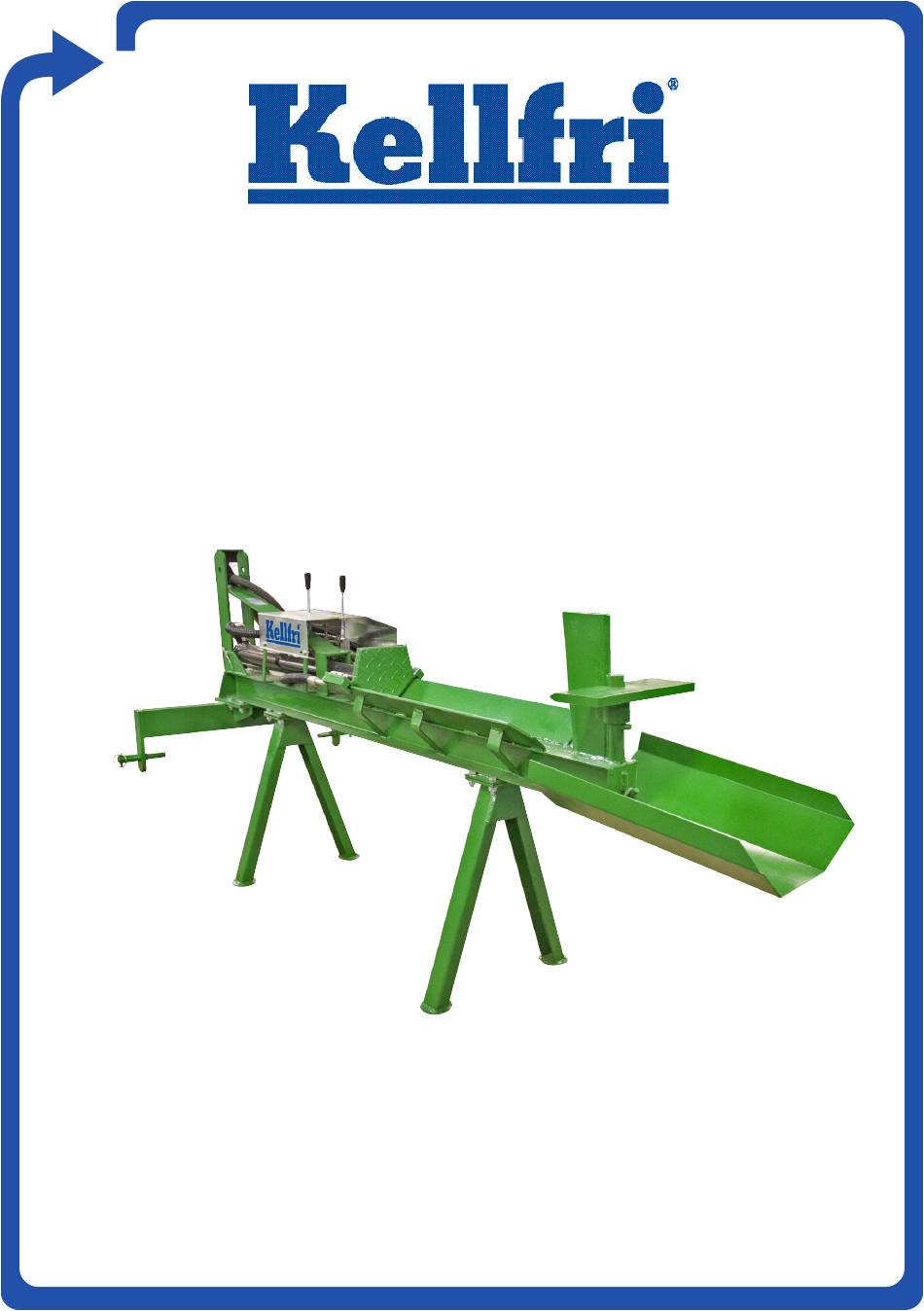

- Page 1 13-VK700 13-VK1100 FIREWOOD SPLITTER CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT! OPERATING INSTRUCTIONS TRANSLATED FROM THE ORIGINAL...
-
Page 2: Product Information
To prevent side forces from occurring in the splitting cylinder, the pressure plate runs on rails in the frame beam. Kellfri's log splitter has a proven design based on long, extensive experience. 4-way splitting wedge and work table are standard. -
Page 3: For Your Safety
If the in- structions manual is damaged or otherwise unusable, please contact your retailer. For more information visit our website: https://www.kellfri.co.uk/ Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or se- vere mental illness. -
Page 4: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning label. If a decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! -
Page 5: Instructions For Emergency Situations
INSTRUCTIONS FOR EMERGENCY SITUATIONS In case of emergency, call 112. Always have a mobile phone or emergency phone available when working alone. A first aid kit and fire extinguisher must be kept in an easily accessible location when carrying out any work, maintenance and service. -
Page 6: Operating The Machine
OPERATING THE MACHINE Only people who understand the safety information and instructions in this manual may oper- ate the equipment. Be alert and careful when working with the machine and only use the tool or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 7: Transport And Storing
TRANSPORT AND STORING Make sure there are no people, children and foreign objects around the area before transport- ing the machine. Always take an extra caution during the transport. Ensure that the product is well secured and that transport brackets are mounted. Always place the load as low as pos- sible. - Page 8 DESIGNATION ART. NO Valve kit 83084 (below protective plate ) R13-Vk700.013 Ramming plate R13-VK700.10 Cylinder 63/50-700 R13-Vk700.027 Cylinder 63/50-1100 R13-VK1100.014 Transverse knife (VK700/VK1100) R13-VK700.023 Support leg (VK700/Vk100) R13-VK700.030 Lever housing to valve (not visible ) R13-VK700.019 wood collector 700 R13-VK700.001 wood collector1100 R13-VK1100.001 Protective plate over valve...
- Page 9 DESIGNATION DESIGNATION R-pin 4x40 Wood collector Support legs Frame Bolt M12x40 Bolt M8x16 Stop wedge Washers M12 Adjustment pole (stroke length) Spring washer Guard for protective plate over valve Nuts Protective plate over valve Bolt M8x20 T-pin for pressure plate Washers M8 Split pin 3x40 Nylock nuts M8...
- Page 10 DESIGNATION DESIGNATION Collection table R-pin 4x40 Support legs Frame Bolt M12x40 Bolt M8x16 Washers M12 Stop wedge Adjustment pole (stroke length) Spring washer Guard for protective plate over valve Nuts Protective plate over valve Bolt M8x20 T-pin for ramming plate Washers M8 Split pin 3x40 Nylock nuts M8...
- Page 11 VK700 VK1100 HYD.DIAGRAM DESCRIPTION A Hydraulic valve B Lever C Safety valve E Tank H Hydraulic cylinder...
-
Page 12: Warranty Terms And Conditions
Other equipment must meet the hardware requirements of the Directive. Tina Baudtler, VD 2015.06.17 Kellfri AB is constantly working on further developing their products and therefore reservesthe right to modify, among other things the design and appearance without notice. CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
