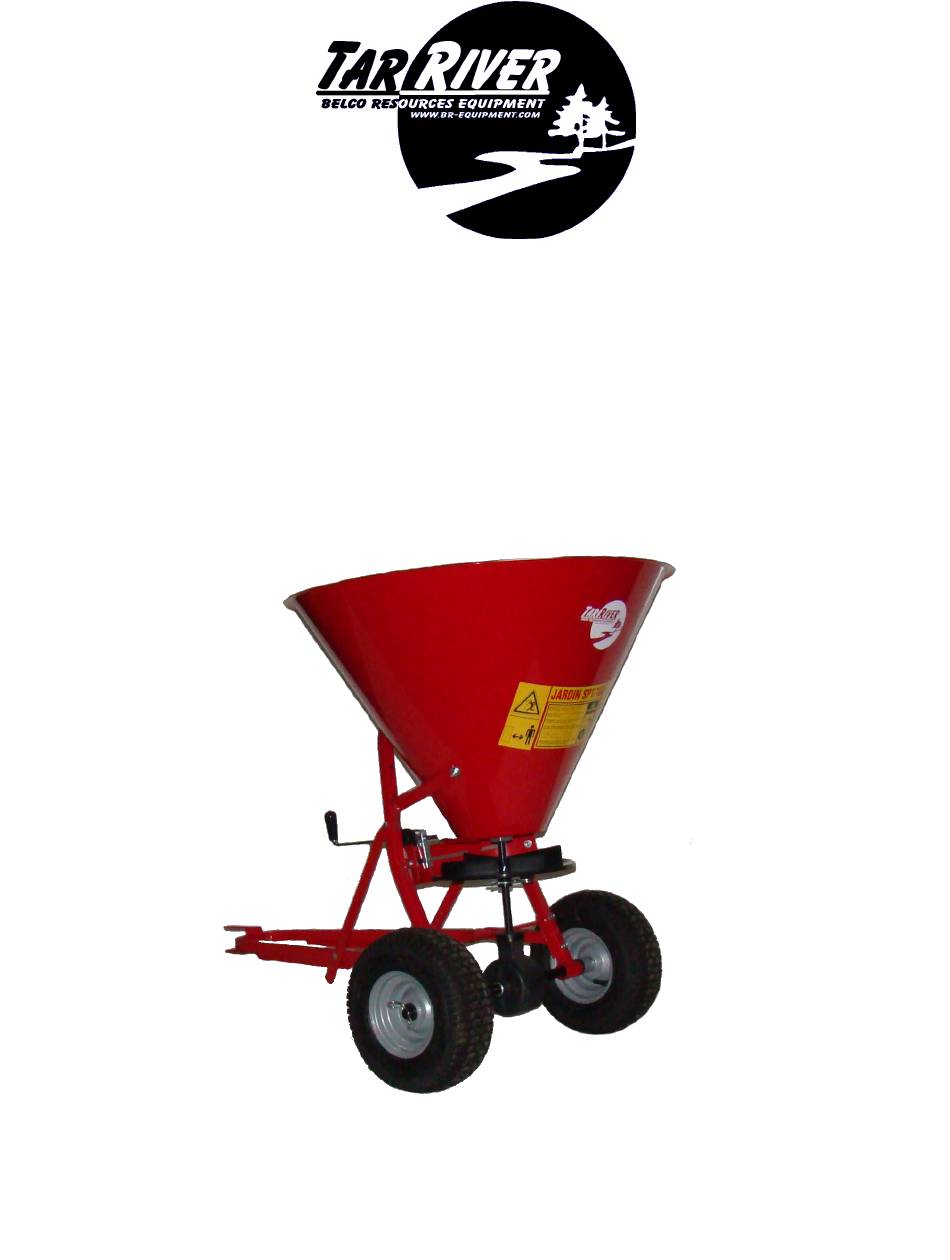

  • Page 1 Ground Driven Spreader PTS-100 / PTS-160 Operator’s Manual Publication #: April 2015...
  • Page 2 SAFETY Read and understand this manual and all safety signs before operating and maintaining. Review the safety instructions and precautions annually. TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS.

  • Page 3: Safety Signal Words

    SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal word for each has been selected using the following guidelines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.

  • Page 4: Safety Decal Care

    SAFETY DECAL CARE Replace safety signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: Be sure that the installation area is clean and dry.

  • Page 5: During Operation

    DURING OPERATION on public roads and highways. Lights and slow moving signs must be clean and visible by overtaking or oncoming traffic when feeder is transported. Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the engine of the towing vehicle or move the unit.
  • Page 6 steep hillsides. Be extra careful when working on inclines. Maneuver the tractor or towing vehicle at safe speeds. Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. Avoid loose fill, rocks and holes; they can be dangerous for equipment operation or movement. Allow for unit length when making turns.
  • Page 7 Assembly Instructions 1. Begin assembly by sliding the threaded bushing (#7) through the bottom center hole of the hopper. Fas- ten the mobile shutter (#48) to it with the nut (#47). Make sure the slots in the mobile shutter are facing away from the bottom of the hopper.

  • Page 8: Operation

    Operation The PTS series is ideal for lawns, parks, nurseries, athletic fields, parking lots, etc. It is designed for small tractors or ATVs. It may also be used as a salt spreader for snow or ice covered roads during winter months. The PTS Spreader can be used to distribute granular fertilizers, seeds, sand and small granular salt.
  • Page 9 Swath Spreading Patterns (lb/1000 sq.ft) Spreading width 6.5 feet Spreading width 13 feet Lever Position 2mph 4mph 2mph 4mph 19.5 46.5 11.5 65.5 16.5 38.5 19.5...
  • Page 10 Belco Resources Equipment SPT-100 / SPT-160...
  • Page 11 Belco Resources Equipment SPT-100 / SPT-160 POS. Part # Description RP02-100-02-00 Hopper SPT-100 RP02-150-02-00 Hopper SPT-160 RP02-000-03-00 Guard - Agitator RP02-000-04-00 Agitator BM610030 Bolt 6 x 30 LNM0600 Nut 6mm Lock Nut RP02-000-07-00 Threaded Bushing RP02-000-08-00 Carriage Head Bolt 8 x 40...
  • Page 12 Belco Resources Equipment SPT-100 / SPT-160...
  • Page 13 Belco Resources Equipment SPT-100 / SPT-160 POS. Part # Description RP02-016-41-00 Spacer RP02-016-42-01 Cover - Housing Hub RP02-000-43-00 R Shaped Cotter D.5 RP02-016-44-01 Shaft - Output RP06-000-06-00 R Shaped Cotter D.4 RP02-000-46-01 Spreader Disc RP02-000-47-01 Nut M30 BPF RP02-000-48-00 Shutter...
  • Page 14 WARRANTY REGISTRATION FORM & INSPECTION REPORT This form must be filled out by the dealer and signed by both dealer and customer at time of delivery. Customer name Dealer name Address Address City, state, code City, state, code Phone number Phone number Model Serial Number...

  • Page 15: Limited Warranty

    (90) days for commercial use from date of retail sale. Warranty for rent- al purposes is thirty (30) days. The obligation of Belco Resources Equipment Divi- sion, LLC to the purchaser under this warranty is limited to the repair or replace- ment of defective parts.
  • Page 16 Increasing agricultural productivity since 1974 Belco Resources Equipment Tel: 252-442-0700 P.O. Box 8164 Fax: 252-442-0787 Rocky Mount, NC 27804 Sales@BRGlimited.com www.BR-Equipment.com...
