Summary of Contents for Bettermaker Stereo Passive Equalizer
- Page 1 U S E R M A N U A L V e r s i o n 1 . 0 – 0 3 / 2 0 2 2...
- Page 2 Please note that the USB link is for DAW control and recall only. It does not stream audio, so the XLR connection with AD/DA converters is needed. The unit requires external power supply and will not work using USB power only. SOFTWARE For most recent versions of firmware and DAW plugins please visit www.bettermaker.com...
- Page 3 B E T T E R M A K E R S T E R E O P A S S I V E E Q U A L I Z E R FREQUENCY FREQUENCY BOOST KNOB KNOB POWER ENGAGE BUTTON BUTTON with FREQUENCY...
- Page 4 B E T T E R M A K E R S T E R E O P A S S I V E E Q U A L I Z E R HIGH BIG FANCY FREQUENCY BETTERMAKER BOOST LOGO KNOB BANDWIDTH HIGH BOOST KNOB for...

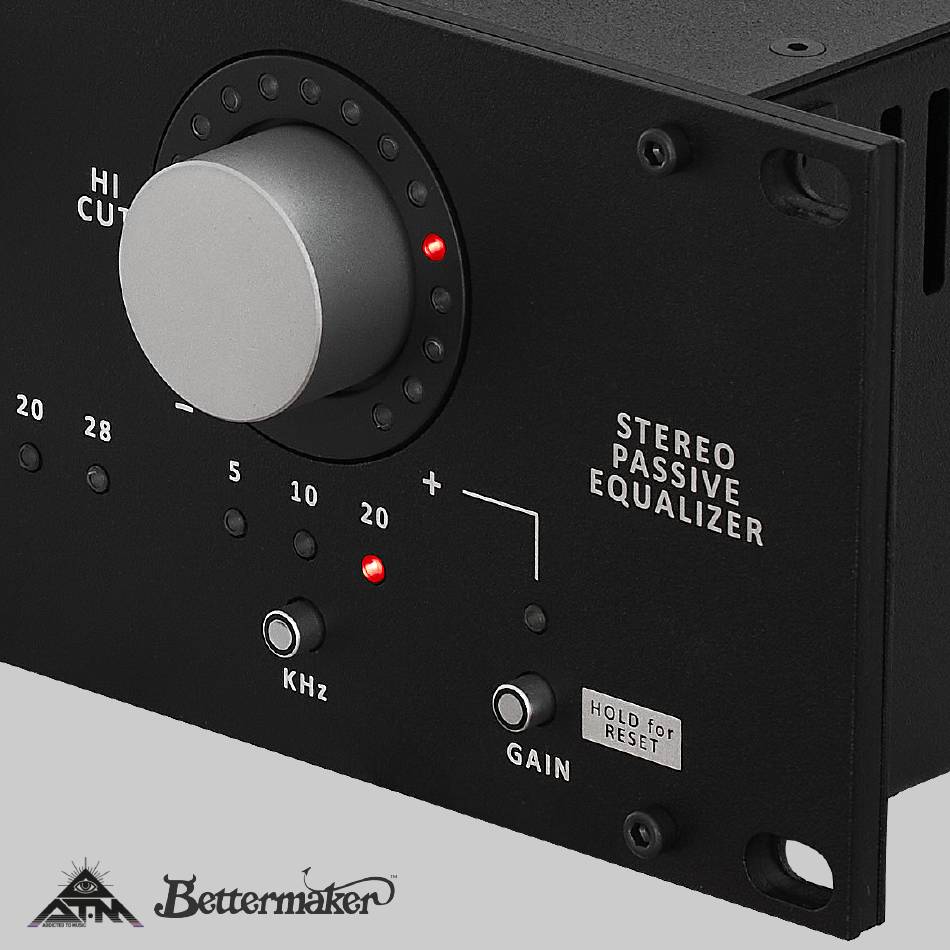

- Page 5 B E T T E R M A K E R S T E R E O P A S S I V E E Q U A L I Z E R GAIN BUTTON EXPLAINED In normal mode all five knobs control various sections of the passive filter. When the HIGH GAIN button is pressed the HIGH CUT knob changes its function and allows to adjust the output level of the unit within +/- 8dB range.
- Page 6 FIRMWARE UPDATE You can easily update the firmware inside the unit with dedicated macOS/Windows app available on www.bettermaker.com But first, you need to switch the unit to firmware update mode. Simply hold the GAIN button while powering on with ON/STBY – the button will start to blink rapidly. Follow the instructions provided in the updater application.
- Page 7 B E T T E R M A K E R S T E R E O P A S S I V E E Q U A L I Z E R TECHNICAL SPECIFICATION Maximum input level: +24 dBu (balanced with 48kΩ input impedance) Maximum output level: +27 dBu (balanced with 50Ω...
- Page 8 Made in Poland 2022 - All rights reserved...
