Fat Shark Dominator User Manual

Fat Shark Dominator User Manual

Digital headset
Hide thumbs Also See for Dominator:

Advertisement

WARNING: DO NOT leave the headset exposed to direct sunlight. Sunlight will magnify through
the optics and burn holes in the OLED color filter. Damage from sunlight will not be covered under
warranty. Keep goggles in protective case when not in use.
WARNING: Always operate this product in a safe and responsible manner and observe local laws.
WARNING: The Dominator by Fat Shark is not a toy. This product contains small parts and is
intended to be operated by adults. Not for children under 14 years old.
THIS HEADSET INCLUDES
1

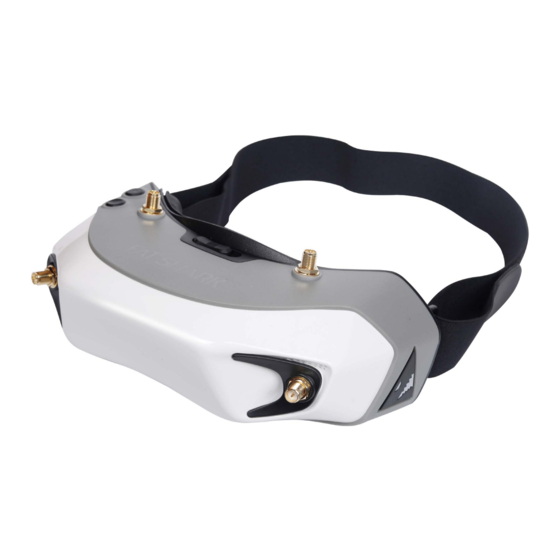

#1125 Dominator Headset
1
Carrying Case
1
1
XT-60 Battery Adapter
1
Lens Cleaning Cloth
Dominator Digital Headset User Manual
Rev. 270622(DDMMYY)
Head Strap
ANTENNAS AND BATTERY REQUIRED, NOT INCLUDED
2
5.8GHz RP-SMA Directional or Omni Antenna
2
5.8GHz RP-SMA Omni Antenna
1
Headset Battery

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dominator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fat Shark Dominator

  • Page 1 WARNING: Always operate this product in a safe and responsible manner and observe local laws. WARNING: The Dominator by Fat Shark is not a toy. This product contains small parts and is intended to be operated by adults. Not for children under 14 years old.
  • Page 2: Table Of Contents

    Firmware information ............................8 Restore factory settings ............................8 Betaflight Setup ..............................9 Canvas Mode (Betaflight) ...........................9 OSD Setup (Betaflight) ............................9 Troubleshooting ..............................11 DOMINATOR HEADSET SPECIFICATIONS DISPLAYS: Dual Full HD 1080p OLED displays FIELD OF VIEW (FOV): 46° HEADSET ADJUSTMENTS: Inter-Pupillary Distance (IPD): 57–70mm...
  • Page 3: Diagrams

    ANTI-FOG FAN CONTROL Bottom View POWER BUTTON USB-C IPD AND FOCUS Each eye adjustment can be controlled separately. Slide to adjust IPD (The spacing between your eyes). Twist to adjust focus. Rear View MICRO SD CARD SLOT VIDEO DISPLAYS Fat Shark DOMINATOR...
  • Page 4: Button Controls

    Once you have selected a channel, the goggle and transmitter will go to your selected channel on future power ups. • If your previously selected channel is occupied by another pilot while your system is not powered up, the system may default back to Public Channel and prompt you to pick a different channel. Fat Shark DOMINATOR...
  • Page 5: Standby Mode

    STANDBY MODE SIGNAL STRENGTH AND CHANNEL SELECTION SHARE OPTIONS Fat Shark DOMINATOR...
  • Page 6: Video Transmitter Options

    VIDEO TRANSMITTER OPTIONS Camera, Transmit Power, Frame Rate, and Low Battery tabs have sub menus available. Select the tab to open the sub menu. CAMERA OPTIONS DISPLAY SETTINGS Fat Shark DOMINATOR...
  • Page 7: Recording Options

    RECORDING OPTIONS BUZZER OPTIONS PLAYBACK OPTIONS Fat Shark DOMINATOR...
  • Page 8: Firmware Information

    FIRMWARE INFORMATION RESTORE FACTORY SETTINGS Fat Shark DOMINATOR...
  • Page 9: Betaflight Setup

    OSD SETUP (BETAFLIGHT) Connect the Flight Controller to Betaflight 4.x (MultiWii API version 1.41) or above Select “Ports” Select UART port that is connected with VTX, and set baud rate to 115200. Save Select Configuration Open OSD Save Fat Shark DOMINATOR...
  • Page 10 Select “OSD” Select any combination of OSD functions, and drag them to desired positions shown on the simulated OSD. 10. Save Fat Shark DOMINATOR...
  • Page 11: Troubleshooting

    TECHNICAL SUPPORT NOTE: Support should be attempted in the following order. Initial inquiries to Fat Shark support will expect you to have exhausted the online and retailer resources: Research Fat Shark helpdocs which can be found at http://fatshark.helpscoutdocs.com/ under FatShark Troubleshooting.
