Summary of Contents for StarBoard SB-WH3193-52

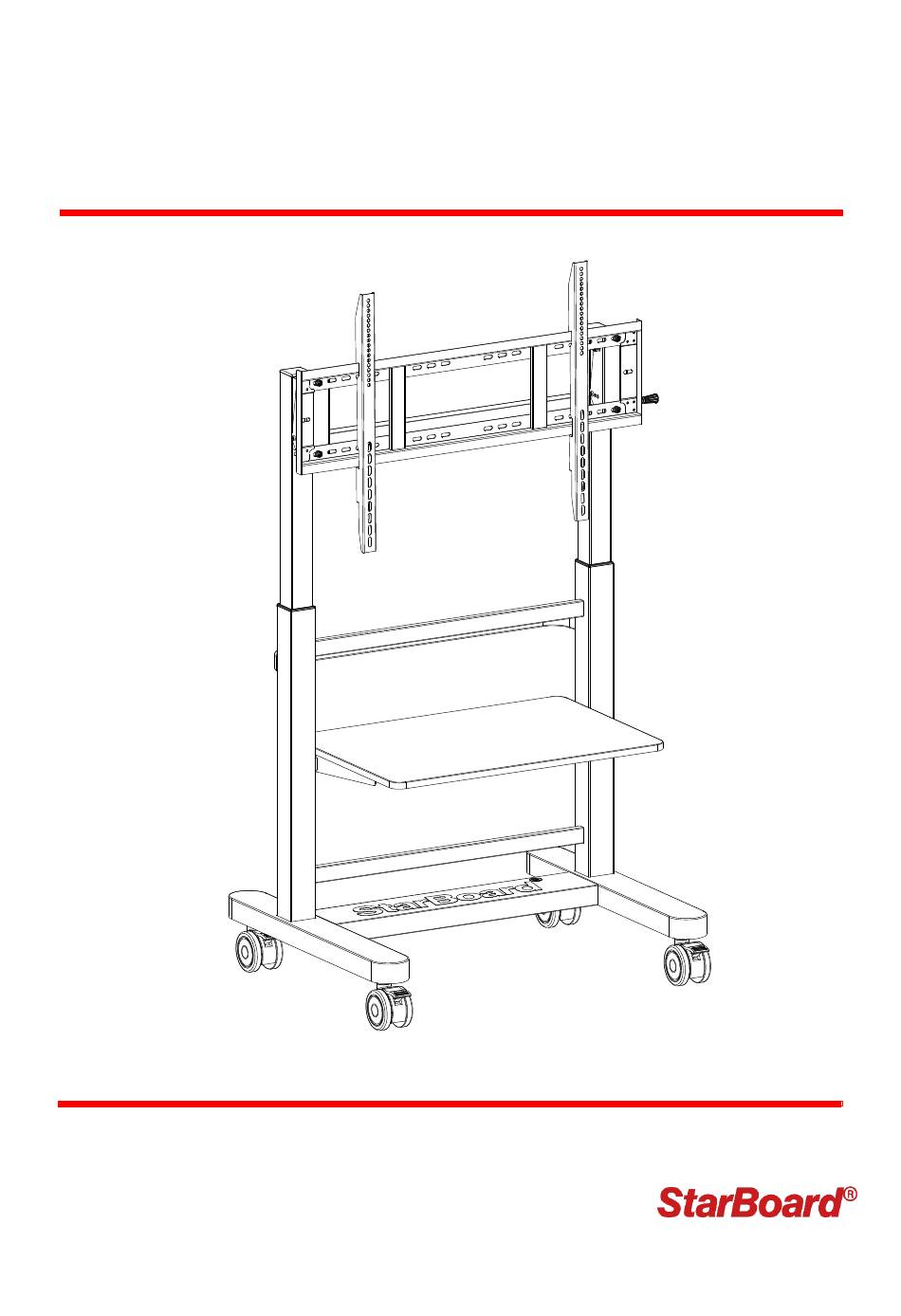

- Page 1 SB-WH3193-52 Assembly Instructions Model：SB-WH3193-52 ● For safe use, please read this booklet carefully before assembling. ● This product is suitable for 55-86 inch displays. ● Be careful of the cutting edge when using the cutter. ● Load capacity: 80KG...
- Page 2 ● Components B-Hanging Bracket 1pc A-PC Shelf Board 1pc C-Pedestal 1pc E-Handle 1pc D-Stand Prop 1pc F-Angle adjustment 2pcs H-Shelf support (Right)1pc J-Lever 1pc G-Shelf support (Left) 1pc I-Display Bracket 2pcs ● Assembly Tools With long screw (M6 x 120 mm) ①Hexagon Plus Bolt 4pcs M8×80...
- Page 3 • Display selection general-purpose parts (Please use other if the screws do not fit.) e--∅18 × ∅8.5 × 5 a--M6X20 Cross pan b--M6X30 Cross pan c--M8X20 Cross pan d--M8X30 Cross pan Resin washer 4pcs screw 4pcs screw 4pcs screw 4pcs screw 4pcs f--∅18 ×...
- Page 4 Step 3: Attach the angle adjustment unit F to the stand support D, temporarily fix it with ①, and fasten it after adjustment. Step 4: Temporarily fix the monitor hanging bracket B to the angle adjustment unit F with ②, and fasten it after adjustment.
- Page 5 Step 5: Temporarily attach the left and right shelf support brackets GH to the stand support D. Step 6: Temporarily fix the PC shelf board A to the left and right shelf support brackets GH with the four pieces of ③, adjust with the parts temporarily fixed in step 5, and then fasten everything.
- Page 6 Step 7: Temporarily fix the handle E to the stand support D with the four ③, and fasten it after adjustment. Step 8: Attach the display bracket I to the base hole. After attaching the display to the hanging bracket B, firmly fix the long screw for fall prevention.
- Page 7 Step 9: Insert the lever J as shown in the figure and adjust the height. 360°...
- Page 8 ●Assembled Stand drawing...
