OPERATING, MAINTENANCE AND SPARE PARTS MANUAL

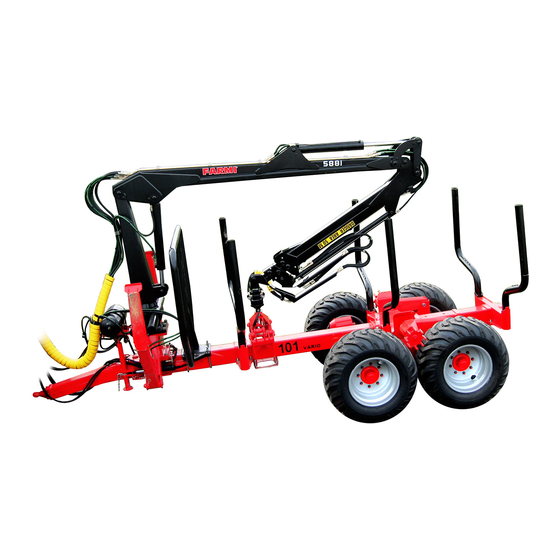

FOREST TRAILER
VARIO 101
From serial number: 4091 001
IT IS VERY IMPORTANT TO READ THIS INSTRUCTION
MANUAL THOROUGHLY BEFORE USING THE MACHINE.
04093130
VARIO 101
Farmi Forest Corporation
Ahmolantie 6
FIN--- 74510 IISALMI
FINLAND
Tel. +358 (0) 17 83 241
Fax. +358 (0) 17 8324 372
A- -EN- -240406- -ER
