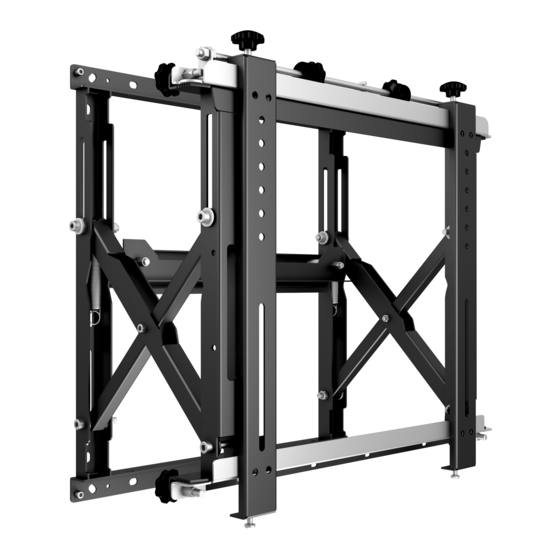

- Page 1 M Public Video Wall Mount Push HD Scan for info Online! EAN: 7350073730568 EAN: 7350073730568...
-
Page 4: Parts List
Parts List (Qty 1 Each) One-Latch Mounting Base -AA (Qty 1) Left and Right Mounting Bracket-BB 600mmX400mm adaptor-CC (Qty 2) M5 x 16mm Screw M5 x 30mm Screw M6 x 16mm Screw M6 x 30mm Screw M8 x 16mm Screw (Qty 4) (Qty 4) (Qty 4) -
Page 5: Installation
Installation 68mm φ10mm 13mm Mounting to Solid Concrete/Masonry 68mm φ4mm Mounting to Wooden Studs Installing the Mounting Brackets Screen Width Screen Width... - Page 6 Installing the Mounting Brackets Landscape VESA (Horizontal):500*400~600*400 VESA (Horizontal):100*100~400*400 A+H/C+H/E/G A+H/C+H/E/G B+H/ *For screen with a hole pattern in D+H/ a pocket, spacer go between Assembly Adapter Plate and screen. Spacer *For screen with a hole pattern in B+H/D+H/F/G a pocket, spacer go between Assembly Adapter Spacer...
-
Page 7: Post-Installation Adjustments
Mounting the Flat-Panel Note: These registers must align prior to installation.They are factory set. Check to determine proper Locks not included(accessory) alignment Post-Installation Adjustments Adjustments +/-X Adjustments +/-Z Adjustments +/-Y Adjustments +/-Z... -
Page 8: Technical Specifications
Move Inward PUSH Move outward PUSH Technical Specifications 510.0mm [20.0″] 267.0mm [10.5″]~277.0mm [10.9″] 203.2mm [8.0″] 92.0mm [3.6″]~102.0mm [4.0″] 35mm [1.4″] 406.4mm [16.0″] 630mm [24.8″] 282.0mm [11.1″]~292.0mm [11.5″] 600mm [23.6″] 108.0mm [4.2″]~118.0mm [4.6″] 500mm [19.7″] 400mm [15.7″]...
