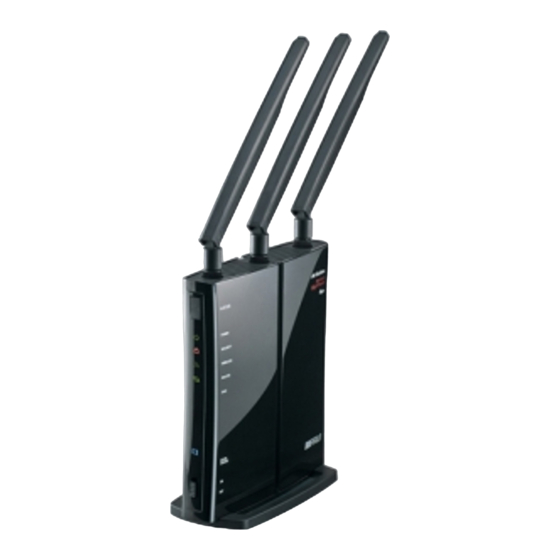

Buffalo AirStation WZR-HP-G450H Series Quick Setup Manual

English
ภาษาไทย
WZR-HP-G450H Series
Quick Setup Guide
35012062 ver.01 1-01
Note: The illustrations or screen shots may look different from the actual screens.
For Mac Users
To use your Mac to make the initial settings for the AirStation, see Chapter 3 in the "User Manual for User-friendly Firmware" .
To access the User Manual, load the AirNavigator CD into your Mac and double-click the PDF le in the "manuals" folder.
To access the Web con guration interface, double-click [AirStation Con guration Tool] in the "Mac" folder.
I

Getting Started

(1) Turn o your computer.
1
(2) Unplug the LAN cable connecting the modem and your PC.
(3) If you are using CATV to connect to the Internet, turn o the modem and leave it o for approxi-
mately 30 minutes.
With CATV, the modem remembers connected network devices, so other network devices can't connect. After
the modem is o for 30 minutes, its memory will clear and it can establish a new communication.
Notes: · To use a wireless client in Windows 7 or Vista, perform setup using the AirNavigator CD to automatically generate a profile for wirelessly connecting to the
AirStation. After setup is complete you may remove the LAN cable. Your wireless client is now connected to the AirStation.
· Before running the setup wizard, make sure that your computer's wireless client is enabled.

Installation

II
The installation CD in your package will step you through installation. To begin, insert the CD in your computer.
Power on your computer and insert
1
ON
the AirNavigator CD from your
AirStation package. The setup
program will launch automatically.
If these screens are displayed by Windows,
click [Yes] or [Continue].
click [Run ASSetWiz.exe].
2
Click [Start].
Note:
If you eject the CD during setup, and
then reinsert it, it will return to the
same place automatically.
3
Follow the on-screen instructions
to install your AirStation.
After the AirStation is turned on, wait until the Diag LED turns o before
proceeding to the next step.
The AirStation's default SSID is shown on its label, as
shown in the illustration to the right.
SSID : BUFFALO-123456
This label also shows a PIN code and encryption key, but
KEY : abcdefghijklm
they are disabled by default. If you enable encryption in
PIN : 12345678
step 2 - 5 below, this will be the default PIN code and
encryption key.
(2) Unplug
(2) Unplug
Modem
4
To set a password for the Web
CD
con guration interface, enter the
password and click [Next].
5
To enable encryption, select
[Enable preset Wireless Security]
and click [Next]. The AirStation
will then use the SSID and
encryption key shown on the
label.
6
When the "Finish" screen is
displayed, your AirStation is
ready to use.
User Manual
For more information about setup or con guring your AirStation, consult the User Manual on your installation CD.
(1)Turn Off
For Windows Users
OFF
1. Insert the CD into your computer.
PC
If Windows opens the auto-play screen, double-click [Run ASSetWiz.exe] in the "Win" folder.
If the "User Account Control" screen is displayed, click [Yes] or [Continue].
2.
3. The User Manual will open.

Viewing the Configuration Interface from a PC

To configure more advanced settings, use the web-based configuration interface. Follow
the steps below to display the AirStation's configuration interface.
1. Insert the CD into your computer.
If Windows opens the auto-play screen, double-click [Run ASSetWiz.exe] in the "Win" folder.
If the "User Account Control" screen is displayed, click [Yes] or [Continue].
2.
3.
4. When the username and password screen is displayed, enter "root" in the username
field and the AirStation password (no password is set by default) in the password
field, then click [OK].
5. The configuration interface will open.
Note: To display the AirStation's configuration interface without using the CD, open your
web browser and enter the AirStation's IP address in the address bar. The
AirStation's default IP address is 192.168.11.1 in router mode or 192.168.11.100 in
AP mode.
If the "Internet Setup (PPPoE
Settings)" screen is displayed, enter
your PPPoE settings and click
[Next]. Contact your internet
service provider if you don't know
your PPPoE settings.
Opening the User Manual
1. Load the CD into your Mac.
2.
Click [View User Manual].
3. Double-click the PDF file in the "manuals" folder to open the User Manual.

Additional Information

Viewing the Configuration Interface from a Mac

To configure more advanced settings, use the web-based configuration interface. Follow
the steps below to display the AirStation's configuration interface.
1. Load the CD into your Mac.
2. Double-click the icon for the mounted CD and open the "Mac" folder. Then,
double-click [AirStation Configuration Tool]
3. Click [Continue].
Click [View WEB Setting Screen].
4.
All AirStations on the network will appear
5.
in the list. Select the AirStation that you
want to configure and click [Next].
Note:
If "AirStation's IP Address setting" screen
appears, select [Obtain IP address from
DHCP server] or set the IP address
manually and click [Next].
6. When the username and password screen is displayed, enter "root" in the name field
and the AirStation password (no password is set by default) in the Password field,
then click [Log In].
7. The configuration interface will open
Notes: · To close, click [Quit] on the "Complete" screen behind the configuration
interface.
· To display the AirStation's configuration interface without using the CD, open
your web browser and enter the AirStation's IP address in the address bar. The
AirStation's default IP address is 192.168.11.1 in router mode or 192.168.11.100 in
AP mode.
If Windows asks you to "Select a
location for the network", choose
the location that best matches your
environment.
For Mac Users
Double-click the icon for the mounted CD,
then double-click the "manuals" folder.
Select "AirStation" from the list, then click
[Continue].
Note:
If "AirStation" is not displayed in the list,
check the connection between the Mac
and AirStation, then click [Re-scan].
Click [Open Web Setting Screen.].
