Summary of Contents for Shearwell Data X6 SDL330

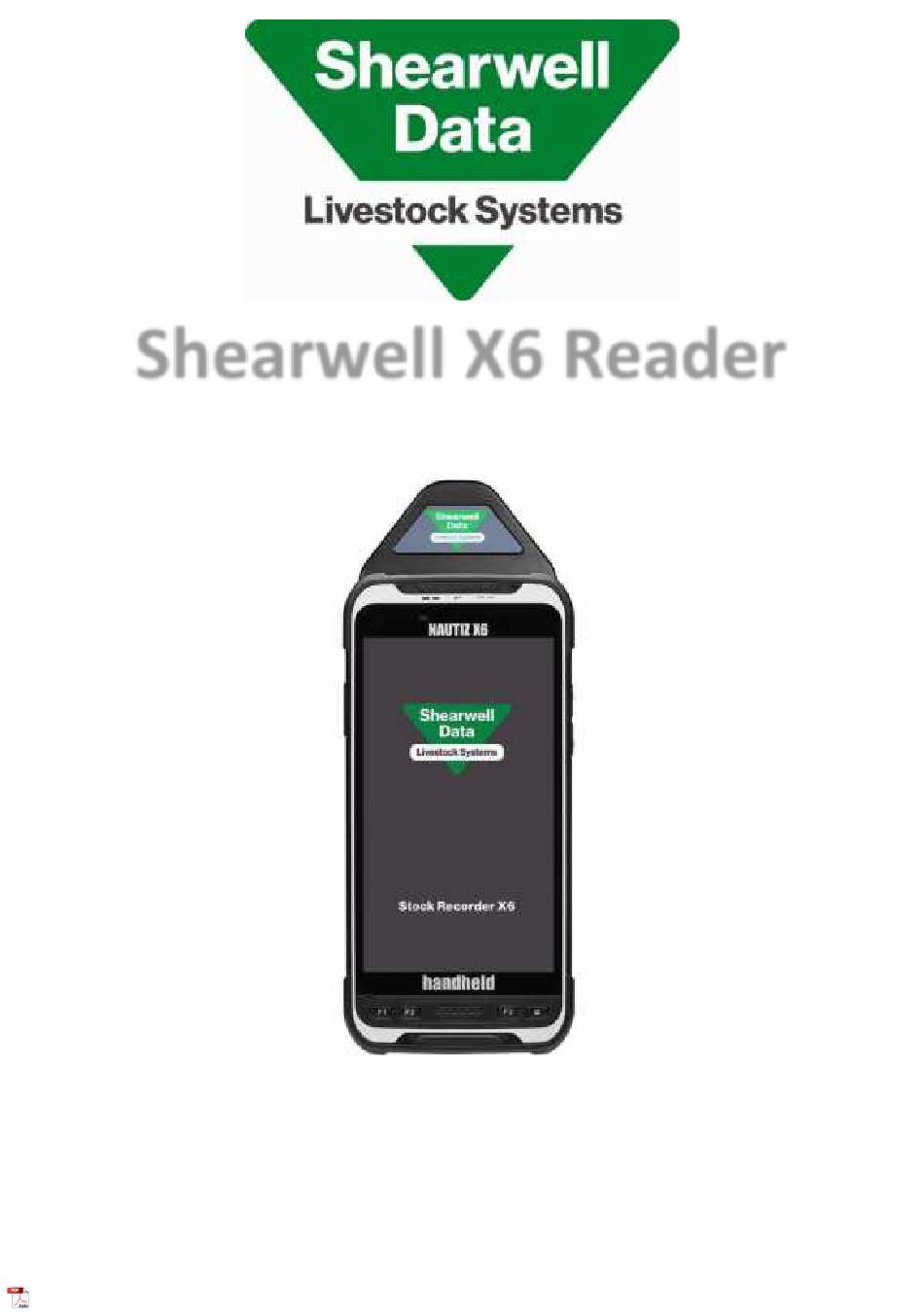

- Page 1 Shearwell X6 Reader SDL330 Tel: 01643 841611 Fax: 01643 841628 Email: support@shearwell.co.uk Website: www.shearwell.co.uk Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd...
-
Page 2: Table Of Contents
Contents 1 Getting started - Introduction - Power - Safety 2 Installation 3 Labels 4 Specification - Technical - Environmental 5 Industry Standards 6 Support Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd... -
Page 3: Getting Started
Introduction The Shearwell X6 reader (SDL330) is a Radiofrequency Identification (RFID) device. It is designed and manufactured by Shearwell Data Ltd, the market leader for cattle and sheep tags in the United Kingdom. The device is designed to read animal electronic identification (EID) tags in compliance with the international standards ISO 11784 and ISO 11785, which regulates the RFID of animals. -
Page 4: Safety
Shearwell Data Ltd is not responsible for any damage caused by the user’s failure to adhere to the safety rules listed above. - Page 5 L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillageest susceptible d’en compromettre le fonctionnement. Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd...
-
Page 6: Installation
- To attach the Shearwell X6 Reader, please follow these instructions carefully. Failure to do so could result in irreparable damage to the circuitry. Shearwell Data Limited is not responsible for any damages caused by the user during installation. 1. Locate and remove the six 2.2x5 pan head screws in the protective casing of the reader (6). -
Page 7: Labels
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd... -
Page 8: Specification
PC Tarolon 2500 W X0 Dimensions 83mm x 83mm x 26mm Operating 0°C to 40°C Temperature Storage -20°C to 50°C Temperature Mounting Mounted with 2 screws to the back of HandHeld Nautiz X6 Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd... -
Page 9: Industry Standards
301 489-1 V2.2.3 (2019-11). This is the harmonised standard for electromagnetic compatibility. The SDL330 also complies with EN 300 330-1 V2.1.1 (2016-11), which covers EMC for Short Range Devices (SRD) broadcasting in the frequency range of 9kHz to 25MHz. Version 0.8 Copyright © 2022 23.06.2022 Shearwell Data Ltd... -
Page 10: Support
Support Contacting Shearwell Data Limited If you would like further information or assistance than what is given in this manual, then you can contact Shearwell Data Limited in the following ways: Phone: +44 (0)1643 841611 Address: Shearwell Data Ltd. Fax:...
