Summary of Contents for TRITTBRETT G500 2019

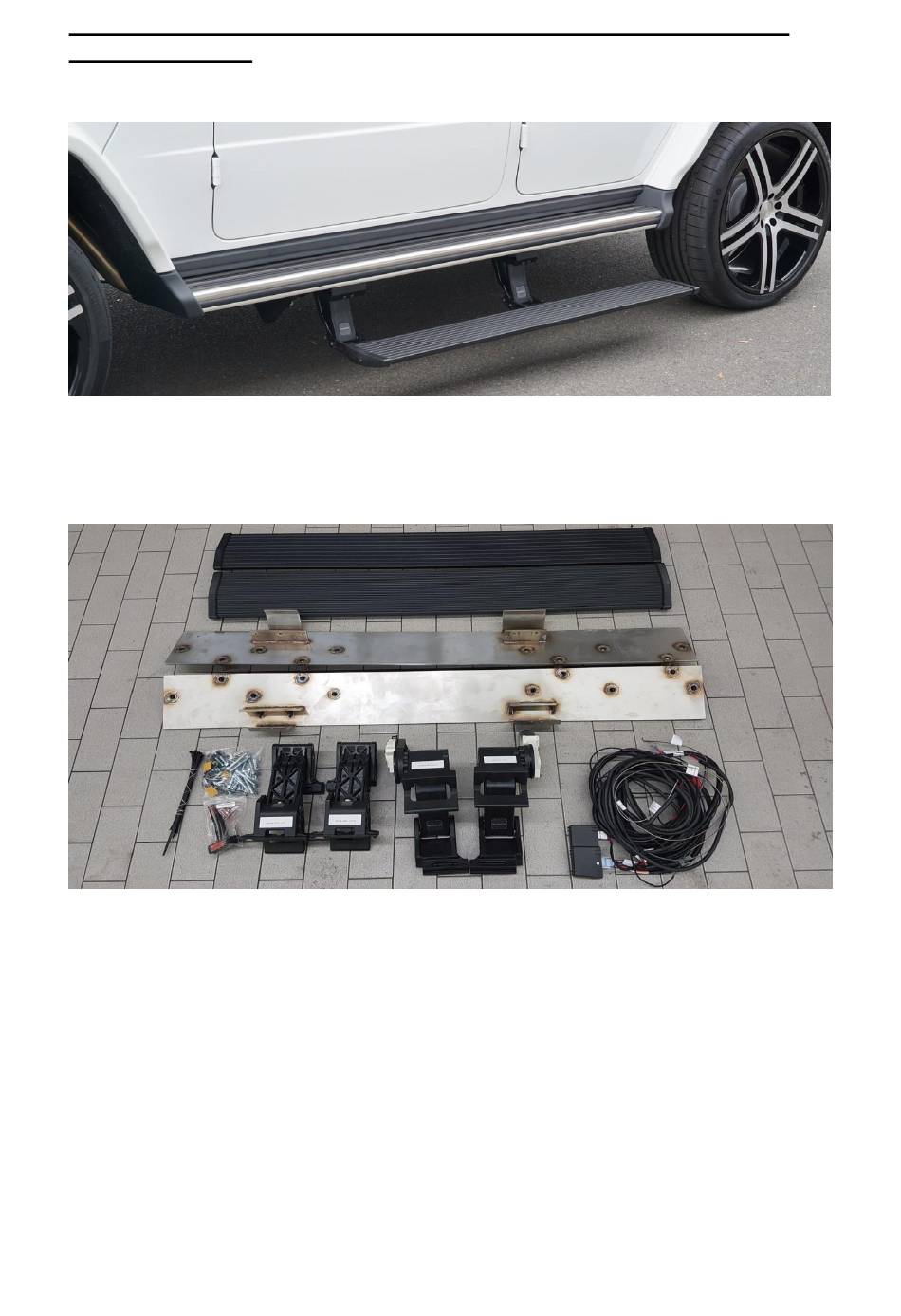

- Page 1 Installation manual electric side step for G500 and G63 from 2019...
- Page 2 Installation manual electric side step for G500 and G63 from 2019...
- Page 3 Installation manual electric side step for G500 and G63 from 2019 Open all screws on the underbody of the original board except the last two at the end. Please have a second person to hold the board so it cannot fall down.
- Page 4 Installation manual electric side step for G500 and G63 from 2019 Attach bracket no. 1 with the supplied screws. One rleft side and one rigth side. The screws must be screwed exactly at the positions shown (because they are different in length) and tightened together with the bracket. 25 - 30 torque are sufficient.
- Page 5 Installation manual electric side step for G500 and G63 from 2019...
- Page 6 Installation manual electric side step for G500 and G63 from 2019 Now you can install the pivot arms 2 on the left side and two on the right side. All swivel arms are labeled to which position they need to be fastened. Attention, these must not be mixed up.
- Page 7 Installation manual electric side step for G500 and G63 from 2019 Fix the LED light as seen in the photo.
- Page 8 Installation manual electric side step for G500 and G63 from 2019 Now install the wiring harness for the control module as shown in the photo in the engine compartment. Only the cables for the door control units must be routed into the interior and clamped.
- Page 9 Installation manual electric side step for G500 and G63 from 2019...
- Page 10 Installation manual electric side step for G500 and G63 from 2019 Side step short version front door only...
- Page 11 Installation manual electric side step for G500 and G63 from 2019 Side step long version front and rear door only Now you can attach the tread to the swivel arms.
- Page 12 Installation manual electric side step for G500 and G63 from 2019...
- Page 13 Installation manual electric side step for G500 and G63 from 2019 Please check that the electric side step are fully functional. When the door is opened, the footboard should extend and the LED lights should light up. If you have installed the only front door running boards, the side step will only drive out when the driver's door or just the front passenger door is opened.
