Summary of Contents for ENERGY SISTEM office 6
-
Page 1: Table Of Contents
ENGLISH Introduction ..................................Care and maintenance ..............................Technical specifications ..............................Audio ................................... Connectivity ................................Microphone .................................. Battery ..................................Other features ................................Compatibility ................................Product content ................................General overview ................................Switching on and off the device ........................... Positioning and using ..............................Headset position ................................ - Page 2 2/12 energysistem.com...
-
Page 3: Introduction

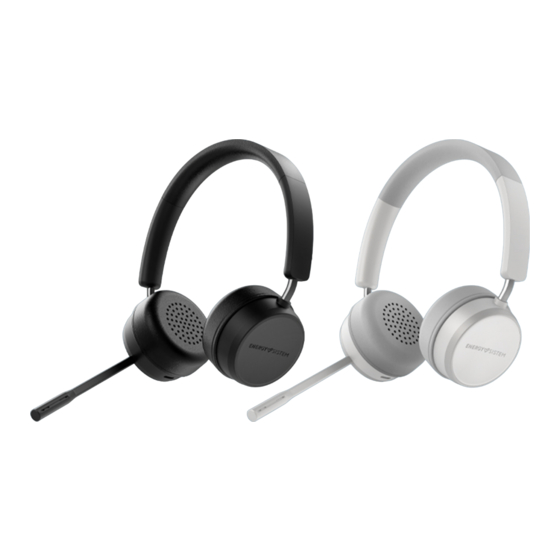

Introduction *Thank you for trusting our company and buying the new Wireless Headset Office 6. We hope you enjoy the product. Before you start using the product, we strongly recommend reading this manual to get used to it. Care and maintenance Do not expose your Wireless Headset Office 6 to impacts, dust, humidity or high temperatures. -
Page 4: Audio
Audio Frequency response: 20 Hz ~ 20 kHz Driver diameter: 40 mm Neodymium magnet Maximum power: 20 mW Type: dynamic Impedance: 32 ohms On-ear design Connectivity Bluetooth® 5.0 (class 2) wireless technology. Frequency band: 2.4 GHz Maximum output power: < 20.00 dBm Compatible Bluetooth profiles: HSP / HFP / A2DP / AVRCP Up to 20 m distance range Microphone... -
Page 5: Switching On And Off The Device
1. Left ear pad 2. Right ear pad 3. Microphone 4. Mute/Unmute microphone 5. On/Off 6. Volume + 7. Volume - 8. Status LED indicator 9. Charging port Switching on and off the device 5/12 energysistem.com... -
Page 6: Positioning And Using
Hold the On/Off button (5) down for 4 seconds to turn your headset on or off. The Status LED indicator (8) will light up in white for power on, or red for power off. Positioning and using Headset position For video calls, you can position the headset with the microphone on the right or left, whichever you prefer. This can be done by simply passing the microphone over the headband. -
Page 7: Bluetooth® Wireless Connection And Controls
The audio in video calls is always mono, making headset left/right position irrelevant. When listening to music the signal will be stereo, so in this case we recommend checking the R and L positions on the inside of the headband when putting the headset on. Important: Place the microphone at mouth level to ensure your voice is picked up correctly. -
Page 8: Controls
To enable Bluetooth mode on your Wireless Headset Office 6, hold the On/Off button (5) down for 2 seconds until the Status LED indicator (8) flashes in white. Your headset is now ready to be paired with your device via Bluetooth connection. -
Page 9: Using The Headset With A Pc (Windows)
The microphone can be muted during video calls by pressing the Mute/Unmute microphone (4) button. Pressing this button again will unmute the microphone. You will hear an audible tone indicating that the microphone is on or muted. Note: The Mute/Unmute microphone button (4) may be overridden by third-party communication programs. We recommend contacting the program administrator if this is the case. -
Page 10: Windows 10 Drivers
Windows 10 Drivers It is also important to ensure your PC?s Bluetooth drivers are up to date. This can be done by checking this website, to download and install the latest version: https://www.intel.la/content/www/xl/es/download-center/home.html Auto power off To optimise the battery, your Wireless Headset Office 6 will power off automatically after 5 minutes in search mode without being synced with another device. -
Page 11: Warranty
Warranty Warranty Energy Sistem Technology, S.A. is liable for any lack of conformity for 36 months from the date the goods are purchased. Batteries are excluded from the 36-month warranty, having a warranty period of 24 months. This warranty covers defects in workmanship or materials and does not cover product failures due to accidents, misuse or alteration made by an unauthorised person. -
Page 12: Declaration Of Conformity
Declaration of conformity Issuer's name: Energy Sistem Technology, S.A. Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain) Tel: +34 966 830 324 CIF: A53107488 We declare under our sole and exclusive responsibility that the product: Description: wireless headset Brand: Energy Sistem Model: Wireless Headset Office 6...
