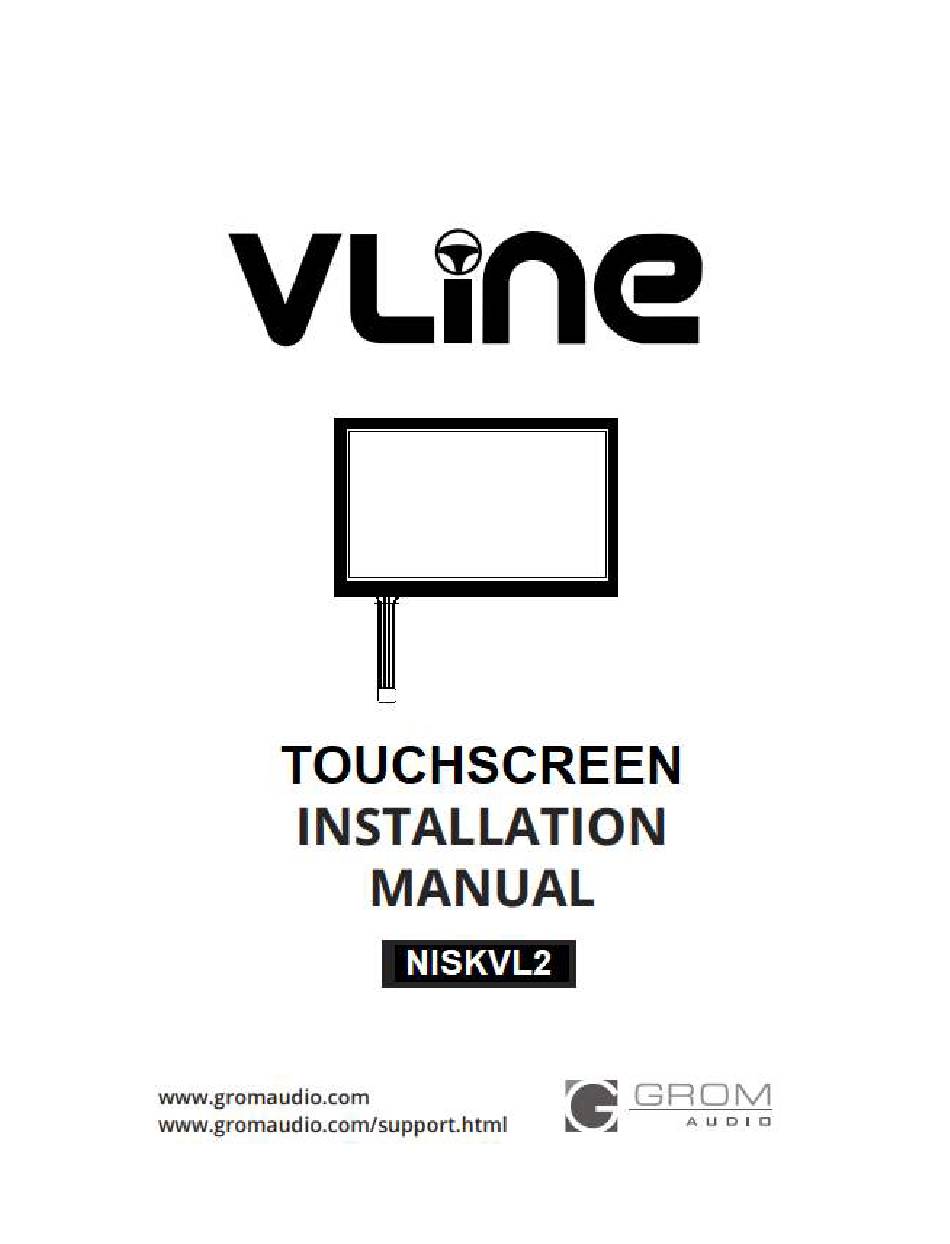

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com Content of the Touchscreen overlay kit (V-NISKRTH): 1. Touchscreen overlay panel 2. V-TOUCH Cable and TSB1 converter board 3. 2pc ZIP-TIES 4. Alcohol wipe Tools needed: 1. Scratch awl/pick 2. Phillips screwdriver 3. Wire cutter...
- Page 3 All manuals and user guides at all-guides.com Watch YouTube Video: bit.ly/nisk_touchscreen 1. Take the stereo assembly, touchscreen overlay kit (V-NISKRTH), and the tools, to a flat surface. We recommend using the table with good lighting. 2. Remove 4 Phillips screws from both sides of vehicle's LCD screen assembly, and remove LCD assembly from the metal bracket.
- Page 4 All manuals and user guides at all-guides.com Remove 2 Phillips screws from top of LCD enclosure...
- Page 5 All manuals and user guides at all-guides.com Remove 2 Phillips screws from bottom of LCD enclosure...
- Page 6 All manuals and user guides at all-guides.com Now remove the back metal cover from the LCD assembly...
- Page 7 All manuals and user guides at all-guides.com Using the awl tool, remove the front bezel from the LCD assembly...
- Page 8 All manuals and user guides at all-guides.com Remove the factory clear plastic screen cover...
- Page 9 All manuals and user guides at all-guides.com Remove protective plastic from the front side of the supplied touchscreen panel, and carefully install the supplied touchscreen panel in place of the now removed factory clear screen cover.
- Page 10 All manuals and user guides at all-guides.com How the new touchscreen panel should look in the front bezel, note that the 4pin ribbon cable sits within the notch on the bezel. Remove the protective plastic film from the back side of the touchscreen panel, and clean the screen using supplied alcohol wipe.
- Page 11 All manuals and user guides at all-guides.com Put the front bezel with new touchscreen panel back together with the LCD display...
- Page 12 All manuals and user guides at all-guides.com Now put the back cover back on the assembly...
- Page 13 All manuals and user guides at all-guides.com Make sure the 4pin ribbon cable from the touchscreen panel comes through the enclosure gap...
- Page 14 All manuals and user guides at all-guides.com Reinstall the 4 Phillips screws, 2 on top 2 on bottom...
- Page 15 All manuals and user guides at all-guides.com Completed touchscreen/LCD assembly...
- Page 16 All manuals and user guides at all-guides.com Screw the metal bracket back to the LCD assembly...
- Page 17 All manuals and user guides at all-guides.com Connecting to V-Touch Cable Watch YouTube video: http://bit.ly/nisk_vtouch Connect ribbon cable to the V-TOUCH cable. The exposed pins on the ribbon cable should face up. The pins on the V-TOUCH cable should face up.
- Page 18 All manuals and user guides at all-guides.com Carefully press locking connector towards the middle and down to the V-TOUCH cable, to secure the pins on the ribbon cable in place.
- Page 19 All manuals and user guides at all-guides.com Connect the other end of V-TOUCH cable to the TSB1 controller board, as shown below.
- Page 20 All manuals and user guides at all-guides.com Carefully route the V-TOUCH cable assembly through the cut-out in the metal bracket to the back side of LCD screen assembly. Make sure that you do not apply any tension to the ribbon cable. The ribbon cable is very fragile and can break.
