Trigano Jardin Carport HEGOA 20 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Trigano Jardin Manuals
  4. Accessories
  5. Carport HEGOA 20
  6. Assembly instructions manual

Trigano Jardin Carport HEGOA 20 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TRIGANO JARDIN
Le Boulay
41170 – Cormenon, France
Carport HEGOA 20
J-87920P1
7 m x 2,8 m x 3 m
3,17 m
7,19 m
3,17 m
90 km/h
10 cm
J-123194A
1
35

Advertisement

loading
Need help?

Need help?

Do you have a question about the Carport HEGOA 20 and is the answer not in the manual?

Questions and answers

Related Manuals for Trigano Jardin Carport HEGOA 20

Summary of Contents for Trigano Jardin Carport HEGOA 20

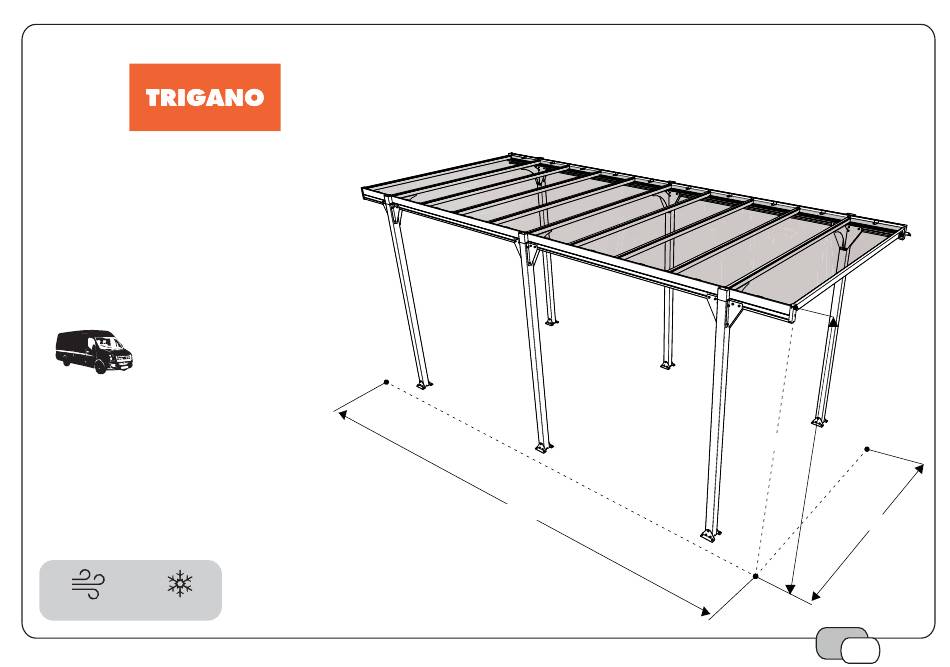

  • Page 1 TRIGANO JARDIN Le Boulay 41170 – Cormenon, France Carport HEGOA 20 J-87920P1 7 m x 2,8 m x 3 m 3,17 m 7,19 m 3,17 m 90 km/h 10 cm J-123194A...

  • Page 2: Installation

    • Nettoyer votre produit à l’eau claire ou avec des produits au PH neutre, spécifiquement sur les panneaux de toiture. Nous tenons à vous féliciter et à vous remercier pour l'acquisition de ce produit conçu et réalisé par TRIGANO JARDIN.

  • Page 3: Warranty

    • Our customer service will only replace missing and/or faulty parts and will under no circumstances replace the product in manufactured by TRIGANO JARDIN. To ensure that this product is used in the safest possible conditions, we recommend its entirety.
  • Page 4 NOMENCLATURE J-121518 Ø8 2800mm J-151331 J-122596 x172 J-151322 J-121615 Ø8 x262 Micro perforé J-151330 J-140019 Vent tape 720mm J-121616 Ø5 J-151321 J-151328 J-150901 J-121211 Ø8x50mm 2800mm J-151326 J-150902 J-151327 J-121116 Ø8x20mm x178 J-150903 720mm J-151325 J-151329 J-121128 Ø8x120mm J-150900 J-7151338 J-150919 J-121341 Ø5x16mm J-151333...
  • Page 5 VUE EN ÉCLATÉ / EXPLODED VIEW J-151325 J-151321 J-151326 J-150932 J-151322 J-122596 J-151331 J-151326 J-151321 J-151322 J-151330 J-151325 J-151325 J-151331 J-151322 J-151321 J-151330 J-151326 J-151322 J-151330 J-150931 J-151326 J-151321 J-7151317 J-151325 J-7151317 J-7151317 J-151333 J-151333 J-151333...
  • Page 6 FONDATIONS 6339 mm 4082 mm 2800 mm 2970 mm 2800 mm 550 mm 550 mm BÉTON / Quantité totale / 550 mm CONCRETE Total quantity: 1m³ 550 mm 550 mm...
  • Page 7 PLAN 2700 2700 2870 mm 2700mm 2700mm 5770mm 7040mm...
  • Page 8 J-121116 Ø8x20mm J-121518 J-121615 Ø8 J-121116 J-150900 RESULTAT / RESULT...
  • Page 9 J-121116 Ø8x20mm J-121518 J-121615 Ø8 J-121116 J-150901 RESULTAT / RESULT...
  • Page 10 J-121116 Ø8x20mm J-121518 J-121615 Ø8 J-121116 J-150902 RESULTAT / RESULT 10 35...
  • Page 11 J-121116 Ø8x20mm J-121518 J-121615 Ø8 J-121116 J-150903 RESULTAT / RESULT...
  • Page 12 J-121116 Ø8x20mm J-121518 J-121615 Ø8 J-121116 J-151328 J-151327 RESULTAT / RESULT...
  • Page 13 J-121211 Ø8x50mm J-121518 J-121615 Ø8 J-121211 J-151329 J-7151338 RESULTAT / RESULT 1 cm...
  • Page 14 Etape 1 / Step 1 Etape 2 / Step 2 Etape 4 / Step 4 J-151321 J-151322 Etape 3 / Step 3 RESULTAT / RESULT...
  • Page 15 Etape 5 / Step 5 Etape 7 / Step 7 RESULTAT / RESULT...
  • Page 16 Etape 6 / Step 6 Etape 8 / Step 8 RESULTAT / RESULT...
  • Page 17 J-7151317 J-151333 J-121518 J-121615 Ø8 J-121116 RESULTAT / RESULT...
  • Page 18 Etape 10 / Step 10 J-121615 Ø8 J-121116 Etape 9 / Step 9 RESULTAT / RESULT...
  • Page 19 J-121518 J-121615 Ø8 J-121128 Etape 11 / Step 11 J-121128 Ø8x120mm RESULTAT / RESULT...
  • Page 20 J-121615 Ø8 J-121116 J-151331 J-151330 Etape 12 / Step 12 J-151331 RESULTAT / RESULT J-151330...
  • Page 21 J-121374 ANCRAGE / ANCHORING Foret Ø8 béton non fourni Ø8 Ø8 concrete drill bit not supplied 90mm mini...

  • Page 22: Montage / Assembly

    MONTAGE / ASSEMBLY...
  • Page 23 J-121518 J-121615 Ø8 J-121116 J-150919 Etape 13 / Step 13 2870mm RESULTAT / RESULT...
  • Page 24 J-121374 ANCRAGE / ANCHORING Foret Ø8 béton non fourni Ø8 Ø8 concrete drill bit not supplied 2870 mm 90mm mini...
  • Page 25 J-150932 J-150931 Etape 14 / Step 14 736 mm J-150932 736 mm J-150931 736 mm 736 mm RESULTAT / RESULT...
  • Page 26 J-121518 J-121615 Ø8 J-121116 J-150919 Etape 15 / Step 15 734 mm 734 mm 734 mm 734 mm 734 mm 734 mm 734 mm 734 mm 734 mm RESULTAT / RESULT...
  • Page 27 J-151326 J-151325 J-150930 Etape 16 / Step 16 RESULTAT / RESULT...
  • Page 28 Etape 17 / Step 17 J-121341 J-121616 Ø5 J-140019 J-122596 Micro perforé Vent tape Micro perforé Vent tape...
  • Page 29 J-150905 J-151332 Etape 18 / Step 18 J-151326 J-151325 RESULTAT / RESULT...
  • Page 30 Etape 19 / Step 19 RESULTAT / RESULT...
  • Page 31 J-121616 Ø5 J-121341 Etape 20 / Step 20 RESULTAT / RESULT...
  • Page 32 J-151316 Etape 21 / Step 21 J-121341 J-121616 Ø5 RESULTAT / RESULT...
  • Page 33 J-150917 J-150918 J-150907 RESULTAT / RESULT...
  • Page 34 Etape 23 / Step 23 J-150916 J-121341 J-121616 Ø5 RESULTAT / RESULT...
  • Page 35 J-122594 x286 FR : Mettre les caches écrous sur l’ensemble des écrous EN : Fix the nut covers on all the nuts RESULTAT / RESULT...
