INSTRUCTIONS FOR EXPLOITATION

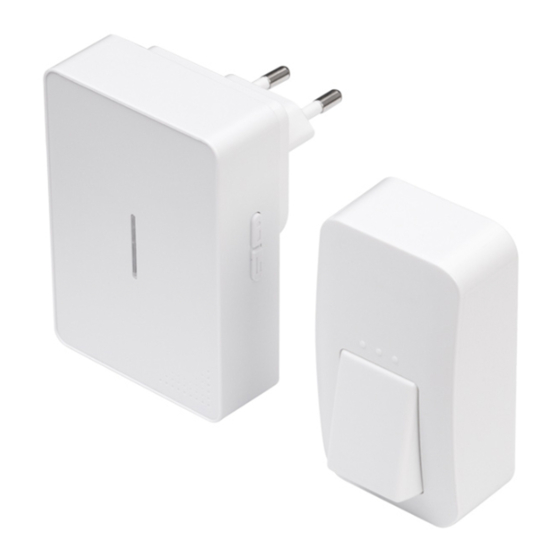

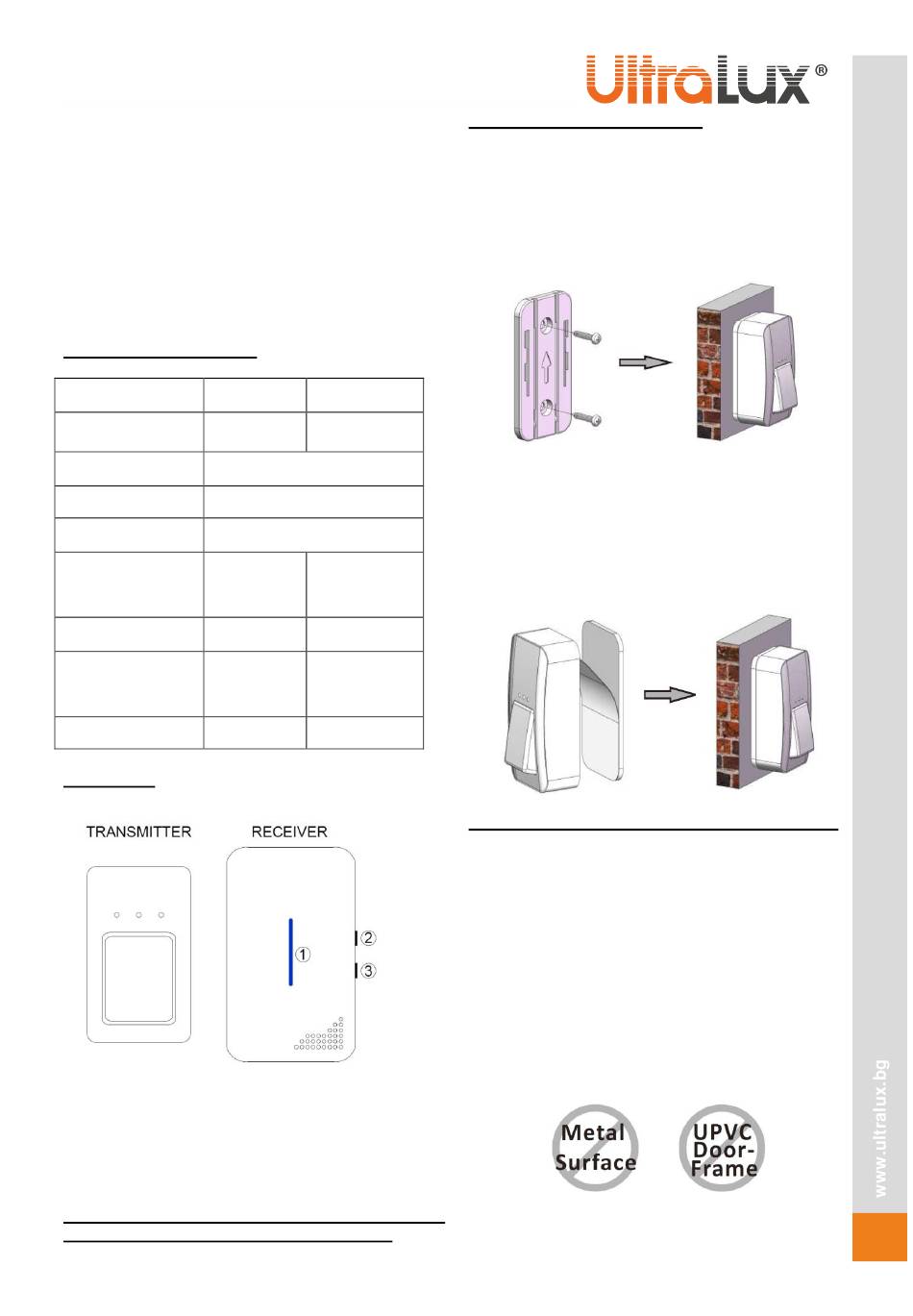

WIRELESS DOORBELL
Model: № RFWDB
By pressing the transmitter button, energy converting module
inside it convert the mechanical energy into electric energy and
then send the RF signal. When signal comes to the receiver it
starts working.

TECHNICAL SPECIFICATIONS

Specifications Receiver
220-240 V AC/
Supply Voltage
Working Temperature
Working range
RF Frequency
Power Consumption
(standby mode)
Dimensions 85/60/33 mm
38 polyphony
Ring Tones
ring tones
Sound volume 3- sound levels

DESCRIPTION

1. LED light indicator;
2. Select a ring tone button;
3. Adjust sound volume button – three levels;
The receiver will turn back to factory settings when it is re-
plugged. It has no memory.
The receiver is paired with the transmitter as factory default
and additional transmitter/ receiver can 't be paired.
Transmitter
Self-powered
50 Hz
-10°C÷+40°C
70 m (open area)
433 MHz
0.8 W -
79/44/33 mm
-
-

INSTRUCTIONS FOR INSTALLATION

Installation with screws
•
Install the transmitter's base on the wall with screws
and plugs.
•
Carefully slide the transmitter down to the stop.
Installation with adhesive patch
•
Clean the installation surface and the back of the
transmitter.
•
Stick the transmitter to the installation surface by
adhesive patch.
Note: Before installation the transmitter, please run a test:
•
Put receiver and transmitter on installation places.
•
Close all doors and windows when you test.
•
Push the transmitter. If the receiver does not sound,
please see problems and troubleshooting.
Attention:
•
Avoid to installation the Transmitter/Receiver on
directly or near metallic surface as this may reduce
the operation range.
•
When installing the transmitter onto a UPVC door
frame, always check the operating range before final
installation.
