  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read before this product is operated. 2. Retain Instructions － The safety and operating instructions should be retained for future reference. 3. Heed Warnings － All warnings on the appliance and in the operating instructions should be adhered to.

  • Page 3: Mixer Features

    • Compact design • User replaceable crossfader 2 phono, 2 line, 1 microphone input • Gain, Treble, and Bass Controls on Channels • • Powerful stereo headphone output Cue Pan Selector (Ch.1-Ch.2) • • Bright LED Output Indicators FEATURES MIXER FEATURES...

  • Page 4: Rear Panel

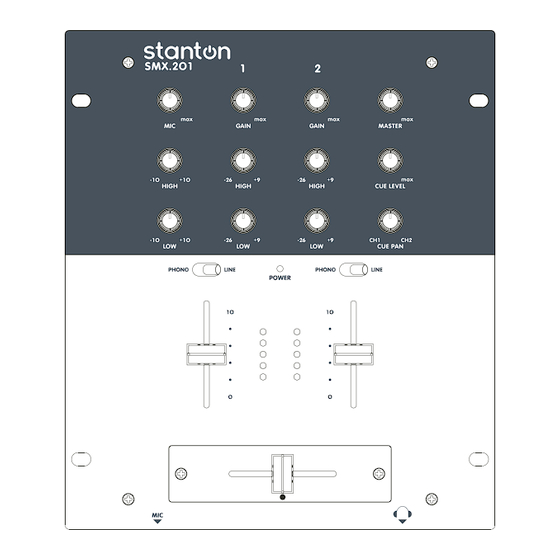

    1. Input fader - Controls individual source levels (channels) in the mix. 2. Input toggle switch - Selects which source will be active based on what you have connected to the rear panel input section (phono/line). 3. Treble and Bass EQ - Adjusts the high and low frequency levels of the input channels for good sound.

  • Page 5: Quick Setup Diagram

    QUICK SETUP DIAGRAM Study this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. Plug your mixer into AC power.

  • Page 6: Specifications

    SENSITIVITY OF INPUT (LEVEL/IMPEDANCE): LINE -14dB/47K OHM ±3dB PHONO -50dB /47K OHM -54dB /6K OHM ±3dB OUTPUT (LEVEL/IMPEDANCE): MASTER (RCA) 0dB/47K OHM PHONES (LOAD=32 OHM) MAX. OUTPUT (LOAD=47K, THD=5%) MASTER (RCA) MORE THAN 18dB (8V) PHONES (LOAD=32 OHM) CHANNEL BALANCE WITHIN 3dB FREQUENCY RESPONSE: LINE 20-20KHz...
  • Page 7 Any returns to a non-authorized dealer or to an authorized Stanton dealer not in the same country as the merchandise was intended to be sold or as set forth above will void this warranty.
  • Page 8 c u t a l o n g d o t t e d l i n e...
  • Page 9 Stanton Magnetics, Inc. 3000 SW 42nd Street Hollywood, FL 33312 U.S.A. PLACE STAMP HERE...
