Hulkman Sigma 5 User Manual

USER GUIDE

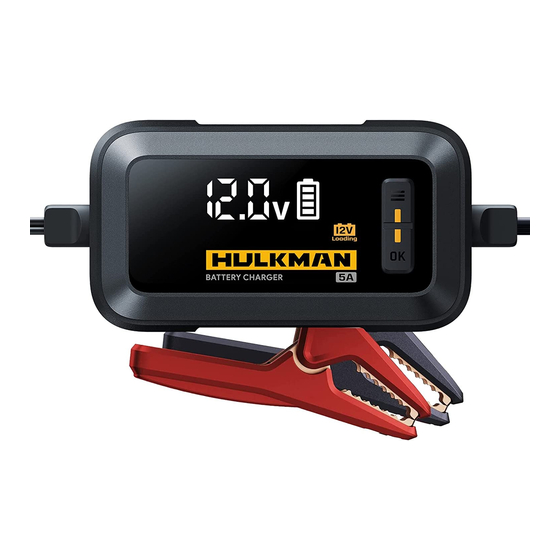

Sigma 5 Battery Charger
HOW TO USE
STEP 1
Connect the clamps/eyelets
to the charger and to your
battery.
BUTTON OPERATION
BUTTON
Menu Button
Confirm Button
ERROR INDICATIONS
ICON
1.) Charger internal temperature is too high.
2.) Charger ambient temperature is too low.
Battery voltage is too high for the selected charge mode.
Reverse Polarity
Bad Battery
STEP 1
Plug the charger into an
electrical outlet.
OPERATION
Press to cycle through "12V, 12V AGM, 12V Lithium, 6V, 6V AGM" modes.
Press & hold for 2 seconds to enter "12V Repair" mode.
Press & hold for 1 second to go back to "Standby" mode when charging.
Press & hold for 1 second to go back to "Standby" mode when
Press it to start the charging process.
REASON
STEP 3
Select the appropriate charge
mode for your battery.
SOLUTION
1.) Charger will automatically resume
function once the it's internal temperature
drops to -4°F~104°F.
2.) Charger will automatically resume
function once the it's ambient temperture
rises to -4°F~104°F.
Check the battery and confirm the appropriate charge
mode for your battery
Reverse the battery clamps/eyelets.
1.) Connect the positive (red) clamp/eyelet terminal
connector to the positive (POS,P,+) battery terminal.
2.) Connect the negative (black) clamp/eyelet terminal
connector to the negative (NEG,N,-) battery terminal.
Battery will not hold a charge. Get the battery checked
by a professional.
STEP 4
Press Confirm button or
wait 10 seconds to start the
charging process.
is flashing.
