Full hd Bullet
AI-BASED CAMERA
Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The
Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated
Advertisement
Table of Contents
Summary of Contents for OneScreen OSB2MPF4AI

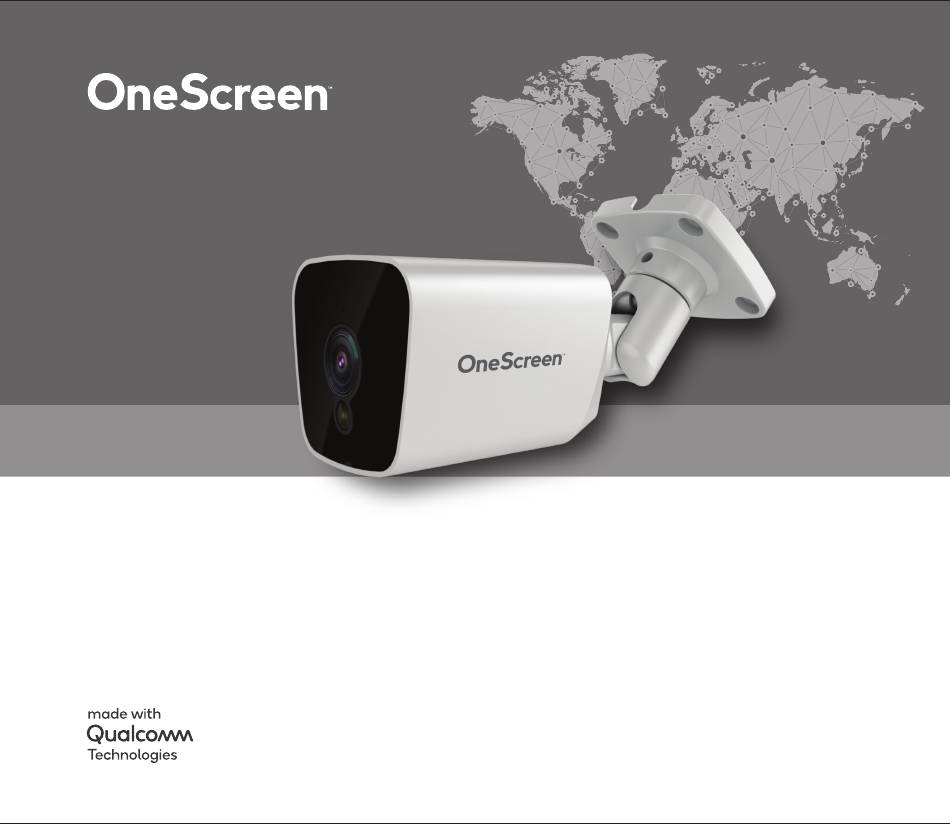

- Page 1 Full hd Bullet AI-BASED CAMERA Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated...
- Page 2 INSTALLATION GUIDE Model: OSB2MPF4AI...
-
Page 3: Product Kit
PRODUCT KIT Camera Wi-Fi Antenna Set 4 of screws Hex tool and anchors CAMERA FRONT TEMPLATE Ø 5 mm 4 Holes Full hd Bullet AI-BASED CAMERA Qualcomm products contained herein are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated Installation guide Drilling position decal... -
Page 4: Technical Specification
Optical zoom Fixed-focal Focal length OSB2MPF4AI: 4 mm Angle of view OSB2MPF4AI: 87.5° (H) - 104.9° (D) - 44.4° (V) 14°F - 140°F Operating temperature Humidity: 10% ~ 100% Dimensions (L x W x H) 6.4” x 3.2” x 2.4” (in) Weight 5.5 lbs... -
Page 5: Product Overview
PRODUCT OVERVIEW Reset Audio in Audio out 12 VDC power supply RJ45 terminal block Camera lens... - Page 6 INSTALLATION GUIDE Step 1: Apply decal on the area where the camera needs to be installed and fix the plastic anchors (figure 1). Step 2: Tighten the screws to fix the camera (figure 2).
- Page 7 INSTALLATION FOR SIGNAL CONNECTION Two options to connect devices: Use the network cable con nected from the PoE switch to the waiting RJ45 port, no need to use 12VDC (figure 1). Switch PoE RJ45...
- Page 8 ADJUSTING THE CAMERA VIEWING ANGLE 65° 130°...
-
Page 9: Accessing The Camera
ACCESSING THE CAMERA Password setting Using your web browser, access the camera's default IP: 192.168.1.168 Note: To complete the installation steps for the camera, refer to the User Manual. The system will ask you to reset the password on your initial access. When the "Administrator password change"... -
Page 10: Software Installation
SOFTWARE INSTALLATION Login screen When accessing the camera, a login window will appear. Enter your user name and password to access the camera. 1. Enter "admin" in the <User name> box. 2. Enter your chosen password in <Password> box. 3. Click User name Password... -
Page 11: Safety Information
Improper installation may cause damage to the product. Contact OneScreen customer support or authorized OneScreen agents if you experience any problems. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. - Page 12 OneScreen Address: 12335 World Trade Drive, Suite 9, San Diego, CA 92128 Website: www.onescreensolutions.com Email: support@onescreensolutions.com...
