SCS-600 Gate Timer
User's Manual
Description
The Gate Timer package detects a period of reciprocation. This package
shows the period directly without interface or computer. The photogate in this
package adopts a magnet, so it can be attached to a blackboard or laboratory
stand. Additionally, two photogates can be connected in a daisy chain method.
You can use both at the same time by connecting port A of the photogate and
port B of the other photogate.
- 1 -
Advertisement
Table of Contents
Summary of Contents for ScienceCube SCS-600
- Page 1 SCS-600 Gate Timer User’s Manual Description The Gate Timer package detects a period of reciprocation. This package shows the period directly without interface or computer. The photogate in this package adopts a magnet, so it can be attached to a blackboard or laboratory stand.

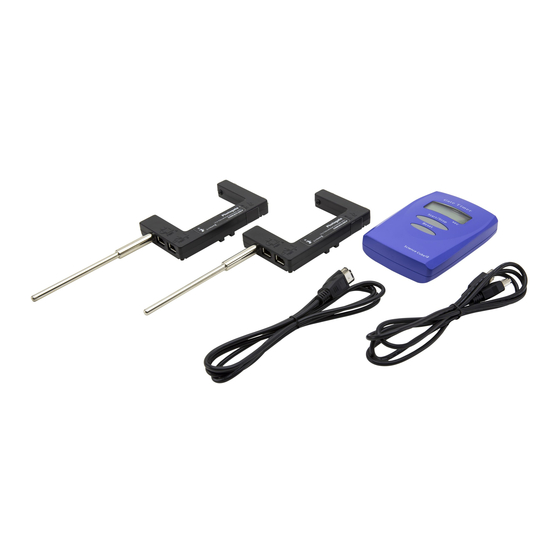

- Page 2 Some typical experiments done with the package include Newton’s Law Pendulum period Speed and acceleration Free fall motion Time record Includes the following components Gate Timer (built in battery) Photogate …………….. 2pcs Sensor Cable …………...
- Page 3 2. Automatic Operation Mode 1 1) When the photogate detects a moving object, the gate timer starts to counting. (if the timer does not work, push the button.) 2) And then, when it detects a moving object again, the gate timer stops counting the time.
- Page 4 ScienceCube are registered trademarks or trademarks of Korea Digital Co., Ltd. Other product and brand names may be trademarks or registered trademarks of their respective.
