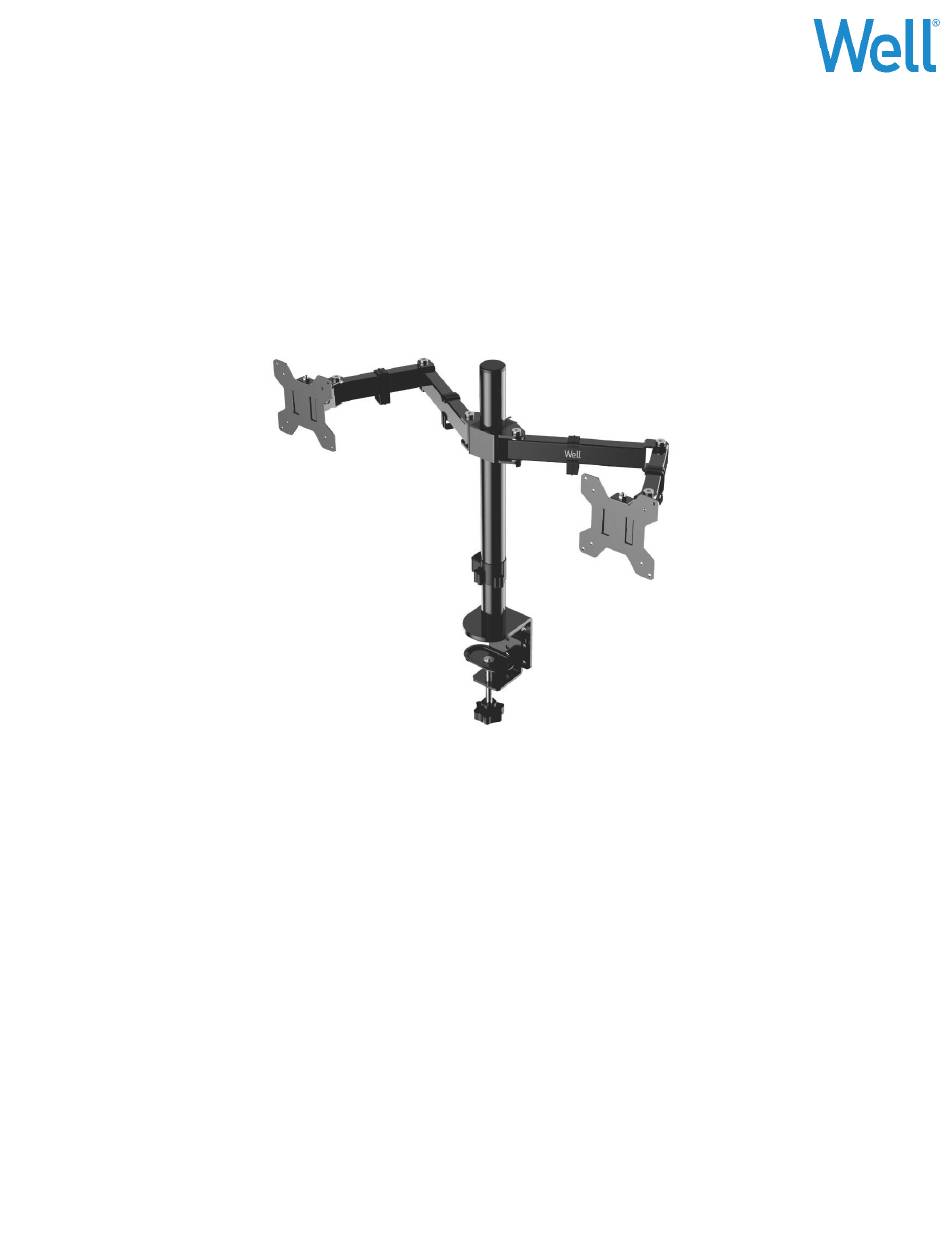

- Page 1 INSTRUCTION MANUAL MONITOR DESK MOUNT Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: TVS-MON-SWD32-WL...
-
Page 2: Unpacking Instructions
UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components we received undamaged. Do not use damaged or defective parts. Carefully read all instructions before attempting installation. - Page 3 3. Install the “c’-Clamp (b) to the pole assembly according to the thickness of the desktop. The thickness can be changed of three positions. Connect it using 2 pcs M8x12 Bolts (A), and tighten using the hex key (E). Tighten the “c’-Clamp to the desktop by twisting the plastic knob, see Figure 2. Option A: Base Install Self Drilled Hole Installation Position the Pole(a) on the mounting surface and mark the center hole.
- Page 4 Option B: Base Install Existing Hole Installation If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. 1. Remove the 3pcs M5X20 bolts at the bottom of the pole (a) with hex key, see Figure A. 2.
- Page 5 STEP 3. Attach the VESA plate to the monitor STEP 4. Slide the monitor to the head of swivel arm STEP 5. Make the necessary adjustments...
- Page 6 STEP 6. Manage the wires and store the keys on wire clip Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
