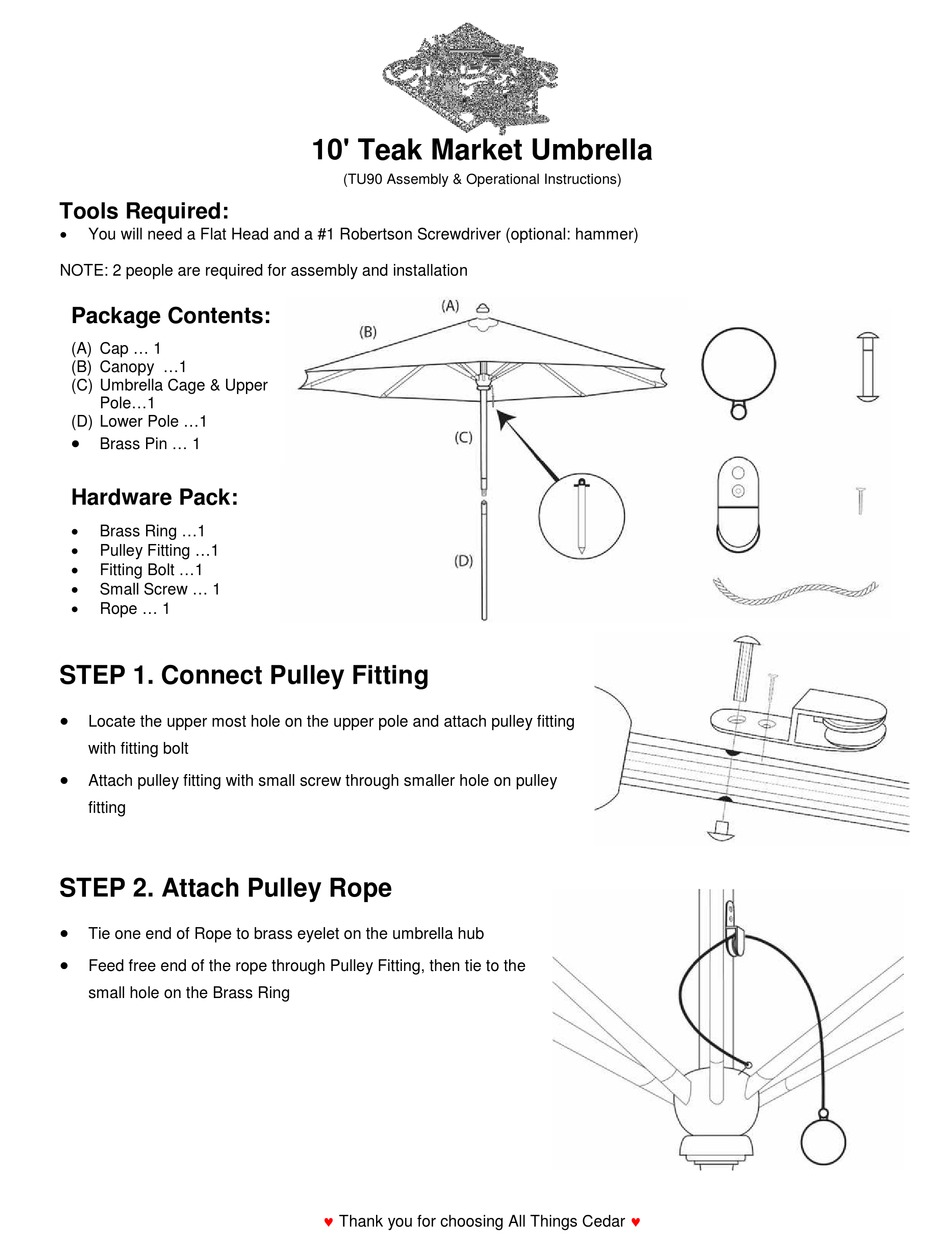

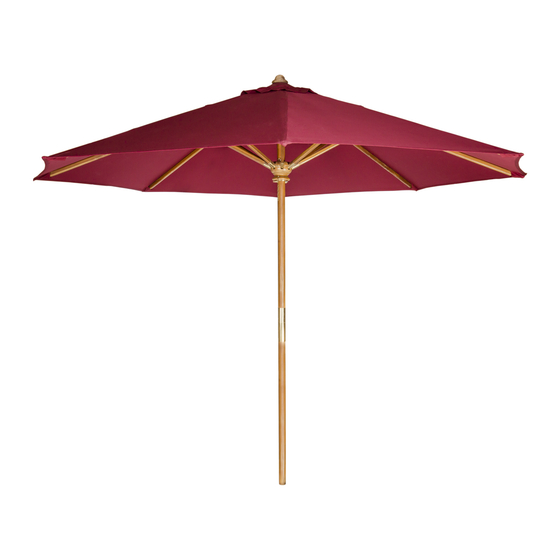

All Things Cedar 10' Teak Market Umbrella Assembly Instructions

Tools Required:


You will need a Flat Head and a #1 Robertson Screwdriver (optional: hammer)
NOTE: 2 people are required for assembly and installation

Package Contents:

(A) Cap ... 1
(B) Canopy ...1
(C) Umbrella Cage & Upper
Pole...1
(D) Lower Pole ...1

Brass Pin ... 1

Hardware Pack:


Brass Ring ...1

Pulley Fitting ...1

Fitting Bolt ...1

Small Screw ... 1

Rope ... 1

STEP 1. Connect Pulley Fitting


Locate the upper most hole on the upper pole and attach pulley fitting
with fitting bolt

Attach pulley fitting with small screw through smaller hole on pulley
fitting

STEP 2. Attach Pulley Rope


Tie one end of Rope to brass eyelet on the umbrella hub

Feed free end of the rope through Pulley Fitting, then tie to the
small hole on the Brass Ring
10' Teak Market Umbrella
(TU90 Assembly & Operational Instructions)

Thank you for choosing All Things Cedar

