Data-to-Data Installation (Included)
CAN Hi/Low Harness
Wire
Color
CAN Hi
Brown
CAN Low
White
BLUE Port on idatastart
Serial Cable
Serial cable (4-pin) plugs into the gray port of the remote starter

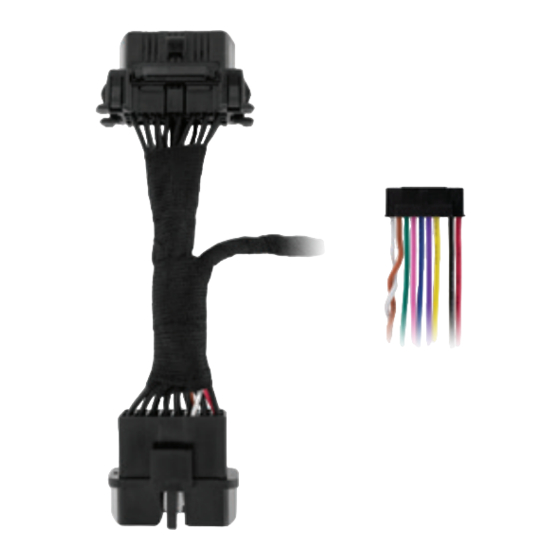

Hardwire T-Harness Installation (Sold Separately)
FT-HRN-X1-OBD
Wire
Color
Ignition
Green
POC 1
Yellow
POC 2
Purple
POC 3
Blue
PIC 1
Pink
Type
Location
Data
PIN 6 OBD Connector
Data
PIN 14 OBD Connector
Type
Input (+)
• Aux 1
• Aux 2
• Lock/Arm
• Unlock/Disarm
• Starter Kill
(can only be set as latched)
• Aux 1
• Aux 2
• Lock/Arm
• Unlock/Disarm
• Starter Kill
(can only be set as latched)
• Aux 1
• Aux 2
• Lock/Arm
• Unlock/Disarm
• Starter Kill
(can only be set as latched)
• Pre-warn
• Instant Trigger

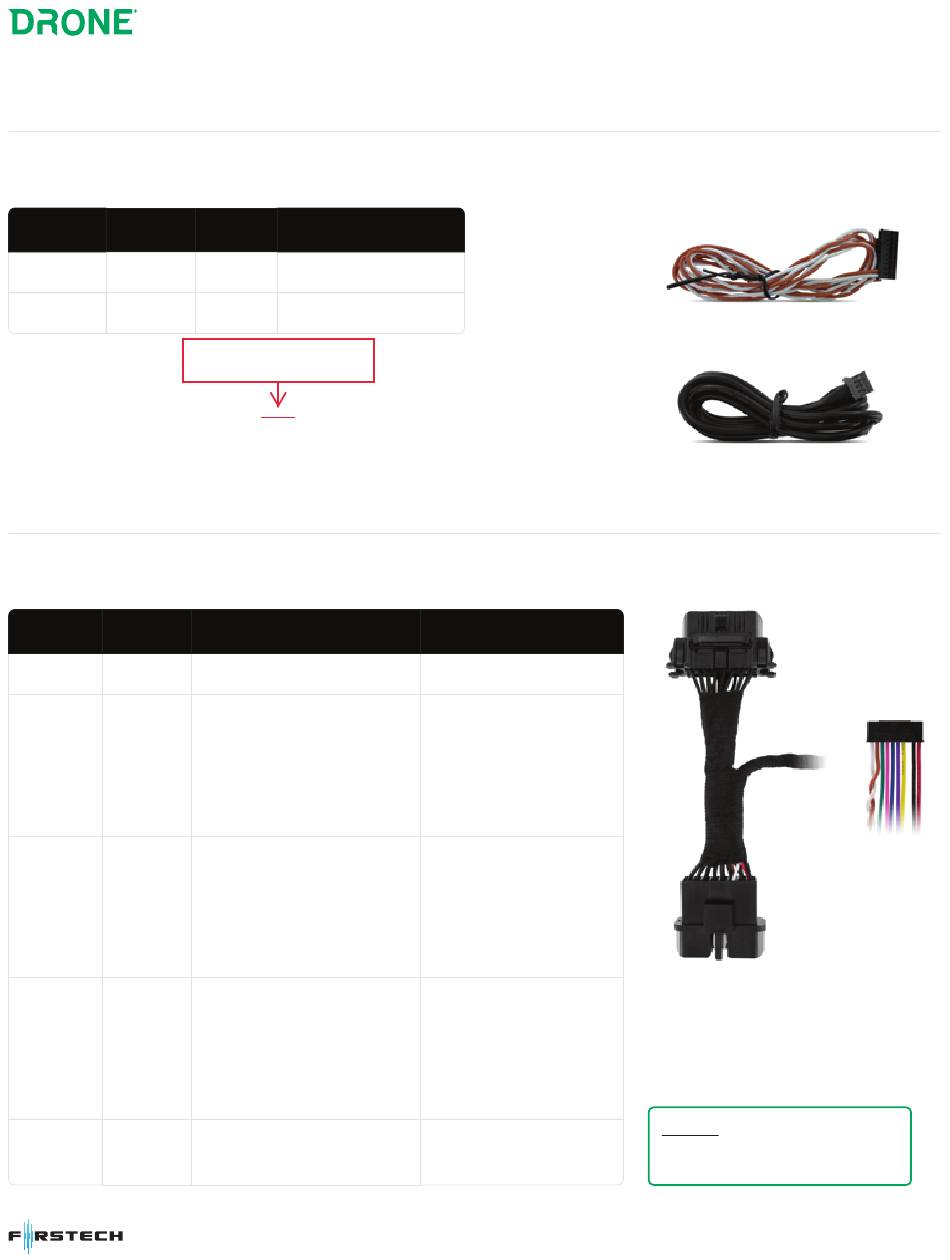

X1 MAX Installation Guide
Output Configuration
--
• Single Pulse
• Double Pulse
• Latched
• Single Pulse
• Double Pulse
• Latched
• Single Pulse
• Double Pulse
• Latched
--
1 (888) 820-3690
(optional)
Caution: Do not insert 3A fuse
when connected to a remote start
through data.
Doc #122719
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Drone X1 MAX
- Page 1 X1 MAX Installation Guide Data-to-Data Installation (Included) CAN Hi/Low Harness Wire Color Type Location CAN Hi Brown Data PIN 6 OBD Connector CAN Low White Data PIN 14 OBD Connector BLUE Port on idatastart Serial Cable Serial cable (4-pin) plugs into the gray port of the remote starter...
-
Page 2: Led Status
LED Status 1) LTE Status 2sec Network Searching 200ms 200ms 2sec Connected 200ms 200ms 200ms Communicating 125ms 2) X1 Status 1sec SIM Card Error 1sec Carrier Disconnected 1sec Server Disconnected 10sec Power Save Mode (Sleep) 100ms 100ms 3) GPS Status GPS Off GPS Searching 2sec...
