Solomon SR-073 Instruction Manual

INSTRUCTION MANUAL
SR-073 SMD REWORK STATION

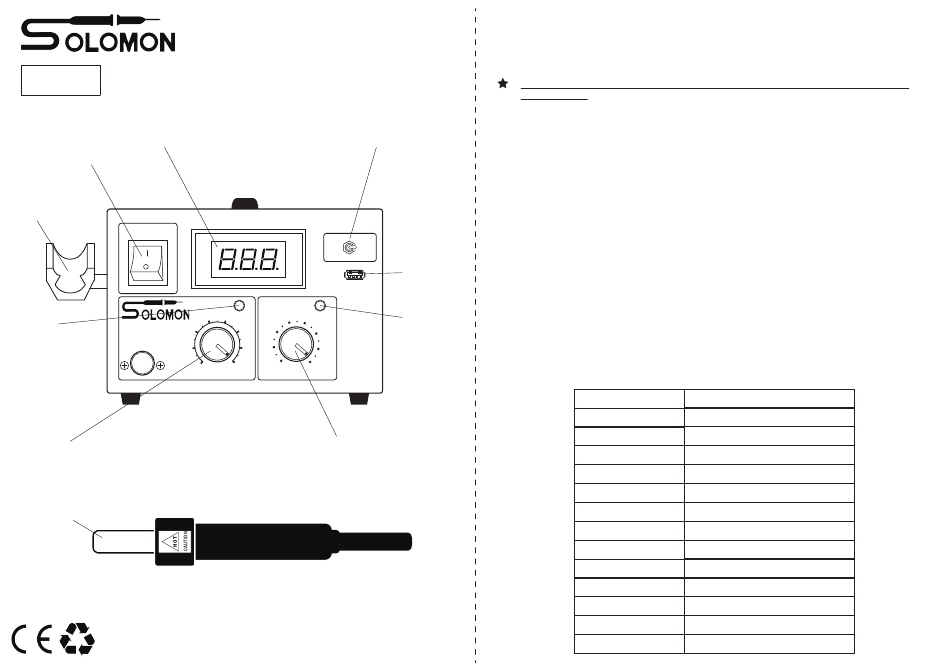

Temperature Display
Power Switch
Air Gun Stand
POWER
Air Flow
SR-073
Lamp
3
2
Air pump
Lead-free design
Air Flow Control Knob
(Refer to the Air Flow Distribution Chart)
Iron
Thank you for choosing this type of unsoldering Equipment with Hot Air. The product
is designed for soldering and unsoldering without lead. Please read the User Guide
thoroughly before use, and keep it in a safe place for future reference.
Auto(Stand by) / Manual(Working Condition)
SMD REWORK STATION
AUTO MANUAL
5V 2A
AIR
HEATER
4 5
6
7
1 8
100 ℃ 480
ESD
Volution outlet Manual / automatic
SAFE
Temperature Control Knob
(Refer to the Temperature Distribution Chart)
AIR GUN
Using the machine, the following basic measures should be abide, avoid electric shock or
cause injury or damage caused by fires.
1. In order to ensure the personal safety, when the machine work is completed, please unplug
the power cord.
2. To ensure personal safty, must use the orginal approval or recommendation of the parts,
otherwise it will lead to serious consequences.
3. Machine failure must be by professionals or the company designated personnel for repair.
4. This product is grounded three-wire plug, must be inserted within the threehole grounded outlet,
do not change the plugs or use ungrounded three adapter made it bad grounded.
5. When the hot air gun or soldering station is turned on, its temperature all has the possibility to
amount to above 400 degrees. Do not use it near flammable gas, objects. Tube and the heat
emitted very hot, can burn the body, don not bouch the hot pipe and direct injection to heat the
human body.
6. Hot air gun is turned on, do not leave the jobs site.
7. Do not install nozzle when the hot air gun is turned on. It must be installed after the heating pipe
USB Output
and the gun are cooling down.
8. Please keep inlet and outlet air flow, it can not be clogging.
9. After used, remember cooling the station, the handle should be released into the handle frame,
Heater Lamp
then shut down the machine to sleep.
10. The machine welding will take smoke, please do proper ventilation.

Specification

Warning!

Model SR-073
Input voltage AC 220V / AC 110V
Power
≦550W
Heater type Skeleton
Airflow type Diaphragm pump
Airflow value ≦24L / min
Temperature range 100℃ ~ 450℃
±
Temperature stability
Shows type LED / display
Handle line
≧100cm
Noise
≦45dB
Work Environment 0 ~ 40℃
Storage Environment -20 ~ 80℃
Storage humidity 35% ~ 45%
1℃
