TSUNAMI-500 OPERATING AND MAINTENANCE
1) Installation Setup
A) Power source:
The T-500 requires a Plug-in style 220V 50 AMP power source.
(An alternate Hardwired style power source is also available.)

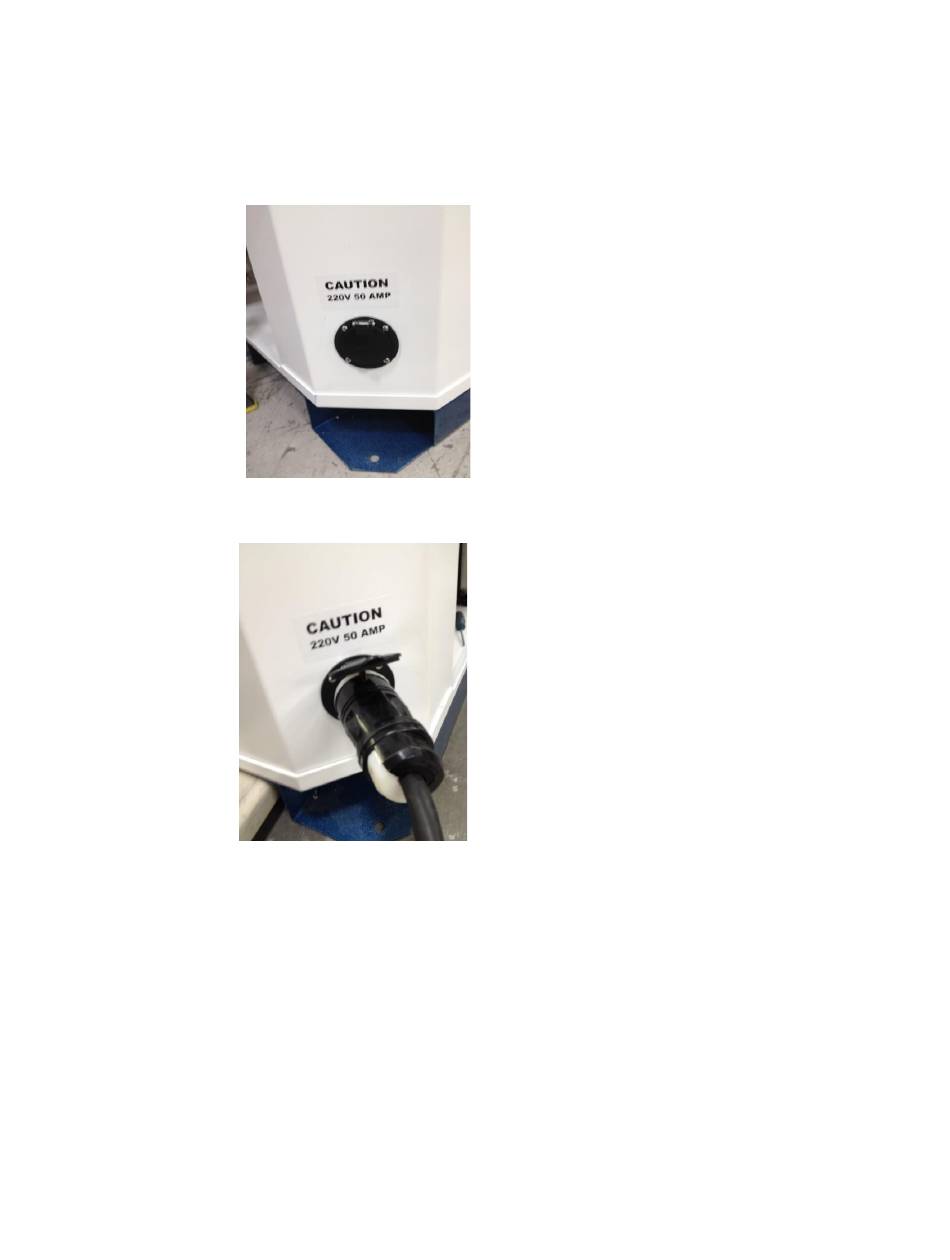

B) Power hookup:
The Plug-in style power cord attaches as shown. Lift the cover plate and insert the plug.
C) Power On & Off:
In the lower-level section, the Power On & Power Off switch is located on the right side
of the power control box behind the filter door.
Move the switch to the "POWER ON" position.
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSUNAMI-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tsunami TSUNAMI-500

  • Page 1 TSUNAMI-500 OPERATING AND MAINTENANCE 1) Installation Setup A) Power source: The T-500 requires a Plug-in style 220V 50 AMP power source. (An alternate Hardwired style power source is also available.) B) Power hookup: The Plug-in style power cord attaches as shown. Lift the cover plate and insert the plug.
  • Page 2 TSUNAMI-500 OPERATING AND MAINTENANCE 2) Simple Maintenance and Cleaning: All filters should be checked at regular intervals prior to operation. CAUTION: POWER DOWN THE T-500 BEFORE REMOVING ANY FILTERS. (WATER CARBON FILTERS, AIR FILTERS AND OR UV FILTER LIGHTS) A) Water Carbon and Spun Filter: Remove and replace the water and spun filter after 3-6 months amount of water is produced.
  • Page 3 TSUNAMI-500 OPERATING AND MAINTENANCE Both filters can be found in the water catchment for shipping purposes. B) UV Filter Lights (2 Required) Remove and replace the UV Filter Lights once a year. Carefully turn and slide the rubber cover from the end of the light filter housing.
  • Page 4 TSUNAMI-500 OPERATING AND MAINTENANCE Once the plugs have been disconnected remove the light filter from the outer case. Page 4 of 9...
  • Page 5 TSUNAMI-500 OPERATING AND MAINTENANCE Page 5 of 9...
  • Page 6 TSUNAMI-500 OPERATING AND MAINTENANCE Page 6 of 9...
  • Page 7 TSUNAMI-500 OPERATING AND MAINTENANCE C) Air Filters: There are 2 types of air filters on the T-500. There are 4 air filter frames in the bottom section. The air filter frames on the bottom section have paper filters. The paper air filters on the T-500 should be checked regularly for dirt and dust accumulation depending on air quality and the surrounding environment.
  • Page 8 TSUNAMI-500 OPERATING AND MAINTENANCE Re-install the upper fiber filter frames by sliding the door hinges down on to the hinge pins and turn the latch to secure the door. 3) Water discharge hookup: Attach one end of a hose to the discharge hookup on the T-500 and the other end to a collection bladder or to a collection container preferred by the user.
  • Page 9 TSUNAMI-500 OPERATING AND MAINTENANCE 6) Additional Support: Tsunami Products, Inc. P.O. Box 566 1711 N. Madson St. Liberty Lake, WA. 99019, USA On-line Support Phone: +1-800-680-4039 Email: support@tsunamiproducts.com Page 9 of 9...
