FX LOOPER + EFFECTS CONTROLLER

Advertisement

loading

Summary of Contents for EDFM FX LOOPER

  • Page 1 FX LOOPER + EFFECTS CONTROLLER...

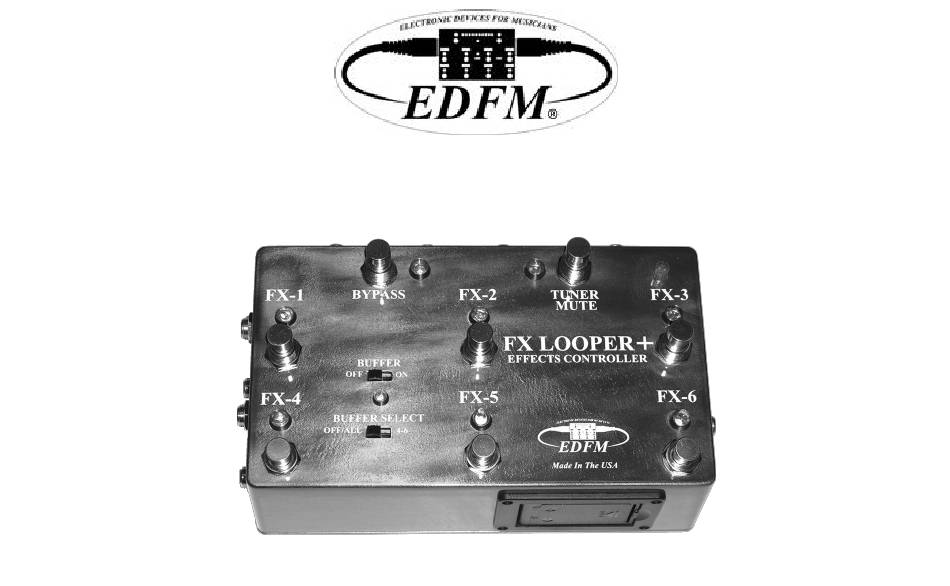

  • Page 2 FX LOOPER + EFFECTS CONTROLLER USER Manual FX LOOPER + EFFECTS CONTROLLER Features: 6 banks with heavy duty foot switch and unique color status indicators. True BYPASS heavy duty foot switch (click type) with LED indicator. MUTE/TUNER heavy duty foot switch (click type) with LED indicator for silent tuning.

  • Page 3: Top Side

    CONTROLS & JACKS LAYOUT TOP SIDE 1. BANKS (6) 1. Each of the 6 banks consist of a heavy duty foot switch, LED on/off indicator. 1. FX-1 through FX-6 Effects Foot Switch's - Heavy duty (click) Switches. Engages/disengages the effects that are connected to their corresponding send and return jacks.

  • Page 4: Back Side

    BACK SIDE A total of 6 individual effects can be plugged into the FX Looper +. You can also combine multiple effects into one channel. Jacks for channel 1 - 5 are located on the back side with 6 located on the left side.

  • Page 5: Right Side

    RIGHT SIDE 9. INPUT jack - Connect any 1/4" instrument or other equipment here. DO NOT INCERT A STEREO PLUG! 10. PWR power adapter jack - Plug a +9V DC female negative tip, 5.5mm O.D. x 2.1mm I.D. barrel style DC power supply or wall-wart adapter (Not Included).

  • Page 6: Front Side

    Your EDFM FX LOOPER + Effect Controller pedal comes with a 1 year limited warranty on parts and workmanship. During the warranty period EDFM will repair or replace, at our option, defective parts or pedal free of charge, and return them to the owner.
